General

Structure

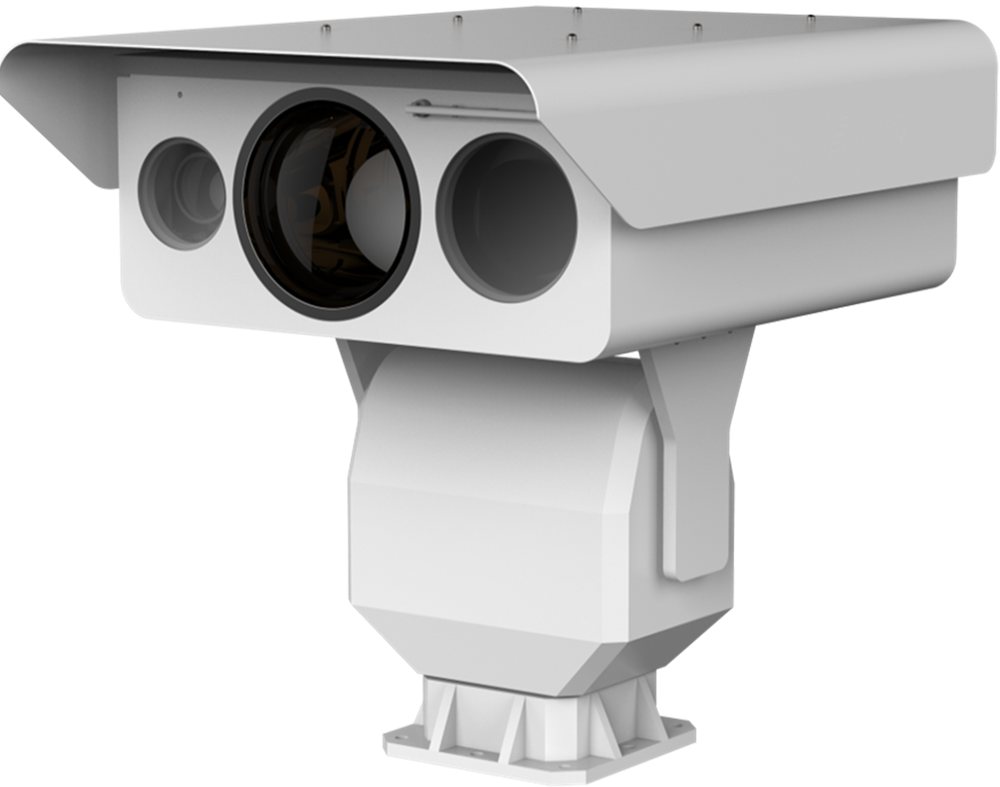

Multi-sensor PTZ camera

Thermal

Detector Type

Vanadium oxide uncooled focal plane detector

Effective Pixels

640x512

Pixel Pitch

17μm

Spectral Range

8μm–14μm

Thermal Sensitivity (NETD)

≤40mK

Focal Length

100mm; 20mm–100mm; 30mm–150mm; 38mm–190mm

Field of View

100mm: horizontal: 6.2°; vertical: 5.0°

20mm–100mm: horizontal: 31.6°–6.2°; vertical: 25.1°–5.0°30mm–150mm: horizontal: 20.6°–4.2°; vertical: 16.5°–3.3°38mm–190mm: horizontal: 16.7°–3.5°; vertical: 12.5°–2.6°

Focus Mode

Auto; manual

Aperture

100mm: F1.0
20mm–100mm: F1.0
30mm–150mm: F1.2
38mm–190mm: F1.2

Detection Distance

100mm: vehicle: 7843m (2574ft); human: 2941m (9649ft)
20mm–100mm: vehicle: 7843m (2574ft); human: 2941m (9649ft)
30mm–150mm: vehicle: 11765m (38599ft); human: 4412m (14475ft)
38mm–190mm: vehicle: 14902m (2552ft); human: 5588m (18333ft)

Recognition Distance

100mm: vehicle: 1961m (6434ft); human: 756m (2480ft)
20mm–100mm: vehicle: 1961m (6434ft); human: 756m (2480ft)
30mm–150mm: vehicle: 2941m (9649ft); human: 1134m (14475ft)
38mm–190mm: vehicle: 3725m (12221ft); human: 1437m (4715ft)

Identification Distance

100mm: vehicle: 980m (3215ft); human: 378m (1240ft)
20mm–100mm: vehicle: 980m (3215ft); human: 378m (1240ft)
30mm–150mm: vehicle: 1471m (4826ft); human: 567m (1860ft)
38mm–190mm: vehicle: 1863m (6112ft); human: 718m (2356ft)

Digital Detail Enhancement (DDE)

Yes

AGC

Auto; manual

Noise Reduction

2D NR; 3D NR

Color Palettes

18 color modes selectable such as Whitehot/Blackhot/Ironrow/Icefire.

Visible

Image Sensor

1/1.9 inch CMOS

Effective Pixels

1920x1080

Max. Resolution

2MP

Horizontal Definition

≥1100TVL

Min. Illumination

6.25mm–300mm: color: 0.001Lux@F1.4; black & white: 0.0001Lux@F1.4

21mm–500mm; 12.5mm–775mm; 16.7mm–1000mm: color: 0.002Lux @ (F1.5, AGC ON); black & white: 0.0005Lux @(F1.5, AGC ON)

AGC

Auto; manual

Noise Reduction

2D NR; 3D NR

S/N Ratio

>55dB

White Balance

Auto/manual/indoor/outdoor/tracking/outdoor auto/sodium lamp auto/sodium lamp

Electronic Defog

Yes

Electronic Image Stabilization (EIS)

Yes

Optical Defog

6.25mm–300mm: None

21mm–500mm: None

12.5mm–775mm: None

16.7mm–1000mm: Yes

Electronic Shutter Speed

1/1s–1/100000s (auto or manual)

BLC

Yes

WDR

Yes

HLC

Yes

Digital Zoom

6.25mm–300mm: 16×

21mm–500mm: None

12.5mm–775mm: None

16.7mm–1000mm: None

Day/Night

Auto (ICR); color/B/W

Focus Mode

Auto; semi-auto; manual

Focal Length

6.25mm–300mm (thermal lens: 100mm);
21mm-500mm (thermal lens: 20mm–100mm);
12.5mm-775mm (thermal lens: 30mm–150mm);
16.7mm-1000mm (thermal lens: 38mm–190mm)

Field of View

6.25mm–300mm: horizontal: 61.93°–1.61°
21mm-500mm: horizontal: 23.5°–1.0°; vertical: 17.6°–0.8°
12.5mm-775mm: horizontal: 31.29°–0.32°; vertical: 19.36°–0.20°
16.7mm-1000mm: horizontal: 20.51°–0.22°; vertical: 15.54°–0.17°

Close Focus Distance

6.25mm–300mm: 0.01m–1.5m
21mm-500mm: 1m–10m
12.5mm-775mm: 1m–10m
16.7mm-1000mm: 1m–10m

Optical Zoom

6.25mm–300mm: 48×
21mm-500mm: 24×
12.5mm-775mm: 62x
16.7mm-1000mm: 60×

Aperture

6.25mm–300mm: F1.4–F4.5
21mm-500mm: F3.9
12.5mm-775mm: F3.5
16.7mm-1000mm: F3.5

Laser Illumination

Power

10W

Wave Length

808±5nm

Working Distance

≥1000m ( ≥3280.84ft )

Angle

1°–30° adjustable

Zoom Speed

< 4s (Wide–Tele)

Brightness Adjustment

Auto; manual

Audio and Video

Video Compression

H.265; H.264M; H.264H; H.264B; MJEPG

Resolution

Thermal:
Main stream(1280×1024, 1280×720, 640×512); (1280x1024 by default); sub stream(640×512, 320×256)(640×512 by default)
Visible:
Main stream (1920×1080, 1280×720, 704×576) (1920×1080 by default); sub stream (704×576, 352×288) (704×576 by default)

Video Frame Rate

Thermal:
50Hz:
Main stream (1280×1024@25fps/1280×960@25fps/1280×720@25fps/400x300@25fps), sub stream (640×512@25fps/640×480@25fps/400x300@25fps)
60Hz:
Main stream (1280×1024@30fps/1280×960@30fps/1280×720@30fps/400x300@30fps), sub stream (640×512@30fps/640×480@30fps/400x300@30fps)
Visible:
50Hz:
Main stream (1920×1080@25fps/1280×720@25fps/704×576@25fps), sub stream (704×576@25fps/352×288@25fps)
60Hz:
Main stream (1920×1080@30fps/1280×720@30fps/704×480@30fps), sub stream (704×480@30fps/352×240@30fps)

Audio Compression

G.711a; G.711mu; AAC; PCM

Image Encoding Format

JPEG

PTZ

Pan/Tilt Range

Pan: 0°–360° endless;

Manual Control Speed

Pan: 0.01°–30°/s; Tilt: 0.01°–12°/s

Preset Speed

Pan: 0.01°–30°/s; Tilt: 0.01°–12°/s

Preset

300

PTZ Mode

5 Auto Scan, 8 Tour, 5 Pattern, Auto Pan

Speed Setup

Human-oriented focal length/ speed adaptation

Power Up Action

Auto restore to previous PTZ and lens status after power failure

Idle Motion

Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period

Protocol

DH-SD, Pelco-P/D (Auto recognition)

General Function

Two-way Talk

Yes

Network Protocol

HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP

Region of Interest (ROI)

Yes

Edge Storage

FTP; Micro SD card (256G, hot plug)

Interoperability

ONVIF; GB/T28181; CGI; PSIA; SDK

Browser

IE: IE8 and the later, and explorer with IE core
Google: 42 and the earlier
Firefox: 42 and the earlier
Safari: 10 and the earlier

User/Host

20 channels at most (the total bandwidth 64M)

Security

Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access

User Management

Support 20 users at most and users are classified as two groups--administrator group and user group.

Malfunction Detection

Network disconnection; IP addresses conflict; SD card error (status or storage space);

Smart Event

General IVS Analytics

Tripwire/intrusion

Professional and Intelligent

Fire Detection

Yes

Cold/Hot Spot Trace

Auto tracking of the hottest spot and the coldest spot in the thermal image

Auto Tracking

Auto tracking of the hottest spot and the coldest spot in the thermal image

Port

Network

1 10M/100M Ethernet port (RJ-45)

Alarm Input

2 channels

Alarm Output

1 channels

Audio Input

1 channel

Audio Output

1 channel

RS-485

1 channel

Power

Power Supply

100–300V AC and power adapter provided

Power Consumption

<100W (normal power consumption)
<260W (with heater on) (maximum power consumption)

Environment

Operating Temperature

-40°C to +70°C (-40°F to 158°F)

Operating Humidity

≤95%

Self-Adaptive

Auto heating to protect the chip under the cold environment

Physical Characteristics

Protection Grade

IP66, anti-surge 6KV, anti-elctrostatic 8KV (touched by objects), anti-elctrostatic 15KV (air)

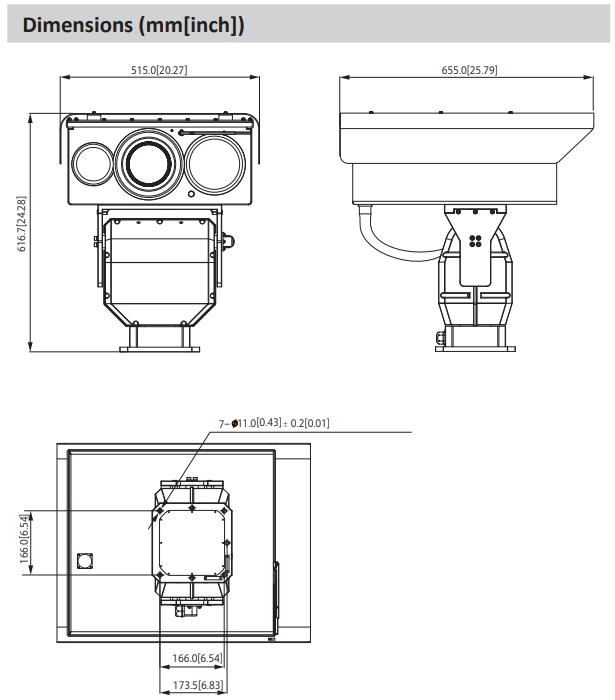

Dimensions

655mmx515mmx617mm ( 25.78"x20.28"x24.29")

Packaging Dimensions

883mmx685mmx898mm ( 34.76"x26.97"x35.35")

Net Weight

≤75kg ( ≤165.35lb )

Gross Weight

≤85kg ( ≤187.39lb )

Power Adaptor

Contained

Lens

Contained

Certification

Certifications

CE (EN 60950:2000); FCC (FCC Part 15 SubpartB )
