TPC-ACPT8620B-B - DAHUA DH-TPC-ACPT8620B-B Thermal Network Anti-corrosion Hybrid PTZ Camera DH-TPC-ACPT8620BP-B Powerful optical zoom lens Anti-corrosion,NEMA 4X, IP66 fire detection & alarm DH-TPC-ACPT8620BN-B Without logo

In stock
SKU
TPC-ACPT8620B-B
$140,726.00

TPC-ACPT8620B-B

Thermal Network Anti-corrosion Hybrid PTZ Camera

> 640x512 VOx uncooled thermal sensor technology
> Athermalized Lens(thermal), Focus-free
> 1/1.9” 2Megapixel progressive scan Sony CMOS
> Powerful optical zoom lens(Thermal&Visible)
> Support fire detection & alarm
> Max 12°/s pan speed, 360° endless pan rotation
> Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
> 2/2 alarm in/out
> Micro SD memory, 256GB
> Anti-corrosion/NEMA 4X, IP66

> without Logo,English firmware
> 100% original products manufactured by DAHUA

Special Note:
Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee

TPC-ACPT8620B-B - DAHUA DH-TPC-ACPT8620B-B Thermal Network Anti-corrosion Hybrid PTZ Camera DH-TPC-ACPT8620BP-B Powerful optical zoom lens Anti-corrosion,NEMA 4X, IP66 fire detection & alarm DH-TPC-ACPT8620BN-B Without logo

TPC-ACPT8620B-B

Thermal Network Anti-corrosion Hybrid PTZ Camera

> 640x512 VOx uncooled thermal sensor technology
> Athermalized Lens(thermal), Focus-free
> 1/1.9” 2Megapixel progressive scan Sony CMOS
> Powerful optical zoom lens(Thermal&Visible)
> Support fire detection & alarm
> Max 12°/s pan speed, 360° endless pan rotation
> Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
> 2/2 alarm in/out
> Micro SD memory, 256GB
> Anti-corrosion/NEMA 4X, IP66

> without Logo,English firmware
> 100% original products manufactured by DAHUA

TPC-ACPT8620B-B - DAHUA DH-TPC-ACPT8620B-B Thermal Network Anti-corrosion Hybrid PTZ Camera DH-TPC-ACPT8620BP-B Powerful optical zoom lens Anti-corrosion,NEMA 4X, IP66 fire detection & alarm DH-TPC-ACPT8620BN-B Without logo OVERVIEW

Featuring a dual lens Pan and Tilt camera, this series provides an all-in-one solution that is especially beneficial for long distance video surveillance in outdoor applications. Together with Dahua Thermal and Starlight technology, the camera’s long range capabilities are able to be utilized even at night. The series combines one thermal camera for monitoring in total darkness and one camera with Starlight functionality and a motorized lens for confirming details up close.

Network Positioning SystemEntrance_Exit_Control_For_Vehicles_outline

icctvzone Thermal Cameras

TPC-ACPT8620B-B - DAHUA DH-TPC-ACPT8620B-B Thermal Network Anti-corrosion Hybrid PTZ Camera DH-TPC-ACPT8620BP-B Powerful optical zoom lens Anti-corrosion,NEMA 4X, IP66 fire detection & alarm DH-TPC-ACPT8620BN-B Without logo FUNCTIONS

Uncooled Vox Technology

Dahua thermal cameras use uncooled Vox sensor technology. Their small size and better performance make them a cost-effective solution for thermal security.

High Sensitivity

High thermal sensitivity (<40mK) allows cameras to capture more image details and temperature difference information.

Fire Detection & Alarm

With built-in fire detection functionality, the camera has the ability to detect fires from long range. Because thermal cameras are sensitive to temperature, they provide higher fire detection accuracy than standard cameras, making them particularly fit for applications such as forest fire prevention.

Intelligent Video System (IVS)

IVS is a built-in video analytics algorithm that delivers intelligent functions to monitor a scene for tripwire violations, intrusion detection, and abandoned or missing objects. A camera with IVS quickly and accurately responds to monitoring events in a specific area.

Environmental

With a temperature range of -40 °C to +70 °C, the camera is designed for extreme temperature environments. Subjected and certified to rigorous dust and water immersion tests, the IP66 rating makes it suitable for demanding outdoor applications. For enviorments with rain, sleet, snow and fog, an integrated wiper(optional) provides users with clear visibility at all times.

Protection

The camera Supporting wide range voltage input(100–300V AC), suitable for the most unstable conditions for outdoor applications. Its 6 kV lightning rating provides effective protection for both the camera and its structure against lightning.

TPC-ACPT8620B-B - DAHUA DH-TPC-ACPT8620B-B Thermal Network Anti-corrosion Hybrid PTZ Camera DH-TPC-ACPT8620BP-B Powerful optical zoom lens Anti-corrosion,NEMA 4X, IP66 fire detection & alarm DH-TPC-ACPT8620BN-B Without logo Picture

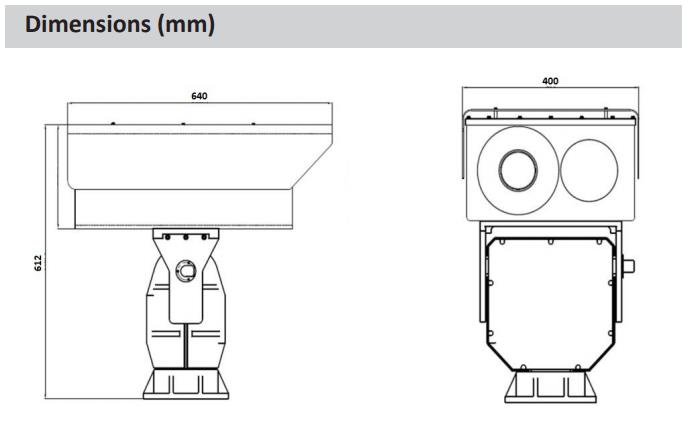

TPC-ACPT8620B-B - DAHUA DH-TPC-ACPT8620B-B Thermal Network Anti-corrosion Hybrid PTZ Camera DH-TPC-ACPT8620BP-B Powerful optical zoom lens Anti-corrosion,NEMA 4X, IP66 fire detection & alarm DH-TPC-ACPT8620BN-B Without logo Dimension



TPC-ACPT8620B-B - DAHUA DH-TPC-ACPT8620B-B Thermal Network Anti-corrosion Hybrid PTZ Camera DH-TPC-ACPT8620BP-B Powerful optical zoom lens Anti-corrosion,NEMA 4X, IP66 fire detection & alarm DH-TPC-ACPT8620BN-B Without logo

Installation



TPC-ACPT8620B-B - DAHUA DH-TPC-ACPT8620B-B Thermal Network Anti-corrosion Hybrid PTZ Camera DH-TPC-ACPT8620BP-B Powerful optical zoom lens Anti-corrosion,NEMA 4X, IP66 fire detection & alarm DH-TPC-ACPT8620BN-B Without logo Specification



Technical Specifications

*******

Thermal Camera

Image Sensor

Uncooled VOx Microbolometer

Effective Pixels

640(H)x512(V)

Pixel Size

17um

Thermal Sensitivity(NETD)

<40mK@f/1.0

Spectral Range

7~14um

Image Setting

Brightness/Sharpness/ROI/AGC/FFC/3D DNR

Color Palettes

14(Whitehot/Blackhot/Ironrow/Icefire/

Fusion/Rainbow/Globow/Iconbow1/

Iconbow2 .etc)

Thermal Lens

Lens Type

Motorized

Focus Control

Auto / Manual

Focal Length

20 ~ 100mm

30 ~ 150mm

Angle of View

H:31.6° ~ 6.2°, V:25.1° ~ 5°

H:21.0° ~ 4.1°, V:16.8° ~ 3.3°

Effective Distance①

Man(1.8m*0.5m)

D:3000m

R:750m

I :380m

D:4500m

R:1150m

I :570m

Effective Distance

Vehicle(2.3m*2.3m)

D:8800m

R:2300m

I :1200m

D:13200m

R:3500m

I :1800m

Visible Camera

Image Sensor

1/1.9" Sony CMOS

Effective Pixels

1944(H)x1092(V)

Electronic Shutter Speed

1/1 ~ 1/30,000s

Min. Illumination

0.002Lux@F1.5(Color), 0.0005Lux@F1.5(B/W)

S/N Ratio

More than 55dB

IR Distance

NA

IR On/Off Control

NA

IR LEDs

NA

Visible Lens

Focal Length

15.6 ~ 500mm

12.5 ~ 775mm

Max Aperture

F3.9

F3.8

Angle of View

H:27.5° ~ 0.9°

H:28.8° ~ 0.5°

Optical Zoom

32X

62X

Focus Control

Auto / Manual

Close Focus Distance

100mm ~ 1000mm (0.33ft ~ 3.28ft)

PTZ

Pan/Tilt Range

Pan: 0° ~ 360° endless;Tilt: -60° ~ 45°(-60° ~ 60° optional)

Manual Control Speed

Pan: 0.01° ~12° /s; Tilt: 0.01° ~9° /s

Preset Speed

Pan: 0.01° ~12° /s ;Tilt: 0.01° ~9° /s

Preset

300

PTZ Mode

5 Auto Scan, 8 Tour, 5 Pattern, Auto Pan

Speed Setup

Human-oriented focal length/ speed adaptation

Power Up Action

Auto restore to previous PTZ and lens status

after power failure

Idle Motion

Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period

Protocol

DH-SD, Pelco-P/D (Auto recognition)

Video

Compression

H.264 / MJPEG

Frame Rate

Main Stream:

Thermal: 1280x1024(default) / 720P @1~25/30fps

Visible: 1080P(default) /720P @1~25/30fps

Sub Stream:

Thermal: 640x512(default) / 320x256 @1~25/30fps

Visible: CIF(default) / D1 @1~25/30fps

Bit Rate Control

CBR / VBR

Bit Rate

H.264: 640 ~8192Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / WDR

White Balance

Auto / ATW / Indoor / Outdoor / Manual

Noise Reduction

3D DNR

Motion Detetion

Off / On (4 zone, Rectangle)

Region of Interest

Off / On (4 zone)

Electronic Image Stabilization

(EIS)

NA

Defog

Off / On

Digital Zoom

24x

Flip

180°

Mirror

Off / On

Privacy Masking

Off / On (4 area, Rectangle)

Audio

Compression

G.711A / G.711Mu / AAC

Intelligence

IVS

Tripwire, Intrusion, Object Abandoned/Missing

Advanced Intelligent Functions

Fire detection & alarm

Tracking Trigger Mode

NA

Tracking Trigger Event

NA

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ONVIF

Interoperability

ONVIF Profile S&G, PSIA, CGI

Streaming Method

Unicast / Multicast

Max. User Access

10 Users / 20 Users

Edge Storage

Micro SD (256GB)

Memory status display (Normal / Error / Active / Formatting / Lock),

NAS (Network Attached Storage), Local PC for instant recording

Web Viewer

Management Software

Smart PSS, DSS

Smart Phone

Android, Ios

Certifications

Certification

CE (EN 60950:2000), FCC (FCC Part 15 SubpartB ), NEMA 4X

Interface

Video Interface

1.0Vp-p/75Ω, PAL / NTSC (HDCVI Optional)

Audio Interface

Input/Output 1 Input / 1 Output

RS485

Support

Alarm

2/2 In/Out

Electrical

Power Supply

100 ~ 300V AC

Power Consumption

100W, Max. 130W (Heater on)

Environmental

Operating Condition

-35°C ~ +65°C (-31°F ~ +149°F) / (-40°C ~ +70°C optional) / Less than 95% RH

* Start up should be done at above -40°C (-40°F)

Strorage Conditions

-40°C ~ +70°C (-40°F ~ +158°F) / Less than 95% RH

Ingress Protection

IP66

Construction

Casing

Metal

Dimensions

640mm x 400mm x 612mm (25.2"x 15.7" x 24.1")

Net Weight

50Kg (110.2 lb)

Gross Weight

68Kg (149.9 lb)
