PTZ85260-HNF-WA-FL - DAHUA DH-PTZ85260-HNF-WA-FL 2MP 60x Starlight Laser WizMind Network Positioning System DH-PTZ85260-HNF-WA-FL Powerful 60x optical zoom IR distance up to 1000 m auto tracking DH-PTZ85260-HNF-WA-FL

PTZ85260-HNF-WA-FL

2MP 60x Starlight Laser WizMind Network Positioning System

> 1/1.8" 2Megapixel CMOS

> Powerful 60x optical zoom

> Starlight technology

> Max. 25/30 fps@1080P

> Laser distance up to 1000 m

> Deep-learning-based perimeter protection

> Auto-tracking and IVS

> IP67

PTZ85260-HNF-WA-FL - DAHUA DH-PTZ85260-HNF-WA-FL 2MP 60x Starlight Laser WizMind Network Positioning System DH-PTZ85260-HNF-WA-FL Powerful 60x optical zoom IR distance up to 1000 m auto tracking DH-PTZ85260-HNF-WA-FL SYSTEM OVERVIEW

AI series products adopt the most advanced AI technologies, including deep learning algorithms that primarily target people and vehicles, which provides higher flexibility and accuracy for end-users. This enables the Dahua AI series to offer various advanced applications such as Face Recognition, ANPR, Metadata, People Counting, traffic data statistics, etc. The complete lineup of Dahua AI includes network (PTZ) cameras, network video recorders, servers, and more devices. Beyond seeing the world, the power of AI allows devices to perceive the environment and understand the world in a better way.

With CNN algorithm, Dahua AI speed dome supports intelligent functions like tripwire and intrusion; and supports video structuralization function that recognizes motor vehicle, non-motor vehicle, and human to analyze their detailed information (plate number, vehicle brand, age and gender, etc.). With PFA algorithm, the speed dome can get clear images all the time during zooming. In addition, silent motor driver integrated circuits enable the speed dome to make faint sounds during rotation.

PTZ85260-HNF-WA-FL - DAHUA DH-PTZ85260-HNF-WA-FL 2MP 60x Starlight Laser WizMind Network Positioning System DH-PTZ85260-HNF-WA-FL Powerful 60x optical zoom IR distance up to 1000 m auto tracking DH-PTZ85260-HNF-WA-FL FUNCTIONS

Perimeter Protection

Automatically filtering out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improving alarm accuracy.

Auto-tracking

This feature controls the pan/tilt/zoom actions of the camera to automatically track an object in motion and to keep it in the scene. The tracking action can be triggered manually or automatically by defined rules. Once a rule is triggered, the camera can zoom in and track the defined target automatically.

Starlight Technology+

For challenging low-light applications, Dahua’s Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing color details in low light down to 0.001 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.

Wide Dynamic Range

The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video. Auto-tracking This feature controls the pan/tilt/zoom actions of the camera to automatically track an object in motion and to keep it in the scene. The tracking action can be triggered manually or automatically by defined rules. Once a rule is triggered, the camera can zoom in and track the defined target automatically.

Smart H.265+

Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.

PFA Technology

PFA technology has innovatively introduced new methods of judgment to ensure the accuracy and predictability of the direction of subject distance adjustment. The result is a set of advanced focusing algorithms. PFA ensures clarity of the image throughout the process of zooming and shortens focus time. The realization of PFA technology substantially improves user experience and increases product value.

Environmental

Dahua cameras operate in extreme temperature environments, rated for use in temperatures from -40 °C to +70 °C (-40 °F to +158 °F) with 95% humidity. Subjected to rigorous dust and water immersion tests and certified to the IP66 Ingress Protection rating makes it suitable for demanding outdoor applications.

Protection

The camera allows for ±25% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 6KV lightning rating provides effective protection for both the camera and its structure against lightning.

Interoperability

The camera conforms to the ONVIF (Open Network Video Interface Forum) specifications, ensuring interoperability between network video products regardless of manufacturer.

PTZ85260-HNF-WA-FL - DAHUA DH-PTZ85260-HNF-WA-FL 2MP 60x Starlight Laser WizMind Network Positioning System DH-PTZ85260-HNF-WA-FL Powerful 60x optical zoom IR distance up to 1000 m auto tracking DH-PTZ85260-HNF-WA-FL PICTURE

PTZ85260-HNF-WA-FL - DAHUA DH-PTZ85260-HNF-WA-FL 2MP 60x Starlight Laser WizMind Network Positioning System DH-PTZ85260-HNF-WA-FL Powerful 60x optical zoom IR distance up to 1000 m auto tracking DH-PTZ85260-HNF-WA-FL DIMENSIONS

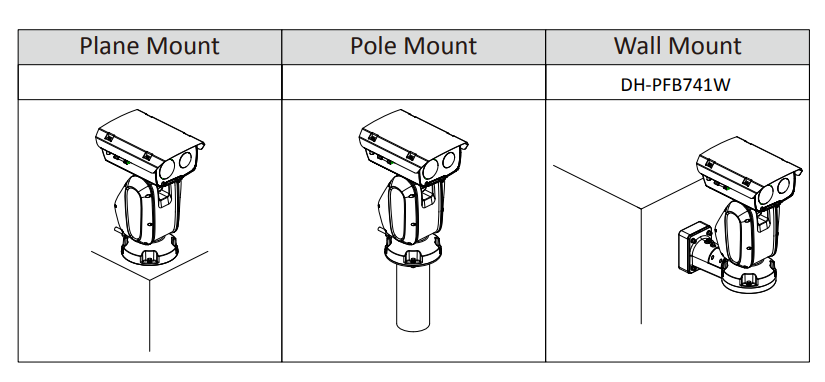

PTZ85260-HNF-WA-FL - DAHUA DH-PTZ85260-HNF-WA-FL 2MP 60x Starlight Laser WizMind Network Positioning System DH-PTZ85260-HNF-WA-FL Powerful 60x optical zoom IR distance up to 1000 m auto tracking DH-PTZ85260-HNF-WA-FL INSTALLATION
