PFS4228-24P-370 - DAHUA DH-PFS4228-24P-370 24-Port PoE Switch
PFS4228-24P-370
24-Port PoE Switch
> Support IEEE802.3af, IEEE802.3at standard
> Support spanning tree protocol STP/RSTP
> Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
> Support one-key recovery of IP address & user password
PFS4228-24P-370 - DAHUA DH-PFS4228-24P-370 24-Port PoE Switch
DH-PFS4228-24P-370 is a 24-port managed PoE Ethernet switch, which supports IEEE802.3 af/at standard. It supports Layer 2 network management and PoE management based on web and provides high-speed data forwarding. It is widely used in security surveillance, network engineering projects and so on.

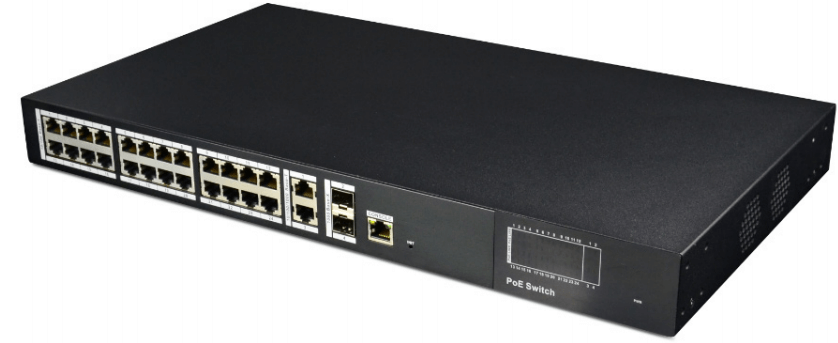

PFS4228-24P-370 - DAHUA DH-PFS4228-24P-370 24-Port PoE Switch PICTURE
PFS4228-24P-370 - DAHUA DH-PFS4228-24P-370 24-Port PoE Switch DIAGRAM
PFS4228-24P-370 - DAHUA DH-PFS4228-24P-370 24-Port PoE Switch TECHNICAL SPECIFICATION
**********
Technical Specification |
|
Model |
DH-PFS4228-24P-370 |
Ethernet Port |
2*10/100/1000 Base-T 2*1000 Base-X 24*10/100 Base-T(PoE power supply) |
PoE Power Consumption |
Each power ≤30W, Total≤370W |
PoE Protocol |
IEEE802.3af, IEEE802.3at |
Switching Capacity |
24.8G |
Packet Forwarding Rate |
9.52Mpps |
Humidity |
10%-90% |
Power |
AC 100~240V |
Lightning Protection |
Common Mode 2KV Differential Mode 1KV |
Working Temperature |
-10°C~55°C |
Weight |
3.73kg |
Dimension(W×D×H) |
442mm x263mm x44.5mm |
Accessories |
|
Model |
|
PFT3950 |
1.25G 850nm,500m,LC, Multi-mode |
PFT3960 |
1.25G 1310/1550nm,20km,LC, Single-mode |
PFT3970 |
1.25G 1550/1310nm,20km,LC, Single-mode |
Service Characteristics |
|
System |
Username / password: admin/admin |
IP Address :192.168.1.200/24 |
|
PoE Budget |
370W |
MAC Table |
16K |
VLAN |
Port-based VLAN |
802.1Q Standard VLAN |
|
Spanning Tree |
STP |
RSTP |
|
Port Aggregation |
Link aggregation |
Mirroring |
Support many-to-one port mirroring |
Flow Control |
Support half-duplex based on back pressure type control |
Support full duplex based on PAUSE frame |
|
Multicast |
IGMP Snooping |
Security Features |
Hardware supports IP+MAC binding based on port |
Support IEEE802.1x port authentication |
|
System Maintenance |
Support the configuration file upload/download |
Support the updated packet upload |
|
Support system logs |
|
Network Management |
WEB(http and https protocol) |
************
*********
**
**
*
*
