PFS3111-8ET-96-F - DAHUA PFS3111-8ET-96-F 11-Port Switch with 8-Port PoE

In stock

SKU

PFS3111-8ET-96-F

$119.00

PFS3111-8ET-96-F

11-Port Switch with 8-Port PoE

> Layer-two Unmanaged PoE Switch
> Conforms to IEEE802.3, IEEE802.3u and IEEE802.3X standards
> MAC auto study and aging, MAC address list capacity is 8K
> Conforms to IEEE802.3af and IEEE802.3at power supply standard. Port 1 and 2 support Hi-PoE 60W power supply
> Adopts metal structure
> High protection grade, supports common mode 4KV, differential mode 2KV
> Supports DC 48V-DC 57V power supply and dual power backup
> Supports -30°C~65°C operating temperature
> Supports two types of transmission modes, which are Default and Extend.Default mode is standard Ethernet mode with transmission bandwidth of 100 Mbps and supports transmission distance up to 100M via CAT6.Extend mode is long distance transmission mode with transmission bandwidth of 10 Mbps and supports transmission distance up to 250M via CAT6. This function only supports port1-4

Special Note:

Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PFS3111-8ET-96-F - DAHUA PFS3111-8ET-96-F 11-Port Switch with 8-Port PoE

PFS3111-8ET-96-F

11-Port Switch with 8-Port PoE

************************

Technical Speciﬁcation

Model

DH-PFS3111-8ET-96-F

Ethernet Port

8*RJ45 10/100M (PoE)

2*RJ45 10/100/1000M (uplink)

1*SFP 1000M (uplink)

PoE Power Consumption

Port1≤60W, Port2≤60W, Port3~8≤30W,

total power≤96W

PoE Protocol

IEEE802.3af, IEEE802.3at, Hi-PoE

Switching Capacity

13.6Gbps

Packet Forwarding Rate

5.65Mpps

Packet Buffer Memory

2Mb

Application Humidity

10%~90%

Power

DC 48-57V

Lightning Protection

Common Mode 4KV

Differential Mode 2KV

Working Temperature

-30°C~65°C

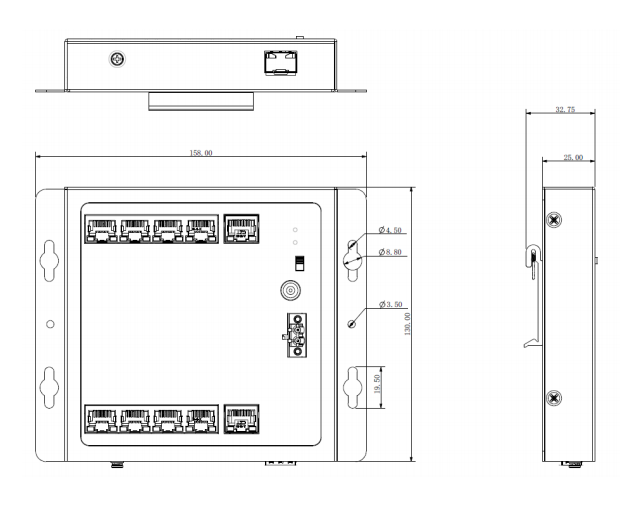

Dimension(W×D×H)

158mm x130mm x25mm

Accessories

Model

PFT3950

1.25G 850nm,500m,LC, Multi-mode

PFT3960

1.25G 1310/1550nm,20km,LC, Single-mode

PFT3970

1.25G 1550/1310nm,20km,LC, Single-mode

******

*********

**
