PFM930-59N - DAHUA DH-PFM930-59N 200m RG59 Coaxial Cable with Over 1km long transmission distance for 720P 99.99% OFC(oxygen free copper) excellent material
PFM930-59N

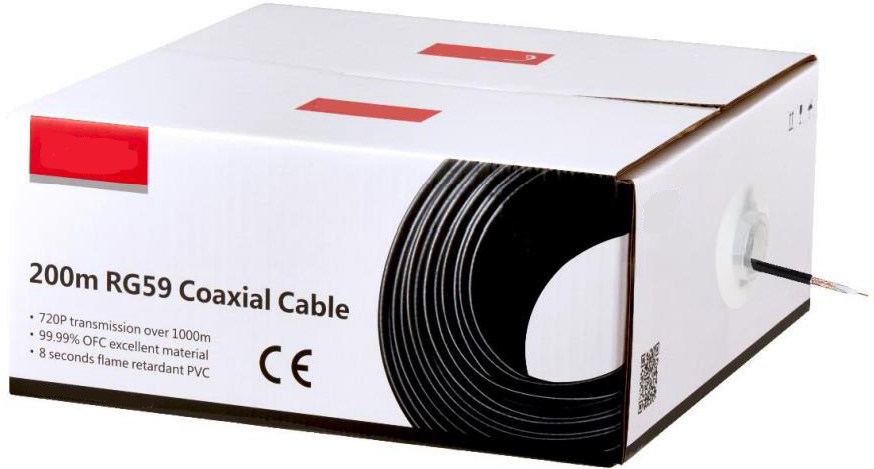

200m RG59 Coaxial Cable
> 200m RG59 coaxial cable
> Over 1km long transmission distance for 720P
> 99.99% OFC(oxygen free copper) excellent material
> Cable sheath flame retardant for 8 seconds
> Over 1km long transmission distance for 720P
> 99.99% OFC(oxygen free copper) excellent material
> Cable sheath flame retardant for 8 seconds
> 100% original products manufactured by DAHUA
Special Note:
Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.
PFM930-59N - DAHUA DH-PFM930-59N 200m RG59 Coaxial Cable with Over 1km long transmission distance for 720P 99.99% OFC(oxygen free copper) excellent material
PFM930-59N
200m RG59 Coaxial Cable
> 200m RG59 coaxial cable
> Over 1km long transmission distance for 720P
> 99.99% OFC(oxygen free copper) excellent material
> Cable sheath flame retardant for 8 seconds
> Over 1km long transmission distance for 720P
> 99.99% OFC(oxygen free copper) excellent material
> Cable sheath flame retardant for 8 seconds
> 100% original products manufactured by DAHUA
PFM930-59N - DAHUA DH-PFM930-59N 200m RG59 Coaxial Cable with Over 1km long transmission distance for 720P 99.99% OFC(oxygen free copper) excellent material OVERVIEW
PFM930-59N - DAHUA DH-PFM930-59N 200m RG59 Coaxial Cable with Over 1km long transmission distance for 720P 99.99% OFC(oxygen free copper) excellent material FUNCTIONS
PFM930-59N - DAHUA DH-PFM930-59N 200m RG59 Coaxial Cable with Over 1km long transmission distance for 720P 99.99% OFC(oxygen free copper) excellent material Picture
PFM930-59N - DAHUA DH-PFM930-59N 200m RG59 Coaxial Cable with Over 1km long transmission distance for 720P 99.99% OFC(oxygen free copper) excellent material Dimension
PFM930-59N - DAHUA DH-PFM930-59N 200m RG59 Coaxial Cable with Over 1km long transmission distance for 720P 99.99% OFC(oxygen free copper) excellent material
Installation
PFM930-59N - DAHUA DH-PFM930-59N 200m RG59 Coaxial Cable with Over 1km long transmission distance for 720P 99.99% OFC(oxygen free copper) excellent material Specification
Technical Specifications
****
| Model | DH-PFM930-59N | |
| Conductor | Material | OFC(oxygen free copper) |
| Wire gauge | 20AWG(0.8mm)(0.031”) | |
| Insulation | Material | FPE |
| Diameter | 3.7mm0.05mm(0.15”0.002”) | |
| Tape | Material | Aluminum foil |
| thickness | 0.04mm(0.0016”) | |
| Braid | Braiding material | Copper clad aluminum |
| Braiding structure | 0.12mm(0.0047”)*64(16*4) | |
| Jacket | Material | PVC |
| Min. average thickness | 0.9mm(0.035”) | |
| Diameter | 6.1mm±0.2mm(0.24”0.008”) | |
| Color | Black | |
| Length | 200m (656.17ft) | |
| Mark spacing | 1m(3.38ft) | |
| Impedance | 75Ω±2Ω | |
| General | Working temperature | -20℃~+70℃(-4℉~+158℉) |
| Storage temperature | -40℃~+80℃(-40℉~+176℉) | |
| Weight | 6.7kg(14.77lb) | |
| Weight(with packaging) | 7.2kg(15.87lb) | |
| Packaging dimension | 321mm*321mm*143mm(12.64”x12.64”x5.63”) | |
| Protective housing dimension | 662mm*337mm*467mm(26.06”x13.27”x18.39”) | |
***********
*
**************
