PFH610A-H-POE - DAHUA DH-PFH610A-H-POE 14" Corrosion-proof Housing DH-PFH610A-H-POE

In stock

SKU

PFH610A-H-POE

$110.00

PFH610A Series

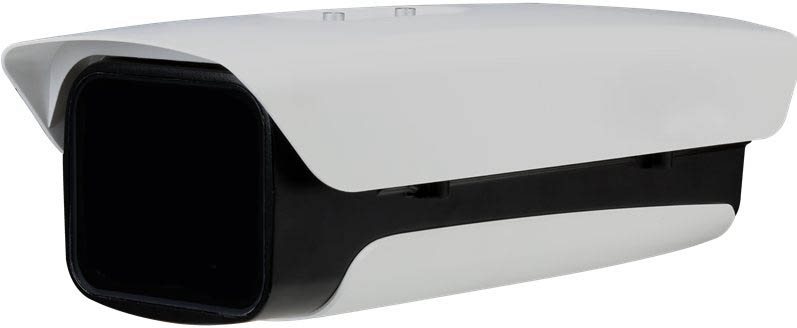

14" Corrosion-proof Housing

>14” housing, provides all-weather protection for box cameras and lens;
>All-aluminum shell design, IP67, IK10, corrosion-proof, 14” housing with different function modules: Built-in heating and cooling system, windows adopt water-proof films, 0-100m IR, built-in PoE module and support remote control of IR light by RS485;
>Aesthetic design.

Special Note:

Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PFH610A-H - DAHUA DH-PFH610A-H 14" Corrosion-proof Housing DAHUA DH-PFH610A-H

DAHUA DH-PFH610A-H

PFH610A-H - DAHUA DH-PFH610A-H 14" CORROSION-PROOF HOUSING DAHUA DH-PFH610A-H DIMENSIONS

PFH610A-H - DAHUA DH-PFH610A-H 14" CORROSION-PROOF HOUSING DAHUA DH-PFH610A-H INSTALLATION

PFH610A-H - DAHUA DH-PFH610A-H 14" CORROSION-PROOF HOUSING DAHUA DH-PFH610A-H TECHNICAL SPECIFICATIO

************

Model		PFH610A	PFH610A-H	PFH610A-H-POE	PFH610A-IR	PFH610A-IR-POE
General
Inside Dimension (LxWxH)		255x90x83mm (10.04”x3.54”x3.27”)	255x90x70.5mm(10.04”x3.54”x2.78”) 215x90x83mm(8.46”x3.54”x3.27”)
Window Dimension		ɸ60mm(ɸ2.36”)
Operating Temperature	Set	-30ºC ~+60ºC (-22℉~+140℉)	-40ºC ~+60ºC(-40℉~+140℉)
	Heater	N/A	ON: 5±5 ºC /OFF: 15±5 ºC			ON: <+5ºC(+41℉) /OFF: +5ºC(+41℉)
	Cooler	N/A	ON: 37±5 ºC /OFF: 20±5 ºC ON: 5±5 ºC /OFF: 15±5 ºC			ON: ≥37ºC(98.6℉) /OFF: <20ºC(68℉)
IR Distance		N/A			0~100m(0~328.08ft)
RS485 Control		N/A			Yes, use RS485 to control IR light
Power Supply		DC12V, AC24V (just for camera)	AC24V/3A	POE+	AC24V/5A,	POE+
Power Consumption (without camera)		N/A	30W	12W	55W	12.5W
Environmental
Operating Temperature		-30ºC ~60ºC (-22℉~+140℉)	-40ºC ~60ºC (-40℉~+140℉)
Humidity		<90% RH
Ingress Protection		IP67
Vandal Resistance		IK10
Corrosion Protection		Meet the criteria of NEMA 4X
Construction
Material		Aluminum(case)&PC(others)
Dimension(LxWxH)		404mmx164mmx132mm(15.91”x6.46”x5.2”)
Weight		2.5kg(5.51lb)	2.7kg(5.95lb)	3.0kg(6.61lb)	3.0kg(6.61lb)	3.2kg(7.05lb)
Others
Certification		CE, FCC, ICES	CE, FCC, UL, EAC, ICES	CE, FCC	CE, FCC, UL, EAC, ICEzS	CE, FCC, ICES
Applicable Model		Please see “Accessory Selection”

**********
