Person Body Temperature Measuring System Human Body Temperature Measurements body temperature measurement system BW-PBTM-TB06

BW-PBTM-TB06

•4meters long distance multi person non-contact measurement
•Effective Thermal pixels 200×150
•Multi person temperature measuring & screening in 0.1sec
•Built-in Al algorithm for high accurate measuring within to ±0.3 °C
•With HDMI output, easy connect with most external display
•Blackbody equipped in one for quick realtime calibrate in
high/low temperature ambient

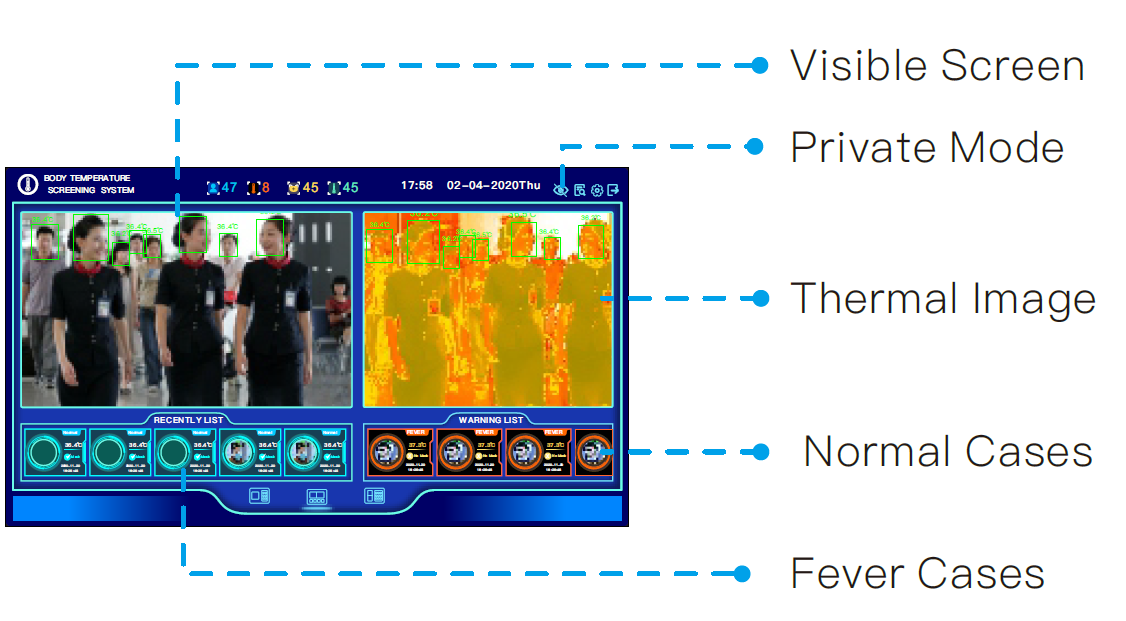

Simple system screen with switchable display mode and special privacy mode

Total 3 kinds display modes as option and support shortcut keys turn to the privacy mode, one click to hide the captured picture.

Person Body Temperature Measuring System Human Body Temperature Measurements body temperature measurement system

AI multi - person body temperature measuring system that combines a black body and a processing terminal in one,
with direct HDMI output for quick and easy installation and no setup.
The integrated black body is automatically calibrated in real time, no need to be afraid of high and low temperatures and
other harsh environments. Measuring distance up to 4m, allowing for fast non-contact monitoring.

Person Body Temperature Measuring System Human Body Temperature Measurements body temperature measurement system Features

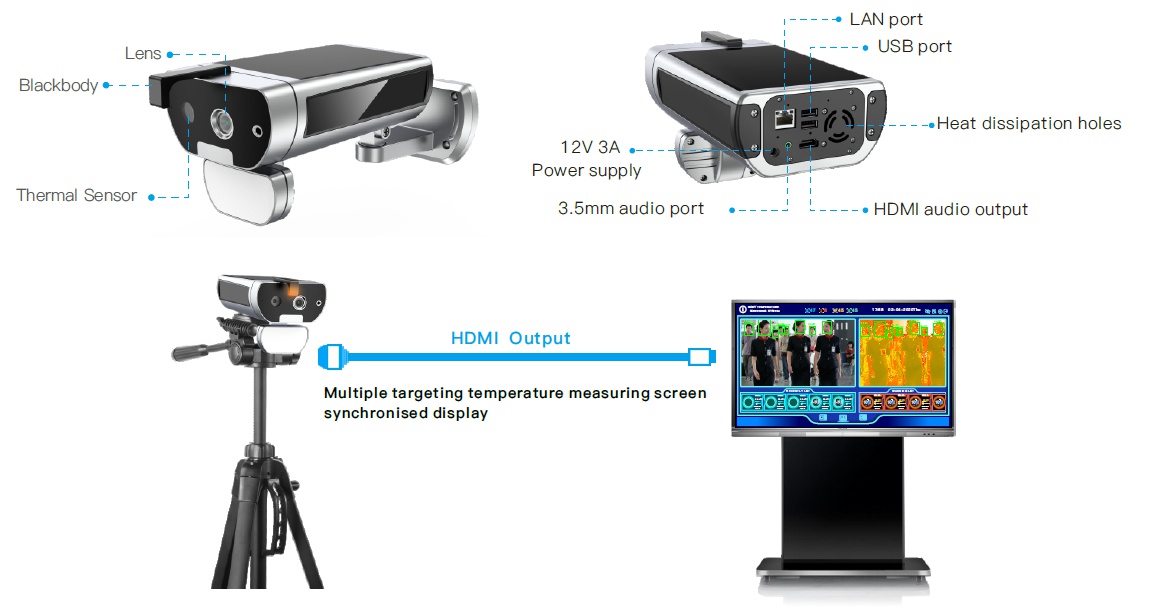

Easy installation
No need for professional operation, plug and play after installation, direct synchronised output after HDMI external
display.

Efficient Real-time Calibration
The device equipped with the black body in one, automatic real-time calibration to ensure the accuracy and efficiency
of temperature measurement, measuring accuracy up to ± 0.3 ℃.

Face Recognition
Combines AI face recognition algorithms to auto track faces capture picture, screen the normal& fever cases in shortly.

Fever Warning Alert
Built in early warning system , will push alert once detected the fever cases (body temperature reached the Alarm value ).

Refined Management System
Realtime display temperature measuring screen and data record, normal & fever cases in listing, support quick search the.
record and easy export

Person Body Temperature Measuring System Human Body Temperature Measurements body temperature measurement system Application Scenarios

Shopping malls, subway stations, bus stations, residential communities, schools and other public places with large flow of people

*********

*

*

*

***

********
