NVR4232-16P-4KS2 -DAHUA DHI-NVR4232-16P-4KS2 32 Channel 1U 16PoE 4K&H.265 Lite Network Video Recorder WITH Support IPC UPnP, 16PoE ports Max 200Mbps Incoming Bandwidth Intelligent Video System NVR4232-16P-4KS2

In stock

SKU

BVNVR4232-16P-4KS2

$346.98

NVR4232-16P-4KS2

32 Channel 1U 16PoE 4K&H.265 Lite Network Video Recorder

> Smart H.265+/H.265/Smart H.264+/H.264
> Max 200Mbps Incoming Bandwidth
> Up to 8MP Resolution for Preview and Playback
> Up to 2ch@4K/8ch@1080P decoding
> HDMI/VGA simultaneous video output
> Support IPC UPnP, 16PoE ports

>Multi language firmware

>100% original products manufactured by DAHUA

DAHUA NVR4232-16P-4KS2,DAHUA DHI-NVR4232-16P-4KS2,NVR4232-16P-4KS2,DHI-NVR4232-16P-4KS2,DHI-NVR4232N-16P-4KS2,DAHUA Network Video Recorder,DHI-NVR4232P-16P-4KS2,DAHUA 32 CHS Recorder,DAHUA 32ch surveillance system,32ch surveillance system

Special Note:

Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

Can upgrade DAHUA original firmware,2 year guarantee

Skip to the end of the images gallery

Skip to the beginning of the images gallery

NVR4232-16P-4KS2 -DAHUA DHI-NVR4232-16P-4KS2 32 Channel 1U 16PoE 4K&H.265 Lite Network Video Recorder WITH Support IPC UPnP, 16PoE ports Max 200Mbps Incoming Bandwidth Intelligent Video System NVR4232-16P-4KS2

NVR4232-16P-4KS2

32 Channel 1U 16PoE 4K&H.265 Lite Network Video Recorder

>Multi language firmware

>100% original products manufactured by DAHUA

NVR4232-16P-4KS2 -DAHUA DHI-NVR4232-16P-4KS2 32 Channel 1U 16PoE 4K&H.265 Lite Network Video Recorder WITH Support IPC UPnP, 16PoE ports Max 200Mbps Incoming Bandwidth Intelligent Video System NVR4232-16P-4KS2 SYSTEM OVERVIEW

DAHUA NVR NEW UI 4.0

Dahua NVR4000-4KS2 is introduced as the first Lite series NVR that supports for 4K and H.265 encoding technology with excellent performance at an affordable price. For applications where image details are highly required, it delivers the capability of 4K resolution processing. The NVR can be served as edge storage, central storage or backup storage with an intuitive shortcut operation menu for remote management and control. Due to its cost-effective and easy-to-install design, this NVR is ideal for a wide range of applications such as public safety, water conservancy, transportation, city centers, education, and financial institutions. The NVR is compatible with numerous third-party devices making it the perfect solution for surveillance systems that work independently of video management system (VMS). It features an open architecture that supports for multi-user access and is compatible with ONVIF 2.4 protocol, enabling interoperability with IP cameras

NVR4232-16P-4KS2 -DAHUA DHI-NVR4232-16P-4KS2 32 Channel 1U 16PoE 4K&H.265 Lite Network Video Recorder WITH Support IPC UPnP, 16PoE ports Max 200Mbps Incoming Bandwidth Intelligent Video System NVR4232-16P-4KS2 FUNCTIONS

4K Resolution

4K resolution is a revolutionary breakthrough in image processing technology. 4K delivers four times the resolution of standard HDTV 1080p cameras and offers superior picture quality and image details. 4K resolution improves the clarity of a magnified scene to view or record crisp forensic video from large areas.

Smart H.265+

Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.

Intelligent Video System

Working with IVS-enabled IP cameras, the NVR recognizes and records video that contains IVS data on all IP channels. The NVR records standard intelligence at-the-edge features, as well as premium IVS features that detect abandoned or missing objects, Tripwire violations, and intrusion violations. The NVR is also capable of recording business analysis data – Facial Detection, People Counting, and Heat Map – from IP cameras with built-in Intelligent Business Analytics.

Automatic Network Replenishment (ANR) Technology

Network Video Recorders with the ANR function automatically store video data on an IP camera SD card when the network is disconnected. After recovery of the network, the NVR automatically retrieves the video data stored on the camera.

DMSS

The DMSS app is available on the iOS App Store and Google Play. It makes surveillance easy and simple, allowing you to remotely access NVR devices, view live video, receive event push notifications, and search for recorded videos from an iPhone, iPad, or Android phone at anytime from virtually anywhere!

NVR4232-16P-4KS2 -DAHUA DHI-NVR4232-16P-4KS2 32 Channel 1U 16PoE 4K&H.265 Lite Network Video Recorder WITH Support IPC UPnP, 16PoE ports Max 200Mbps Incoming Bandwidth Intelligent Video System NVR4232-16P-4KS2 PICTURE

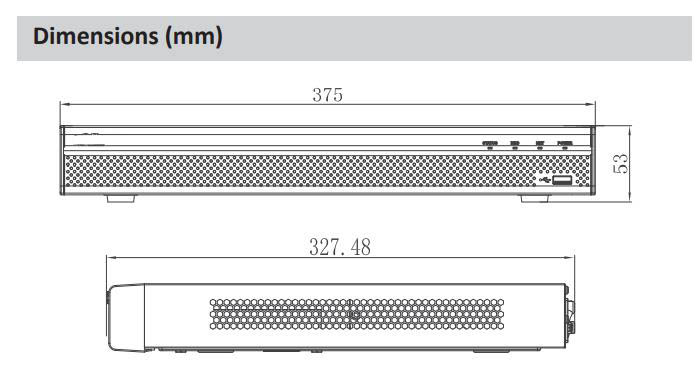

NVR4232-16P-4KS2 -DAHUA DHI-NVR4232-16P-4KS2 32 Channel 1U 16PoE 4K&H.265 Lite Network Video Recorder WITH Support IPC UPnP, 16PoE ports Max 200Mbps Incoming Bandwidth Intelligent Video System NVR4232-16P-4KS2 DIMENSIONS

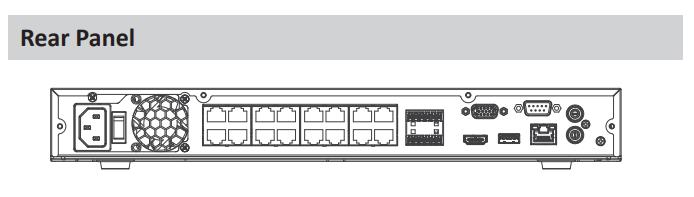

NVR4232-16P-4KS2 -DAHUA DHI-NVR4232-16P-4KS2 32 Channel 1U 16PoE 4K&H.265 Lite Network Video Recorder WITH Support IPC UPnP, 16PoE ports Max 200Mbps Incoming Bandwidth Intelligent Video System NVR4232-16P-4KS2 REAR PANEL

NVR4232-16P-4KS2 -DAHUA DHI-NVR4232-16P-4KS2 32 Channel 1U 16PoE 4K&H.265 Lite Network Video Recorder WITH Support IPC UPnP, 16PoE ports Max 200Mbps Incoming Bandwidth Intelligent Video System NVR4232-16P-4KS2 TECHNICAL SPECIFICATIONS

*************

System

Main Processor

Quad-core embedded processor

Operating System

Embedded LINUX

Aduio and Video

IP Camera Input

16/32 Channel

Two-way Talk

1 Channel Input, 1 Channel Output, RCA

Display

Interface

1 HDMI, 1 VGA

Resolution

HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720

VGA: 1920×1080, 1280×1024, 1280×720

Decoding Capacity

2ch@4K 30fps, 8ch@1080P 30fps

Multi-screen Display

16ch: 1/4/8/9/16

32ch: 1/4/8/9/16/25/36

OSD

Camera title, Time, Camera lock, Motion detection, Recording

Recording

Compression

Smart H.265+/H.265/Smart H.264+/H.264

Resolution

8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc.

Record Rate

200Mbps

Bit Rate

16Kbps ~ 20Mbps Per Channel

Record Mode

Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop

Record Interval

1 ~ 120 min (default: 60 min), Pre-record:

1 ~ 30 sec, Post-record: 10 ~ 300 sec

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Video Push, Email, Snapshot, Buzzer and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18),

Video Loss and Tampering

Alarm input

4 Channel

Alarm output

2 Channel

Playback and Backup

Playback

1/4/9/16

Search Mode

Time /Date, MD and Exact Search

(accurate to second), Smart search

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play,

Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom

Backup Mode

USB Device/Network

Third-party Support

Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more

Network

Interface

1 RJ-45 Port (10/100/1000Mbps)

Ethernet Port

1 Independent 1000Mbps Ethernet Port

PoE

16 ports (IEEE802.3at/af)

Network Function

HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, SNMP, IP Search (Support IP camera, DVR, NVS, etc.), Easy4ip

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 2.4, SDK, CGI

Storage

Internal HDD

2 SATA III Ports, Up to 6 TB capacity for each HDD

HDD Mode

Single

Auxiliary Interface

USB

2 ports(1 USB2.0, 1 USB3.0)

RS232

1 Channel

RS485

N/A

Electrical

Power Supply

AC100V ~ 240V, 50 ~ 60 Hz

Power Consumption

NVR: < 13.2W(without HDD)

PoE: Max 25.5w for single port, 130w in total

Environmental

Operating Conditions

-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa

Storage Conditions

-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH

Construction

Dimensions

1U, 375mm×327.5mm×53mm

(14.8" x 12.9" x2.1")

Net Weight

2.6kg (5.7 lb) (without HDD)

Gross Weight

4kg(8.8 lb)(without HDD)

Certifications

EN55032, EN55024, EN50130-4, EN60950-1

FCC

Part 15 Subpart B, ANSI C63.4-2014

UL60950-1

***************

Icctvzone IP surveillance
Icctvzone-wholesales DAHUA NVR

best price of DAHUA camera

****DAHUA NVR4232-16P-4KS2,DAHUA DHI-NVR4232-16P-4KS2,NVR4232-16P-4KS2,DHI-NVR4232-16P-4KS2,DHI-NVR4232N-16P-4KS2,DAHUA Network Video Recorder,DHI-NVR4232P-16P-4KS2,DAHUA 32 CHS Recorder,DAHUA 32ch surveillance system,32ch surveillance system****

More Information
including hard disk	NO
channels	32 channels
