NVR1B08HS-8P– DAHUA DHI-NVR1B08HS-8P 8 Channel Compact 1U H.265 4PoE Network Video Recorder with 4 Channel Compact 1U H.265 4PoE Network Video Recorder NVR1B08HS-8P

In stock
SKU
NVR1B08HS-8P
$126.00

NVR1B08HS-8P

8 Channel Compact 1U H.265 8PoE Network Video Recorder

> H.265+/H.264+ codec decoding
> Max 80Mbps incoming bandwidth
> Max 8 channel IP camera inputs
> Up to 8MP resolution preview&playback
> Up to 1ch@8MP/4ch@1080P decoding
> HDMI/VGA simultaneous video output
> Support IPC UPnP, 8PoE ports

Special Note:
Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

Can upgrade DAHUA original firmware,2 year guarantee

NVR1B08HS-8P– DAHUA DHI-NVR1B08HS-8P 8 Channel Compact 1U H.265 4PoE Network Video Recorder with 4 Channel Compact 1U H.265 4PoE Network Video Recorder NVR1B08HS-8P

NVR1B08HS-8P

8 Channel Compact 1U H.265 8PoE Network Video Recorder

> H.265+/H.264+ codec decoding
> Max 80Mbps incoming bandwidth
> Max 8 channel IP camera inputs
> Up to 8MP resolution preview&playback
> Up to 1ch@8MP/4ch@1080P decoding
> HDMI/VGA simultaneous video output
> Support IPC UPnP, 8PoE ports
> ,English firmware
> 100% original products manufactured by DAHUA



NVR1B08HS-8P– DAHUA DHI-NVR1B08HS-8P 8 Channel Compact 1U H.265 4PoE Network Video Recorder with 4 Channel Compact 1U H.265 4PoE Network Video Recorder NVR1B08HS-8P SYSTEM OVERVIEW

AI series products adopt the most advanced AI technologies, including deep learning algorithms that primarily target people and vehicles, which provides higher flexibility and accuracy for end-users. This enables the Dahua AI series to offer various advanced applications such as Face Recognition, ANPR, Metadata, People Counting, traffic data statistics, etc. The complete lineup of Dahua AI includes network (PTZ) cameras, network video recorders, servers, and platform management products. Beyond seeing the world, the power of AI allows devices to perceive the environment and understand the world in a better way.

EZ-IP is perfect for small to medium size applications like home/ residential security, small retail shops, and other typical SMB applications. It offers a perfect alternative to migrate from analog to an IP system with its easy to use nature and cost effectiveness. EZ-IP is fully in line with Dahua’s quality. Stable and reliable components are utilized and Various tests such as anti-vibration, water resistance, and aging tests are performed to ensure Dahua quality standards.

NVR1B08HS-8P– DAHUA DHI-NVR1B08HS-8P 8 Channel Compact 1U H.265 4PoE Network Video Recorder with 4 Channel Compact 1U H.265 4PoE Network Video Recorder NVR1B08HS-8P FUNCTIONS

Smart H.265+

Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.

Automatic Network Replenishment (ANR)

Technology Network Video Recorders with the ANR function automatically store video data on an IP camera SD card when the network is disconnected. After recovery of the network, the NVR automatically retrieves the video data stored on the camera.

DMSS

The DMSS app is available on the iOS App Store and Google Play. It makes surveillance easy and simple, allowing you to remotely access NVR devices,view live video, receive event push notifications, and search for recorded videos from an iPhone, iPad, or Android phone at anytime from virtually anywhere.

NVR1B08HS-8P– DAHUA DHI-NVR1B08HS-8P 8 Channel Compact 1U H.265 4PoE Network Video Recorder with 4 Channel Compact 1U H.265 4PoE Network Video Recorder NVR1B08HS-8P  Picture

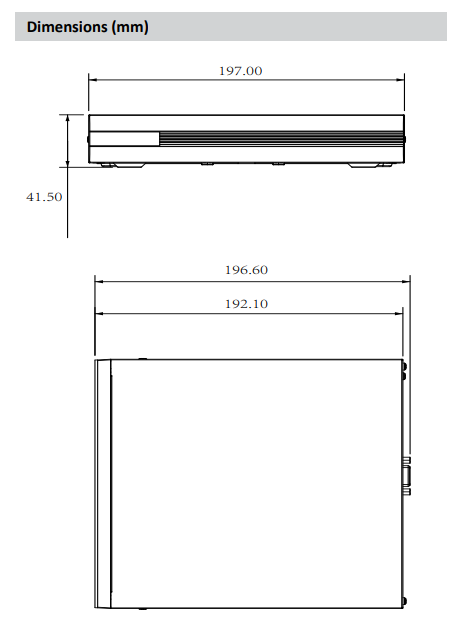

NVR1B08HS-8P– DAHUA DHI-NVR1B08HS-8P 8 Channel Compact 1U H.265 4PoE Network Video Recorder with 4 Channel Compact 1U H.265 4PoE Network Video Recorder NVR1B08HS-8P  Dimension

NVR1B08HS-8P

NVR1B08HS-8P– DAHUA DHI-NVR1B08HS-8P 8 Channel Compact 1U H.265 4PoE Network Video Recorder with 4 Channel Compact 1U H.265 4PoE Network Video Recorder NVR1B08HS-8P  Installation




NVR1B08HS-8P– DAHUA DHI-NVR1B08HS-8P 8 Channel Compact 1U H.265 4PoE Network Video Recorder with 4 Channel Compact 1U H.265 4PoE Network Video Recorder NVR1B08HS-8P Specification



Technical Specifications

****

System

Main Processor

Dual-core embedded processor

Operating System

Embedded LINUX

Audio and Video

IP Camera Input

8 Channel

Two-way Talk

1 Channel Input, 1 Channel Output, RCA

Display

Interface

1 HDMI, 1 VGA

Resolution

HDMI: 3840 ×2160,1920×1080, 1280×1024, 1280×720, 1024×768

VGA: 1920×1080, 1280×1024, 1280×720, 1024×768

Decoding Capacity

1ch@8MP 30fps, 4ch@1080P 30fps

Multi-screen Display

1/4/8/9

OSD

Camera title, Time, Camera lock, Motion detection, Recording

Recording

Compression

H.265+/H.264+

Resolution

8MP/6MP/5MP/4MP/3MP/1080P/ 720P/ D1&etc.

Record Rate

80Mbps

Bit Rate

16Kbps ~ 20Mbps Per Channel

Record Mode

Manual, Schedule(Regular(Continuous), MD, Stop

Record Interval

1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Video Push, Snapshot, and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18),

and Tampering

Alarm input

N/A

Relay Output

N/A

Playback and Backup

Sync Playback

1/4/9

Search Mode

Time /Date, MD and Exact Search

(accurate to second)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom

Backup Mode

USB Device/Network

Third-party Support

Third-party Support

Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more

Network

Interface

1 RJ-45 port (10/100/1000Mbps)

Ethernet Port

1 Independent 1000Mbps Ethernet Port

PoE

8 ports (IEEE802.3at/af)

Network Function

HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, DDNS, IP Search(Support Dahua IP camera, DVR, NVS and etc.), P2P

Optical Fiber Interface

N/A

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF ,SDK, CGI Conformant

Storage

Internal HDD

1 SATA III Port, up to 6TB capacity for each HDD

HDD Mode

Single

eSATA

N/A

Auxiliary Interface

USB

2 ports (1 Rear USB2.0, 1 Front USB2.0)

RS232

N/A

RS485

N/A

Electrical

Power Supply

Single, DC48V/2A

Power Consumption

NVR: <6W (without HDD)

PoE: Max 25.5w for single port, 80w in total

Environmental

Operating Conditions

-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa

Storage Conditions

-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH

Construction

Dimensions(W×D×H)

Compact 1U, 260mm×229.3mm×47.6mm

(10.2" x 9.03" x 1.9")

Net Weight

0.93kg (2.05 lb) (without HDD)

Gross Weight

2.07kg(4.56 lb)(without HDD)

Certifications

CE

EN55032, EN55024, EN50130-4, EN60950-1

FCC

Part 15 Subpart B, ANSI C63.4-2014

*********
