LR1002-1ET/LR1002-1EC Single-Port Long Reach Ethernet over Coax Extender

In stock

SKU

BN-LR1002-1ETLR1002-1EC

Be the first to review this product

$90.00

model

Qty

LR1002-1ET/LR1002-1EC

Single-Port Long Reach Ethernet over Coax Extender

> Supports IEEE802.3, IEEE802.3u standards
> Supports IEEE802.3af and IEEE802.3at power supply standards
> Port: 1*RJ45 10/100Mbps, 1*BNC
> Supports RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps
> Supports MDI/MDIX self-adaption
> Supports long range power supply transmission via coaxial cable

Special Note:

Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

LR1002-1ET/LR1002-1EC Single-Port Long Reach Ethernet over Coax Extender

The product is divided into transmitter (LR1002-1ET) and receiver (LR1002-1EC). It is designed to work as a type of converter from RJ45 to BNC port, which supports long range power supply transmission via coaxial cable. It provides one BNC coaxial port and one RJ45 port. The product is equipped with two transmission modes which are 100Mbps and 10Mbps. It can be modified according to the transmission distance

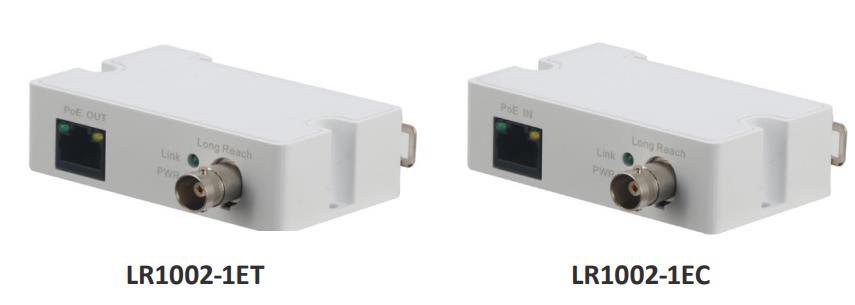

LR1002-1ET/LR1002-1EC Single-Port Long Reach Ethernet over Coax Extender PICTURE

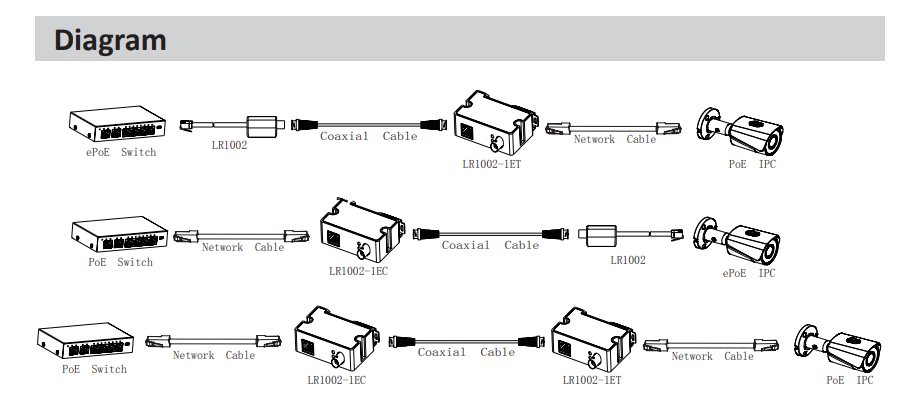

LR1002-1ET/LR1002-1EC Single-Port Long Reach Ethernet over Coax Extender DIAGRAM

LR1002-1ET/LR1002-1EC Single-Port Long Reach Ethernet over Coax Extender TECHNICAL SPECIFICATION

***********

Technical Speciﬁcation

Model

LR1002-1ET

LR1002-1EC

Function Port

1*10/100 Mbps Base-TX

1*BNC

Power Consumption

<2W

Transmission Bandwidth

RG59 coaxial cable:

400m/100Mbps, 1000m/10Mbps

PoE Protocol

IEEE802.3af, IEEE802.3at

Network Standard

IEEE802.3, IEEE802.3u, IEEE802.3x

Lightning Protection

Common Mode 4KV

Differential Mode 2KV

Operating Temperature

-30°C-65°C

Operating Humidity

5%~95%

Weight

61g

Dimension (W×D×H)

79mm×52mm×23mm

Take RG59 as an example (Max. DC resistance < 5.0Ω/100m)
LR1002-1ET/LR1002-1EC		Supports with 48V	Supports with 53V
100m	Bandwidth (Mbps)	100	100
	Load Capacity (W)	21	25.5
200m	Bandwidth (Mbps)	100	100
	Load Capacity (W)	15	24
300m	Bandwidth (Mbps)	100	100
	Load Capacity (W)	11	19
400m	Bandwidth (Mbps)	100	100
	Load Capacity (W)	9	16
500m	Bandwidth (Mbps)	10	10
	Load Capacity (W)	7	13
800m	Bandwidth (Mbps)	10	10
	Load Capacity (W)	5	8
1000m	Bandwidth (Mbps)	10	10
	Load Capacity (W)	4	6

************

*********

**
