IVSS7108 - DAHUA DHI-IVSS7108 2U 8HDDs Intelligent Video Surveillance Server With Face Recognition Video Metadata IVSS7108
IVSS7108
2U 8HDDs Intelligent Video Surveillance Server
> Industry embedded micro-controller
> Max 512Mbps incoming bandwidth
> 128-channel IP video access
> Supports RAID 0/1/5/6/10/50/60
> 4 HDMI/1 VGA video output
>DAHUA Logo,English firmware
Can upgrade DAHUA original firmware,2 year guarantee
IVSS7108 - DAHUA DHI-IVSS7108 2U 8HDDs Intelligent Video Surveillance Server With Face Recognition Video Metadata IVSS7108
IVSS7108
2U 8HDDs Intelligent Video Surveillance Server
> Industry embedded micro-controller
> Max 512Mbps incoming bandwidth
> 128-channel IP video access
> Supports RAID 0/1/5/6/10/50/60
> 4 HDMI/1 VGA video output
>dahua Logo,English firmware
IVSS7108 - DAHUA DHI-IVSS7108 2U 8HDDs Intelligent Video Surveillance Server With Face Recognition Video Metadata IVSS7108 SYSTEM OVERVIEW
.
Dahua IVSS goes beyond the ordinary NVR products. It is an Intelligent Video Surveillance Server that combines video management features with traditional video storage functions in one device. Besides the basic functions as a network video recorder, IVSS is integrated with features such as face detection and face recognition for different business and industrial applications. An all new UI design supports device operation and maintenance management, improving the value and experience of surveillance view, and serving the era of security big data.
IVSS7108 - DAHUA DHI-IVSS7108 2U 8HDDs Intelligent Video Surveillance Server WithFace Recognition Video Metadata IVSS7108 FUNCTIONS
Face Recognition (with AI camera)
Supports real-time Face Detection & Recognition (with AI camera). Shows real-time face detection and recognition results from AI camera. Records faces with video metadata. Facial features are filtered during real-time display, so as to show only faces with target features. Facial features include gender, age, expression, and more. The linkage actions for face detection and recognition events are configurable, including alarm, buzzer, snapshot, video recording, and more.
AI IVS(with AI camera)
With deep learning algorithm, AI IVS technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, parking detection, loitering detection and crowd gathering estimation) are largely reduced.
Video Metadata (with AI camera)
Metadata is feature attribute information extracted from a target object which can be used for data retrieval. Currently, there are four main kinds of metadata in the security industry: Human face, human body, and motor vehicle, non-motor vehicle metadata.
ANPR
Automatic Number Plate Recognition available for convenient entrance/ exit management. This feature provides number plate recognition (working with Dahua ITC camera), number plate comparison with blocklist/allowlist, vehicle database management, and vehicle record search. N+M Hot Standby The highly reliable redundancy
N+M Hot Standby
design provides a secure failover technique to ensure immediate backup. In the event of a system failure, the sub device instantly takes over the main device to ensure no data loss.
Smart Tracking
The automatic tracking PTZ feature automatically tracks a moving target throughout the camera's field of view. This function is ideal for following an object as it moves through airports, parking lots, city centers, or other scenes.
IVSS7108 - DAHUA DHI-IVSS7108 2U 8HDDs Intelligent Video Surveillance Server With Face Recognition Video Metadata IVSS7108 PICTURE

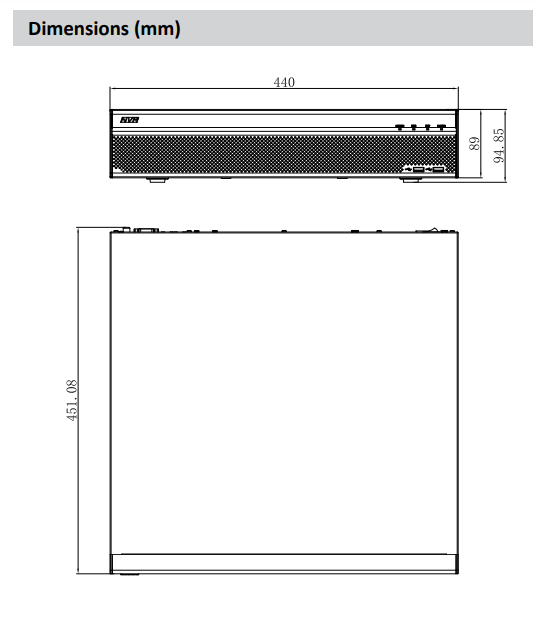

IVSS7108 - DAHUA DHI-IVSS7108 2U 8HDDs Intelligent Video Surveillance Server With Face Recognition Video Metadata IVSS7108 DIMENSIONS
IVSS7108 - DAHUA DHI-IVSS7108 2U 8HDDs Intelligent Video Surveillance Server WithFace Recognition Video Metadata IVSS7108 REAR PANEL
IVSS7108 - DAHUA DHI-IVSS7108 2U 8HDDs Intelligent Video Surveillance Server WithFace Recognition Video Metadata IVSS7108 TECHNICAL SPECIFICATIONS
**
|
System |
|
|
Main Processor |
Industry embedded micro-controller |
|
Operating System |
Embedded Linux OS |
|
Operation Interface |
WEB (PCAPP), local GUI |
|
AI Applications |
|
|
AI by Camera |
Face detection, face recognition, entries frequency, video metadata, IVS (tripwire, intrusion, abandoned object, missing object, fast moving, parking detection) crowd gathering, loitering,parking, and fence-crossing), people counting, smoking detection, call detection |
|
IVS |
|
|
Perimeter Function (AI by Camera) |
64-channel |
|
Human Face Detection |
|
|
Human Face Properties |
Supports 6 properties: Gender, age range (6-level), glasses, expression (8 types), mouth mask, and beard |
|
Face Detection Performance (AI by Camera) (Channel Number) |
64-channel |
|
ANPR |
|
|
Plate Database Capacity |
50 plate databases with 500,000 plate numbers in totalSupports allowlist and blocklist |
|
Plate Detection Performance |
32-channel |
|
Video Metadata |
|
|
Human Body Properties |
Gender, age, sleeves length, top color, bottom type, bottom color, bag, rain coat, umbrella, hat, hairstyle, direction, hold a baby, mouth mask |
|
Vehicle Properties |
Vehicle type, vehicle color, plate color, logo, calling, seatbelt, ornament, region |
|
Non-motorized Vehicle Properties |
Non-motor vehicle type, non-motor vehicle color, number of passengers, umbrella, rain coat, bag , sleeve length, top color, hat, hair style, mouth mask |
|
Metadata Performance (AI by Device) (1080P) (Channel Number) |
N/A |
|
Metadata Performance (AI by Camera) (Channel Number) |
32-channel |
|
Video Parameters |
|
|
Remote Connection |
128 |
|
Network Bandwidth |
Incoming bandwidth: 512Mbps |
|
Resolution |
32MP/24MP/16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/CIF/QCIF |
|
Decoding Capability |
1-channel 32MP/1-channel 24MP/2-channel 16MP/5-channel 12MP (20fps)/6-channel 12MP (15fps)/5-channel 8MP (30fps)/10-channel 8MP (15fps)/6-channel 6MP(30fps)/8-channel 5MP(30fps)/9-channel 5MP (25fps)/10-channel 4MP (30fps)/15-channel 4MP (20fps)/16-channel 3MP (25fps)/10-channel 1080P (60fps)/20-channel 1080P (30fps)/30-channel 720P (30fps) |
|
Video Output |
1-channel VGA output, 4-channel HDMI output , VGA 1/HDMI 1 outputs the same video source. Supports 4K output |
|
Multi-screen Display |
Customized display. Max. 36-channel local live view. Max.16-channel PCAPP live view |
|
Third-party Support |
Onvif, RTSP, Sony, Panasonic, Axis, Arecont, Pelco,Canon, Samsung |
|
Compression |
|
|
Video Compression |
Smart H.265+/Smart H.264+/H.265/H.264 |
|
Audio Compression |
G.711A/G.711U/PCM/G726 |
|
Network |
|
|
Protocol |
HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P |
|
Mobile Phone |
DMSS |
|
Interoperability |
ONVIF(Profile S, T and G), CGI, SDK |
|
Browser |
Chrome, PCAPP, IE9 or higher, Firefox |
|
Network Mode |
NIC binding mode such as multiple-address mode, load balance, fault-tolerance, etc |
|
Record Playback |
|
|
Multiple-channel Playback |
Max. 16-channel playback |
|
Record Search |
Search video detection/manual record/IO alarm/intelligent event/all record file |
|
Storage Medium |
Internal HDD |
|
Backup Method |
HDD, peripheral USB storage device |
|
Playback Function |
1. Play/pause/stop/fast forward/fast backward/reverse play/frame by frame play. 2. Full-screen, backup (clip/file), snapshot, digital zoom, audio on/off |
|
Storage |
|
|
HDD Group |
8 |
|
RAID |
RAID0/1/5/6/10/50/60 |
|
Storage Pool |
N/A |
|
Alarm |
|
|
General Alarm |
Motion detect, tampering, local alarm |
|
Anomaly Alarm |
IPC offline alarm, storage error, HDD full, IP conflict, MAC conflict, login lock, fan malfunction |
|
Intelligent Alarm |
Human face detection, human face recognition, video metadata (person/vehicle/non-motor vehicle), IVS, plate recognition, people counting, smoking, call |
|
Alarm Linkage |
Record, picture storage (full image), local external alarm output, IPC external alarm output, access & control, audio prompt, buzzer, log, preset, email |
|
Peripheral Interface |
|
|
Audio Input |
1-channel, RCA port (reserved) |
|
Audio Output |
2-channel, RCA port , speaker output, audio linkage output |
|
Alarm Input |
16-channel |
|
Alarm Output |
8-channel |
|
Internal HDD |
8 slots, SATA3.0. Max.16T/HDD |
|
eSATA |
1 port |
|
SAS |
N/A |
|
RS-232 |
1 port, for debug or transparent COM data |
|
RS-485 |
1 port, control peripheral PTZ and so on. Supports various protocols |
|
USB |
2 USB2.0 ports at the front panel and 2 USB3.0 ports at the rear panel |
|
HDMI |
4 ports; support 4K output |
|
VGA |
1 ports |
|
Network |
4 RJ-45 10/100/1000Mbps self-adaptive Ethernet ports |
|
Power |
1 port |
|
PoE |
N/A |
|
General Parameters |
|
|
Power Supply |
100V AC–240V AC 50-60%Hz |
|
Power Consumption |
35 W (without HDD, idling) 100 W (all HDDs connected) |
|
Net Weight |
7.66 kg (16.89 lb) |
|
Gross Weight |
10.24 kg (22.58 lb) |
|
Dimensions |
Chassis: 439.7 mm × 446.2 mm × 89 mm (17.31 " × 17.57 " × 3.50 ") |
|
Packaging Dimensions |
With Packaging: 562 mm × 599 mm × 235 mm (22.13 " × 23.58 " × 9.25 ") (19.33 " × 22.99 " × 24.84 ") |
|
Operating Temperature |
0 °C to +45 °C (+32 °F to +113 °F)/10%RH–90% RH |
|
Storage Temperature |
0 °C to +40 °C (+32 °F to +104 °F)/30%RH–85% RH |
|
Operating Humidity |
10%–90% |
|
Storage Humidity |
30%–85% |
|
Operating Altitude |
5000 m (16404.20 ft) |
|
Installation Mode |
Desktop/rack |
|
Certifications |
CE: CE-LVD: EN 60950-1/IEC 60950-1 |
**
*
