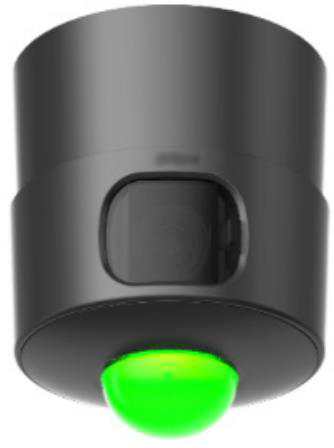

ITC314-PH2A-TF - DAHUA DH-ITC314-PH2A-TF Series 3MP Dual-Lens Parking Space Detector WITH Interactive design with parking space indicator Dual-Lens design, simultaneously detect up to 6 spaces Without logo

In stock

SKU

ITC314-PH2A-TF

$353.52

ITC314-PH2A-TF Series

3MP Dual-Lens Parking Space Detector

> 3 MP 1/2.8”inch CMOS, 0.01lux min illumination.
> Dual-Lens design, simultaneously detect up to 6 spaces.
> Indicator supports at least 7 colors.
> Interactive design with parking space indicator.
> In-ceiling installation.
> Supports dual stream output of JPEG and H.264, 1~20fps adjustable.
> Supports WDR.
> Supports PvE (Power via Ethernet).
> Supports up to 4 angled parking spaces detection.

>100% original products manufactured by DAHUA

Special Note:

Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

ITC314-PH2A-TF - DAHUA DH-ITC314-PH2A-TF Series 3MP Dual-Lens Parking Space Detector WITH Interactive design with parking space indicator Dual-Lens design, simultaneously detect up to 6 spaces Without logo

ITC314-PH2A-TF Series

3MP Dual-Lens Parking Space Detector

>100% original products manufactured by DAHUA

ITC314-PH2A-TF - DAHUA DH-ITC314-PH2A-TF Series 3MP Dual-Lens Parking Space Detector WITH Interactive design with parking space indicator Dual-Lens design, simultaneously detect up to 6 spaces Without logo Picture

ITC314-PH2A-TF - DAHUA DH-ITC314-PH2A-TF Series 3MP Dual-Lens Parking Space Detector WITH Interactive design with parking space indicator Dual-Lens design, simultaneously detect up to 6 spaces Without logo

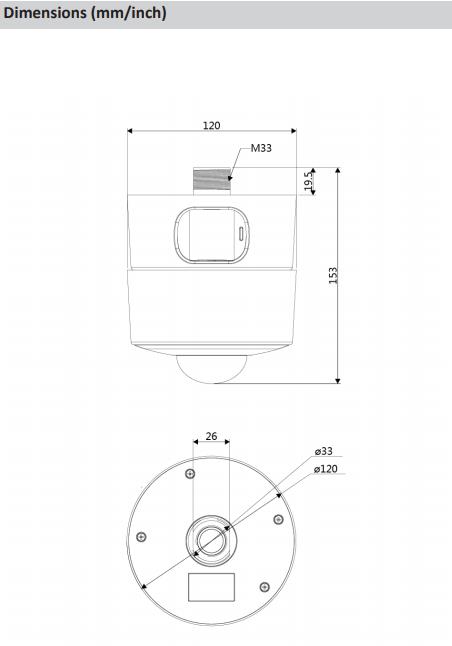

Dimensions

ITC314-PH2A-TF - DAHUA DH-ITC314-PH2A-TF Series 3MP Dual-Lens Parking Space Detector WITH Interactive design with parking space indicator Dual-Lens design, simultaneously detect up to 6 spaces Without logo

Installation

ITC314-PH2A-TF - DAHUA DH-ITC314-PH2A-TF Series 3MP Dual-Lens Parking Space Detector WITH Interactive design with parking space indicator Dual-Lens design, simultaneously detect up to 6 spaces Without logo Specification

Technical Specifications

***

Camera

Model

DHI-ITC314-PH2A-TF2

DHI-ITC314-PH2A-TF3

Focal Length

2.8mm

3.6mm

Image Sensor

Two 1/2.8 inch 3MP CMOS

Electronic Shutter Speed

Auto/manual, 1/3~1/10000s

Minimum illumination

0.01Lux

WDR mode

Support

White Balance

Auto

Gain Control

Auto

Day/Night

Electronic color to B/W

Interface

Ethernet

2 ×10/100M self-adaptive Ethernet port

RS485

1 ×RS485

Lens Port

M12(2.8mm lens)/M12 (3.6mm lens)

General

Power Supply

DC 12~48V Support PvE power supply

Power Consumption

<8.5W

Dimension

Ø120 mm×153mm

Weight

700g

Function

ANPR

Support

Vehicle Parking Detection

Support

Angled Parking Space Detection

Support

OSD info overlay

Support

Parking Indicator

7 colors, red /yellow /blue /green /cyan /white /pink

Maximum Detection Spaces

Remote Control

Via WEB remote control

Watermark

Watermark and parity

Certifications

Certification

FCC: 47 CFR Part 15, Subpart B

CE: meet the standard

ROHS

Ingress Protection

IP50

Working Temperature& humidity

-20° C ~ +50° C /10%~90% Humidity

Image compression standard

JPEG

Image Resolution

2048 ×1536@20fps

Video Compression Standard

H.264

Multi-streaming

2 streams

Video Bit Stream

Each channel supports 1.2Mbps~6Mbps

Video Frame Stram

Each channel supports 1~20fps

Video Resolution

Main stream: 2048×1536

Sub stream: 704×576
