IPC-T2B20-L-ZS – DAHUA DH-IPC-T2B20-L-ZS 2MP IR Turret Network Camera with Micro SD card memory H.265+ & H.265 dual-stream encoding 2.8~12mm varifocal lens PoE IPC-T2B20-L-ZS

In stock

SKU

bvIPC-T2B20-L-ZS

$74.96

IPC-T2B20-L-ZS

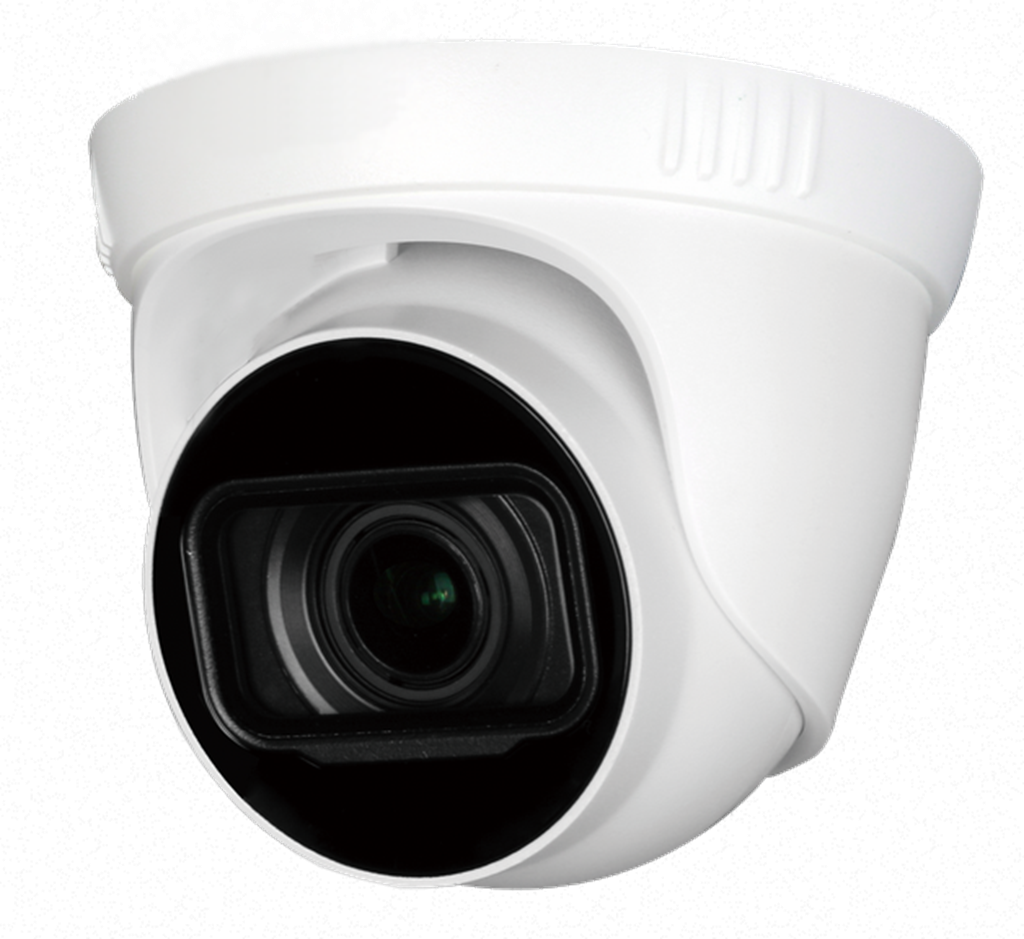

2MP IR Turret Network Camera

> 1/2.7” 2Megapixel progressive CMOS
> H.265+ & H.265 dual-stream encoding
> 20fps@1080P(1920×1080)
> DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.8~12mm varifocal lens
> Max IR LEDs Length 40m
> Micro SD card memory, IP67, PoE

> DH Logo,English firmware
> 100% original products manufactured by DAHUA

The delivery time is 25 working days if no stock.

Special Note:

Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee

Skip to the end of the images gallery

Skip to the beginning of the images gallery

IPC-T2B20-L-ZS – DAHUA DH-IPC-T2B20-L-ZS 2MP IR Turret Network Camera with Micro SD card memory H.265+ & H.265 dual-stream encoding 2.8~12mm varifocal lens PoE IPC-T2B20-L-ZS

IPC-T2B20-L-ZS

2MP IR Turret Network Camera

> ,English firmware
> 100% original products manufactured by DAHUA

IPC-T2B20-L-ZS – DAHUA DH- IPC-T2B20-L-ZS 2MP IR Turret Network Camera with Micro SD card memory H.265+ & H.265 dual-stream encoding 2.8~12mm varifocal lens PoE IPC-T2B20-L-ZS Picture

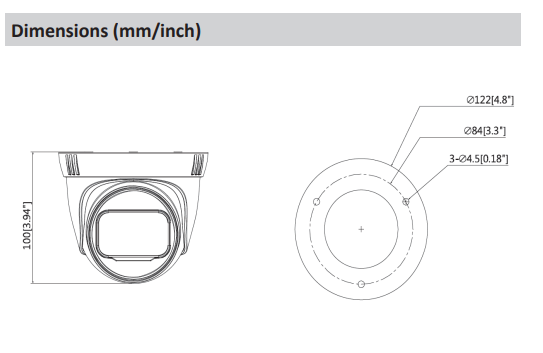

IPC-T2B20-L-ZS – DAHUA DH- IPC-T2B20-L-ZS 2MP IR Turret Network Camera with Micro SD card memory H.265+ & H.265 dual-stream encoding 2.8~12mm varifocal lens PoE IPC-T2B20-L-ZS Dimension

IPC-T2B20-L-ZS – DAHUA DH- IPC-T2B20-L-ZS 2MP IR Turret Network Camera with Micro SD card memory H.265+ & H.265 dual-stream encoding 2.8~12mm varifocal lens PoE IPC-T2B20-L-ZS Installation

IPC-T2B20-L-ZS – DAHUA DH- IPC-T2B20-L-ZS 2MP IR Turret Network Camera with Micro SD card memory H.265+ & H.265 dual-stream encoding 2.8~12mm varifocal lens PoE IPC-T2B20-L-ZS Specification

Technical Specifications

***

Camera

Image Sensor

1/2.7” 2Megapixel progresive CMOS

Effective Pixels

1920(H)x1080(V)

RAM/ROM

64MB/16MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.05Lux/F1.8( Color,1/3s,30IRE)

0.3Lux/F1.8( Color,1/30s,30IRE)

0Lux/F1.8(IR on)

S/N Ratio

More than 40dB

IR Distance

Distance up to 40m(131ft)

IR On/Off Control

Auto/ Manual

IR LEDs

Lens

Lens Type

Motorized

Mount Type

Board-in

Focal Length

2.8mm~12mm

Max. Aperture

F1.8

Angle of View

H:105°~33°, V:56°~18°

Focus Control

Motorized

Close Focus Distance

0.2m(0.66ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

44m(144.4ft)

17.6m(57.7ft)

8.8m(28.9ft)

4.4m(14.4ft)

133m(436.4ft)

53m(173.9ft)

27m(88.6ft)

13m(42.7ft)

PTZ

Pan/Tilt Range

Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°

Intelligence

Event Trigger

Motion detection, Video tampering , Network disconnection , IP address conflict, Illegal Access,Storage anomaly

Video

Compression

H.265/H.264/H.264B/MJPEG(Sub Stream)

Smart Codec

Support H.265+/H.264+

Streaming Capability

2 Streams

Resolution

1080P(1920×1080)/1.3M(1280×960)/720P(1280×720)/VGA(640×480)/D1(704×576/704×480)/CIF(352×288/352×240)

Frame Rate

Main Stream: 1080P(1 ~ 20fps)

Sub Stream: 1.3M(1 ~ 25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 32K~6144K

H.265: 12K~ 6144K

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / DWDR

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detetion

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization (EIS)

N/A

Smart IR

Support

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

N/A

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

HTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;FTP;DHCP;DNS;IPV4;NTP;Multicast;ICMP;IGMP;TLS

Interoperability

ONVIF Profile S

Streaming Method

Unicast / Multicast

Max. User Access

10 Users/20 Users

Edge Storage

NAS(Network Attached Storage)

Local PC for instant recording

Micro SD Card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS,DMSS

Smart Phone

IOS, Android

Certifications

CE: (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

N/A

Audio Interface

N/A

RS485

N/A

Alarm

N/A

Electrical

Power Supply

DC12V, PoE (802.3af)(Class 0)

Power Consumption

DC12V: 1.8W, 5.6W(IR On)

PoE: 2.1W, 6.6W(IR On)

Environmental

Operating Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Strorage Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

N/A

Construction

Casing

Metal+Plastic

Dimensions

Φ122mm×100mm(4.8''x3.94'')

Net Weight

0.397Kg(0.875lb)

Gross Weight

0.576Kg(1.27lb)

**********

***

Icctvzone-wholesales DAHUA IP Cameras
Icctvzone IP surveillance
Icctvzone-wholesales DAHUA NVR

best price of DAHUA camera

******

****************

More Information
Wired/Wireless	Wired
Outdoor use	Intdoor use
Focal Type	Motorized Zoom
Day/Night	D/N IR
Factor	Dome
Max Resolution	2 MP
