IPC-PF83230-A180-DAHUA DH-IPC-PF83230-A180 4x8MP Multi-Sensor Panoramic Bullet Network Camera With Support 180-degree panoramic view Starlight Technology HEVC(H.265) IPC-PF83230-A180

In stock

SKU

IPC-PF83230-A180-1

Rating:

100% of 100

1 Review Add Your Review

$3,454.56

IPC-PF83230-A180

4x8MP Multi-Sensor Panoramic Bullet Network Camera

> Four 1/1.8” 8Megapixel progressive scan CMOS
> H.265/H.264 triple-stream encoding
> Max 25fps@8640x3840
> Support 180-degree panoramic view

> Day/Night(ICR), 3DNR, AWB, AGC, BLC

> Micro SD memory, IP67, IK10

>DAHUA Logo,English firmware
>100% original products manufactured by DAHUA

Special Note:

Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee

Skip to the end of the images gallery

Skip to the beginning of the images gallery

IPC-PF83230-A180-DAHUA DH-IPC-PF83230-A180 4x8MP Multi-Sensor Panoramic Bullet Network Camera With Support 180-degree panoramic view Starlight Technology HEVC(H.265) IPC-PF83230-A180

IPC-PF83230-A180

4x8MP Multi-Sensor Panoramic Bullet Network Camera

> Four 1/1.8” 8Megapixel progressive scan CMOS
> H.265/H.264 triple-stream encoding
> Max 25fps@8640x3840
> Support 180-degree panoramic view

> Day/Night(ICR), 3DNR, AWB, AGC, BLC

> Micro SD memory, IP67, IK10

>,English firmware
>100% original products manufactured by DAHUA

IPC-PF83230-A180-DAHUA DH-IPC-PF83230-A180 4x8MP Multi-Sensor Panoramic Bullet Network Camera With Support 180-degree panoramic view Starlight Technology HEVC(H.265) IPC-PF83230-A180 System Overview

The multi-sensor camera provides added flexibility for capturing wide area video surveillance. With four 2MP adjustable lenses can provide a flexible choice of the angle, the camera can replace multiple single-sensor cameras providing a higher return on investment. The multi-sensor camera features contrast, backlight compensation, white balance, and resolution control to create a crystal-clear image even in the most challenging lighting conditions.

IPC-PF83230-A180-DAHUA DH-IPC-PF83230-A180 4x8MP Multi-Sensor Panoramic Bullet Network Camera With Support 180-degree panoramic view Starlight Technology HEVC(H.265) IPC-PF83230-A180 Functions

Starlight Technology Starlight Technology

Featuring Starlight Technology, this camera is ideal for applications with challenging lighting conditions. Its low-light performance delivers usable video with minimal ambient light. Even in extreme low-light conditions, Starlight Technology is capable of delivering color images in near complete darkness (less than 0.01 lux).

Wide Dynamic Range

Embeded with industry leading wide dynamic range (WDR) technology, vivid picutures are achieved even in the most intense contrast lighting conditions. For applications with both bright and low lighting conditions that change quickly, True WDR (120dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

Intelligent Video System (IVS)

Environmental

With a temperature range of -30 °C to +60 °C (-22 °F to +140 °F), the camera is designed for extreme temperature environments. The camera complies to an IK10 impact rating making it capable of withstanding the equivalent of 55 kg (120 lbs) of force. Subjected and certified to rigorous dust and water immersion tests, the IP67 rating makes it suitable for demanding outdoor applications. For enviorments with rain, sleet, snow and fog, an integrated wiper provides users with clear visibility at all times.

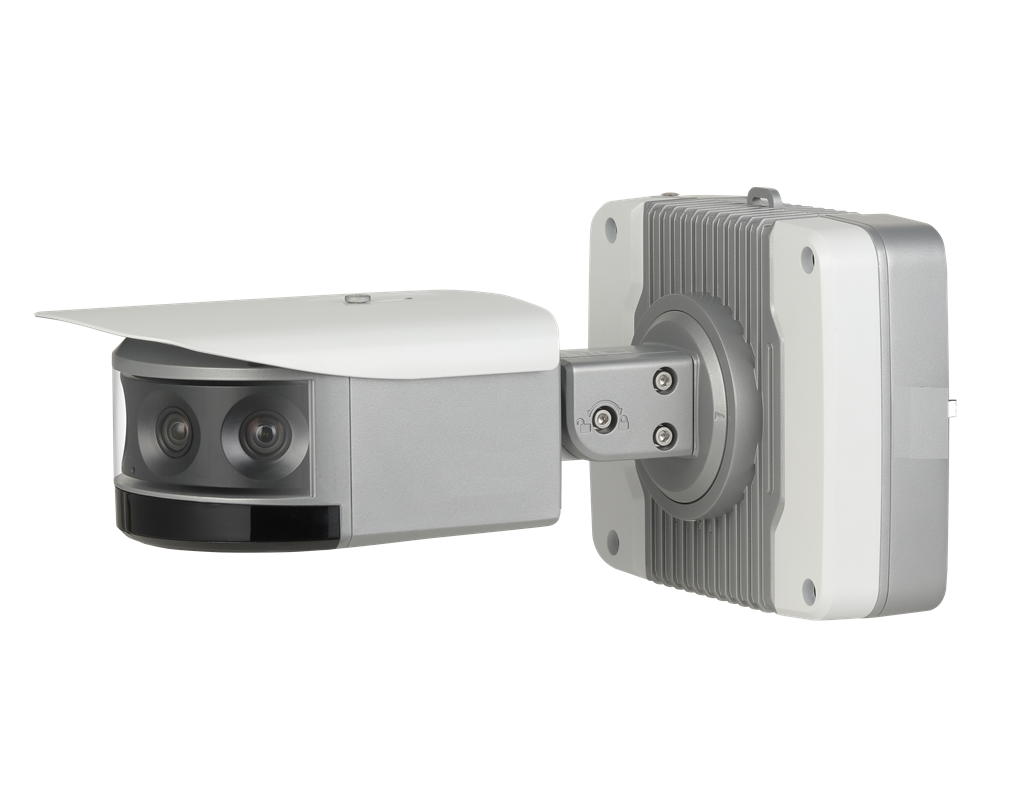

IPC-PF83230-A180-DAHUA DH-IPC-PF83230-A180 4x8MP Multi-Sensor Panoramic Bullet Network Camera With Support 180-degree panoramic view Starlight Technology HEVC(H.265) IPC-PF83230-A180 Picture

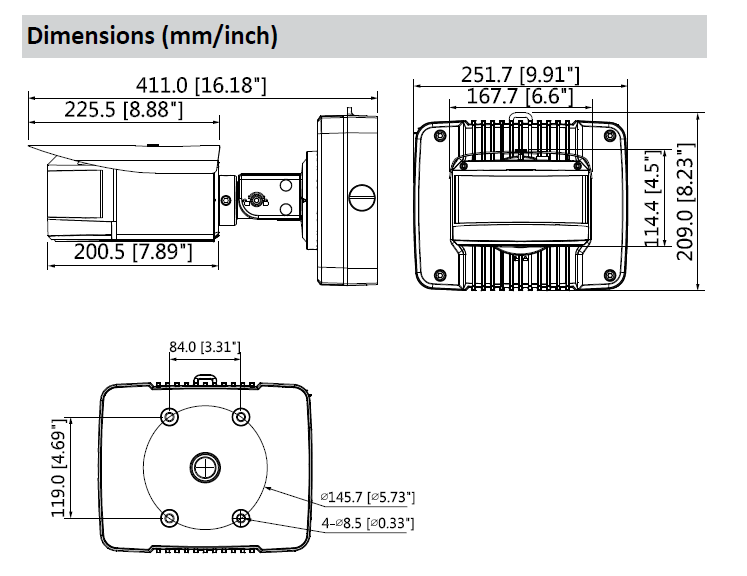

IPC-PF83230-A180-DAHUA DH-IPC-PF83230-A180 4x8MP Multi-Sensor Panoramic Bullet Network Camera With Support 180-degree panoramic view Starlight Technology HEVC(H.265) IPC-PF83230-A180 Dimension

IPC-PF83230-A180 without logo Dimension

IPC-PF83230-A180-DAHUA DH-IPC-PF83230-A180 4x8MP Multi-Sensor Panoramic Bullet Network Camera With Support 180-degree panoramic view Starlight Technology HEVC(H.265) IPC-PF83230-A180 Installation

IPC-PF83230-A180-DAHUA DH-IPC-PF83230-A180 4x8MP Multi-Sensor Panoramic Bullet Network Camera With Support 180-degree panoramic view Starlight Technology HEVC(H.265) IPC-PF83230-A180 Specifications

Technical Specifications

Camera

Image Sensor

Four 1/1.8” 8Megapixel progressive scan CMOS

Effective Pixels

8640(H)x3840(V)

RAM/ROM

3072MB/384MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.009Lux/F2.4( Color,1/3s,30IRE)

0.05Lux/F2.4( Color,1/30s,30IRE)

0.005Lux/F2.4( B/W,1/3s,30IRE)

0.03Lux/F2.4( B/W,1/30s,30IRE)

S/N Ratio

More than 50dB

IR Distance

N/A

IR On/Off Control

N/A

IR LEDs

N/A

Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

4.5mm

Max. Aperture

F2.4

Angle of View

H: 180˚, V:80˚

Optical Zoom

N/A

Focus Control

Fixed

Close Focus Distance

N/A

DORI Distance

Lens

Detect

Observe

Recognize

Identify

4.5mm

90m(295ft)

36m(118ft)

18m(59ft)

9m(30ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~355˚

Intelligence

Event Trigger

Network disconnection , IP address conflict, Illegal Access,Storage anomaly

IVS

N/A

Advanced Intelligent Functions

N/A

Video

Compression

H.265/H.264/H.264B/H.264H/MJPEG(Sub Stream)

Smart Codec

N/A

Streaming Capability

3 Streams

Resolution

8640x3840/3840×1680/2880×1264/ 1920x832/1284x560/1032X452

Frame Rate

Main Stream: 8640x3840 (1~25fps)

Sub Stream: 1032X452 (1 ~ 25fps)

Third Stream: 1920x832 (1 ~ 25fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.265: 3840Kbps~ 32768Kbps

H.264: 10752Kbps~ 32768Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / DWDR

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

N/A

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization(EIS)

N/A

Smart IR

N/A

Defog

N/A

Digital Zoom

16x

Flip

N/A

Mirror

N/A

Privacy Masking

N/A

Audio

Compression

G.711a/G.711Mu/AAC/ G.726

Network

Ethernet

RJ-45 (100/1000Base-T)

Protocol

HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;

FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;

NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;SNMP;TLS

Interoperability

API

Streaming Method

Unicast / Multicast

Max. User Access

7 Users/20 Users

Edge Storage

NAS

Local PC for instant recording

Mirco SD card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

N/A

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

N/A

Audio Interface

2/1 channel In/Out

RS485

N/A

Alarm

2 channel In: 5mA 5VDC

2 channel Out: 1A 30VDC / 0.5A 50VAC

Electrical

Power Supply

DC36V

Power Consumption

<35W

Environmental

Operating Conditions

-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH

Storage Conditions

-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

IK10

Construction

Casing

Metal

Dimensions

411mm×251.7mm×114.4mm

(16.18” ×9.91” ×4.5”)

Net Weight

6.9kg(15.2lb)

Gross Weight

10kg(22lb)

***

Icctvzone-wholesales DAHUA IP Cameras
Icctvzone IP surveillance
Icctvzone-wholesales DAHUA NVR

best price of DAHUA camera

***********

More Information
Wired/Wireless	Wired
Outdoor use	Intdoor use
Focal Type	Fixed
Day/Night	D/N IR
Max Resolution	8 MP
