IPC-PDB4830-B360 - DAHUA DH-IPC-PDB4830-B360 4x2MP Panoramic Dome Network Camera With Starlight Technology Intelligent Video System (IVS) HEVC (H.265) IPC-PDB4830-B360

In stock
SKU
IPC-PDB4830-B360
Rating:
100% of 100
$224.40

IPC-PDB4830-B360

4x2MP Panoramic Dome Network Camera

> Four 1/2.8” 2Megapixel progressive scan STARVISTM CMOS
> H.265&H.264 dual-stream encoding
> 25fps@2M(1920×1080)
> DWDR, Day/Night(Electronic), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.8 mm fixed lens (3.6mm optional)
> Micro SD memory, IP67, IK10, PoE

> without Logo,English firmware
> 100% original products manufactured by DAHUA

Special Note:
Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee

IPC-PDB4830-B360 - DAHUA DH-IPC-PDB4830-B360 4x2MP Panoramic Dome Network Camera With Starlight Technology Intelligent Video System (IVS) HEVC (H.265) IPC-PDB4830-B360

IPC-PDB4830-B360

4x2MP Panoramic Dome Network Camera

> Four 1/2.8” 2Megapixel progressive scan STARVISTM CMOS
> H.265&H.264 dual-stream encoding
> 25fps@2M(1920×1080)
> DWDR, Day/Night(Electronic), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.8 mm fixed lens (3.6mm optional)
> Micro SD memory, IP67, IK10, PoE

> without Logo,English firmware
> 100% original products manufactured by DAHUA



IPC-PDB4830-B360 - DAHUA DH-IPC-PDB4830-B360 4x2MP Panoramic Dome Network Camera With Starlight Technology Intelligent Video System (IVS) HEVC (H.265) IPC-PDB4830-B360 System Overview



The multi-sensor camera provides added flexibility for capturing wide area video surveillance. With four 2MP adjustable lenses can provide a flexible choice of the angle, the camera can replace multiple single-sensor cameras providing a higher return on investment. The multi-sensor camera features contrast, backlight compensation, white balance, and resolution control to create a crystal-clear image even in the most challenging lighting conditions.

DAHUA DH-PSDW81642M-A360

IPC-PDB4830-B360 - DAHUA DH-IPC-PDB4830-B360 4x2MP Panoramic Dome Network Camera With Starlight Technology Intelligent Video System (IVS) HEVC (H.265) IPC-PDB4830-B360 Functions

Multi-lens camera with 180 degree panoramic view

Starlight Technology

Featuring Dahua’s Starlight Technology, this camera is ideal for applications with challenging lighting conditions. Its low-light performance delivers usable video with minimal ambient light. Even in extreme low-light conditions, Starlight Technology is capable of delivering color images in near complete darkness (less than 0.01 lux).

Starlight Technology

Intelligent Video System (IVS)

With built-in intelligent video analytics, the camera has the ability to detect and analyze moving objects for improved video surveillance. The camera provides optional standard intelliegence at the edge allowing detection of multiple object behaviors such as abandoned or missing objects. IVS also supports Tripwire analytics, allowing the camera to detect when a pre-determined line has been crossed, ideal for business intelligence, and Facial Detection, for searching or identification of individuals.

Environmental

With a temperature range of -40 °C to +60 °C (-40 °F to +140 °F), the camera is designed for extreme temperature environments. The camera complies to an IK10 impact rating making it capable of withstanding the equivalent of 55 kg (120 lbs) of force. Subjected and certified to rigorous dust and water immersion tests, the IP67 rating makes it suitable for demanding outdoor applications. For enviorments with rain, sleet, snow and fog, an integrated wiper provides users with clear visibility at all times.

HEVC (H.265) H.265 ITU-T VCEG is a new video coding standard. H.265 Following standard developed around the existing video coding standard H.264 , some retain the original technology , while some of the relevant technology to improve the new technology uses advanced technology to improve the relationship between the code stream , encoding quality , and the delay between algorithm complexity , optimize settings specific contents include : Improve compression efficiency , improve the robustness and error recovery capabilities, real-time to reduce the delay, reduce channel acquisition time and a random access delay , reduce complexity , etc

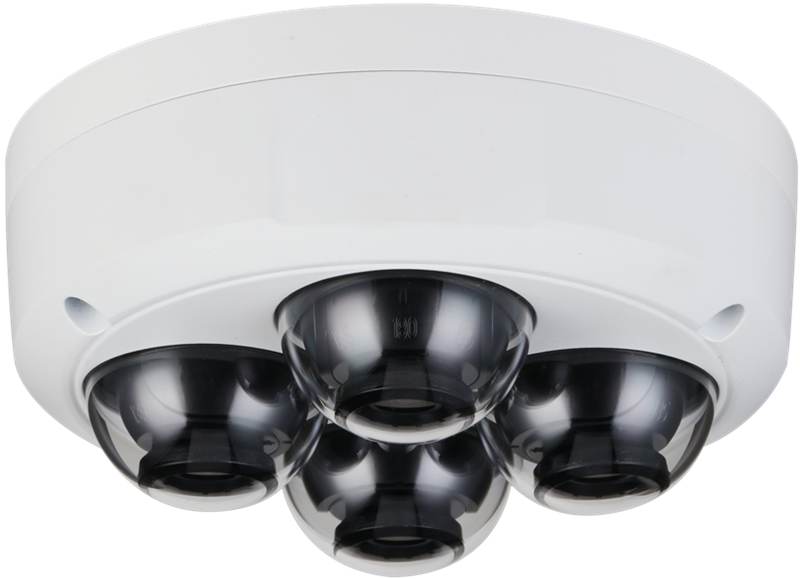

IPC-PDB4830-B360 - DAHUA DH-IPC-PDB4830-B360 4x2MP Panoramic Dome Network Camera With Starlight Technology Intelligent Video System (IVS) HEVC (H.265) IPC-PDB4830-B360 Picture


DAHUA DH-IPC-PDB4830-B360

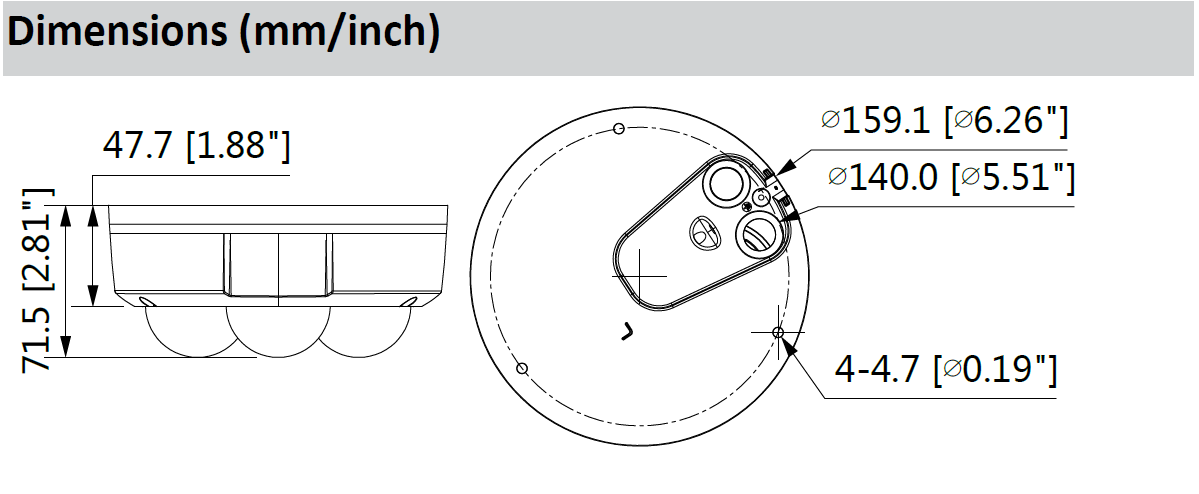

IPC-PDB4830-B360 - DAHUA DH-IPC-PDB4830-B360 4x2MP Panoramic Dome Network Camera With Starlight Technology Intelligent Video System (IVS) HEVC (H.265) IPC-PDB4830-B360 Dimension

DAHUA DH-IPC-PDB4830-B360

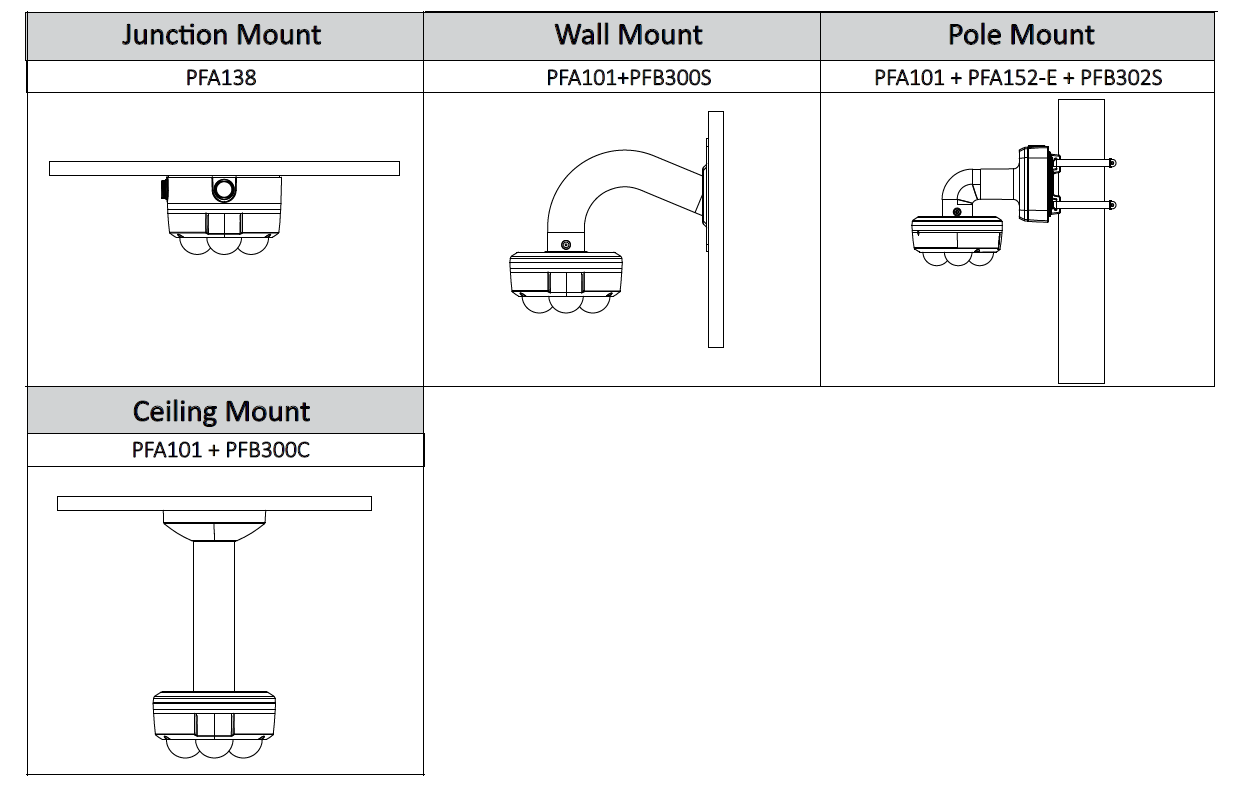

IPC-PDB4830-B360 - DAHUA DH-IPC-PDB4830-B360 4x2MP Panoramic Dome Network Camera With Starlight Technology Intelligent Video System (IVS) HEVC (H.265) IPC-PDB4830-B360 Installation

 DAHUA DH-IPC-PDB4830-B360

IPC-PDB4830-B360 - DAHUA DH-IPC-PDB4830-B360 4x2MP Panoramic Dome Network Camera With Starlight Technology Intelligent Video System (IVS) HEVC (H.265) IPC-PDB4830-B360 Specification



Technical Specifications

***********

Camera

Image Sensor

Four 1/2.8” 2Megapixel progressive scan CMOS

Effective Pixels

1920(H)x1080(V)

RAM/ROM

1024MB/128MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3(4)~1/100000s

Minimum Illumination

0.006Lux/F1.85( Color,1/3s,30IRE)

0.05Lux/1.85( Color,1/30s,30IRE)

0Lux/F1.85(IR on)

IR Distance

N/A

IR On/Off Control

N/A

IR LEDs

N/A

Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

2.8mm;3.6mm

Max. Aperture

F1.85

Angle of View

H: 99° V:56°; V:87° ~47°

Aperture Type

Fixed

Close Focus Distance

0.5m(1.64ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8mm

37m(121ft)

15m(49ft)

8m(26ft)

4m(13ft)

3.6mm

53m(174ft)

21m(69ft)

11m(36ft)

5m(16ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan:0˚~360˚; Tilt:0˚~80˚; Rotation:0˚~355˚

Intelligence

Event Trigger

Motion detection, Video tampering, Scene changing,

Network disconnection, Ip address conflict, Illegal

access, Storage anomaly

IVS

Tripwire, Intrusion

Video

Compression

H.265/H.264/H.264B/H.264H/MJPEG(sub stream)

Smart Codec

Support H.265+/H.264+

Streaming Capability

2 Streams

Resolution

1080P(1920×1080)/1.3M(1280x960)/ 720P(1280x720)/D1(704×576/704x480)/ CIF(352×288/352×240)

Frame Rate

Main Stream: 1080P(1~25fps)

Sub Stream: D1(1~25fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 32~8192Kbps

H.265: 19~4608Kbps

Day/Night

Electronic

BLC Mode

BLC / HLC / DWDR

White Balance

Auto/Manual

Gain Control

Auto/Manual

Construction

Casing

Metal

Dimensions

71.5 mm×Φ159.1 mm

Net Weight

0.85kg (1.87lb)

Gross Weight

1.05kg (2.31lb)

Noise Reduction

3D DNR

Motion Detection

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization (EIS)

N/A

Smart IR

N/A

Defog

N/A

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

G.711a/ G.711Mu/ AAC/ G.726/ MP2L2/ G.722

Network

Ethernet

RJ-45 (100/1000Base-T)

Protocol

HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP; QoS; UPnP; NTP; Bonjour; HTTPS; 802.1x; NAS

Interoperability

ONVIF Profile S&G, API, CGI

Streaming Method

Unicast / Multicast

Max. User Access

10 Users /20 Users

Edge Storage

NAS

Local PC for instant recording

Mirco SD card 256GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Certifications

Certifications

CE-LVD: EN60950-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B

Interface

Video Interface

N/A

Audio Interface

1/1 channel In/Out

RS485

N/A

Alarm

1 channel In: 500mA 5VDC

1 channel Out: 1A 30VDC

Electrical

Power Supply

DC12V, PoE(802.3af)(Class 0)

Power Consumption

DC 12V: 5.3W 6.2W(H.265+DWDR+Audio+Alarm)

PoE: 6.4W 7.4W(H.265+DWDR+Audio+Alarm)

Environmental

Operating Conditions

-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH

Stroage Conditions

-30° C ~ +70° C (-22° F ~ +158° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

IK10

***********

**

*

*

Icctvzone-wholesales DAHUA IP Cameras
Icctvzone IP surveillance
Icctvzone-wholesales DAHUA NVR

best price of DAHUA camera

***

*

**

More Information
Wired/Wireless Wired
Outdoor use Intdoor use
Focal Type Fixed
Day/Night Low light
Max Resolution 8 MP
