IPC-MDW4330-M12 – DAHUA DH-IPC-MDW4330-M12 3MP IR Mini Eyeball Network Camera with EN50155, E-MARK specially designed for trains, buses IPC-MDW4330-M12

In stock

SKU

IPC-MDW4330-M12

$119.69

IPC-MDW4330-M12

3MP IR Mini Eyeball Network Camera

> 1/3” 3Megapixel progressive scan CMOS
> H.265&H.264 triple-stream encoding
> 25fps@3M(2048×1536)
> DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC,
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.1mm fixed lens (2.8mm, 3.6mm optional)
> Max. IR LEDs Length 20m
> Micro SD memory
> EN50155, E-MARK(ECE-Regulation No.10)

> DAHUA Logo,English firmware
> 100% original products manufactured by DAHUA

The delivery time is 25 working days if no stock.

Special Note:

Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee

Skip to the end of the images gallery

Skip to the beginning of the images gallery

IPC-MDW4330-M12 – DAHUA DH-IPC-MDW4330-M12 3MP IR Mini Eyeball Network Camera with EN50155, E-MARK specially designed for trains, buses IPC-MDW4330-M12

IPC-MDW4330-M12

3MP IR Mini Eyeball Network Camera

> ,English firmware
> 100% original products manufactured by DAHUA

IPC-MDW4330-M12 – DAHUA DH-IPC-MDW4330-M12 3MP IR Mini Eyeball Network Camera with EN50155, E-MARK specially designed for trains, buses IPC-MDW4330-M12 System Overview

The mobile camera is specially designed for trains, buses and other vehicles. Due to its high-specification design, the mobile camera meets the requirements of vehicle standards such as EN50155, E-MARK(ECE-Regulation No.10), making the camera able to withstand the tough conditions like vibrations, shocks and wide range temperature fluctuations.

DAHUA Integrated security solution for bus

IPC-MDW4330-M12 – DAHUA DH-IPC-MDW4330-M12 3MP IR Mini Eyeball Network Camera with EN50155, E-MARK specially designed for trains, buses IPC-MDW4330-M12 Functions

EN50155 EN50155 is an European standard for Railway applications- Electronic equipment used on rolling stock. The mobile camera meets the requirements of EN50155, making the camera able to withstand the tough conditions like vibrations, shocks and other harsh vehicle environment, to meet the needs of vehicle monitoring.

Protection

Supporting ±30% input voltage tolerance, this camera suits even the most unstable conditions for outdoor applications. Its 4KV lightning rating provides protectection against the camera and its structure from the effects of lightning.

Environmental

cameras operate in extreme temperature environments, rated for use in temperatures from -30° C to +60° C (-22° F to +140° F) with 95% humidity.

Smart H.265+

Deliver high quality video without straining the network, Smart H.265+ is the optimized implementation of H.265. The Smart H.265+ encoding technology includes a scene adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction, providing saving of up to 70% of bandwidth and storage when compared with standard H.265.

HEVC (H.265)

H.265 ITU-T VCEG is a new video coding standard. H.265 Following standard developed around the existing video coding standard H.264 , some retain the original technology , while some of the relevant technology to improve the new technology uses advanced technology to improve the relationship between the code stream , encoding quality , and the delay between algorithm complexity , optimize settings specific contents include : Improve compression efficiency , improve the robustness and error recovery capabilities, real-time to reduce the delay, reduce channel acquisition time and a random access delay , reduce complexity , etc

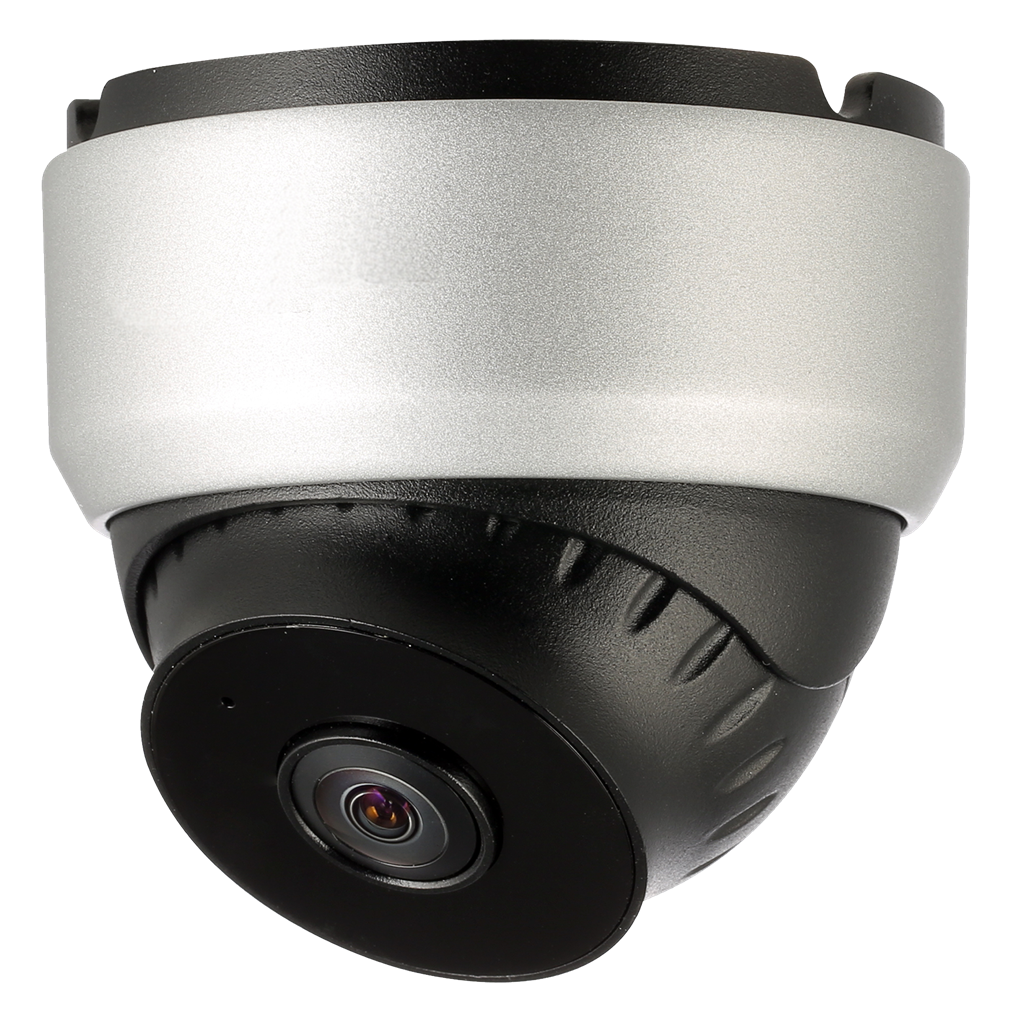

IPC-MDW4330-M12 – DAHUA DH-IPC-MDW4330-M12 3MP IR Mini Eyeball Network Camera with EN50155, E-MARK specially designed for trains, buses IPC-MDW4330-M12 Picture

IPC-MDW4330-M12 – DAHUA DH-IPC-MDW4330-M12 3MP IR Mini Eyeball Network Camera with EN50155, E-MARK specially designed for trains, buses IPC-MDW4330-M12 Dimension

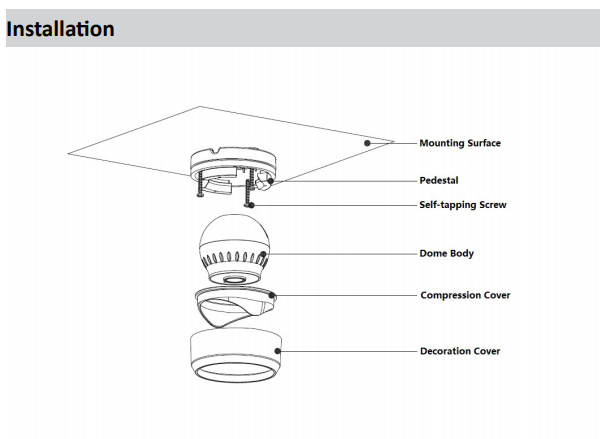

IPC-MDW4330-M12 – DAHUA DH-IPC-MDW4330-M12 3MP IR Mini Eyeball Network Camera with EN50155, E-MARK specially designed for trains, buses IPC-MDW4330-M12 Installation

IPC-MDW4330-M12 – DAHUA DH-IPC-MDW4330-M12 3MP IR Mini Eyeball Network Camera with EN50155, E-MARK specially designed for trains, buses IPC-MDW4330-M12 Specification

Technical Specifications

******

Camera

Image Sensor

1/3” 3Megapixel progressive scan CMOS

Effective Pixels

2048(H) x 1536(V)

RAM/ROM

512MB/16MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

2.1mm:

0.06Lux/F2.2 ( Color,1/3s,30IRE)

0.35Lux/2.2 ( Color,1/25s,30IRE)

0Lux/F2.2 (IR on)

2.8mm, 3.6mm:

0.04Lux/F2.0 ( Color,1/3s,30IRE)

0.25Lux/2.0 ( Color,1/25s,30IRE)

0Lux/F2.0 (IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 20m (65ft)

IR On/Off Control

Auto/ Manual

IR LEDs

Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

2.1mm (2.8mm, 3.6mm optional)

Max. Aperture

F2.2 (F2.0, F2.0)

Angle of View

H: 121° (86°, 64°), V: 87° (62°, 50°)

Optical Zoom

N/A

Focus Control

Fixed

Close Focus Distance

0.4m (0.7m, 1.3m)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.1 mm

38m(124ft)

15m(49ft)

7m(23ft)

4m(13ft)

2.8 mm

50m(164ft)

20m(65ft)

10m(33ft)

5m(16ft)

3.6 mm

72m(236ft)

29m(95ft)

14m(46ft)

7m(23ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan:0˚~360˚; Tilt:±40˚; Rotation:0˚~360˚

Intelligence

Event Trigger

Motion detection, Video tampering, Scene changing,

Network disconnection, Ip address conflict, Illegal

access, Storage anomaly

IVS

Tripwire, Intrusion, Object Abandoned/Missing

Advanced Intelligent Functions

Face Detection

Video

Compression

H.265/H.264H/MJPEG(Sub Stream)

Smart Codec

Support H.265+/H.264+

Streaming Capability

3 Streams

Resolution

3M(2048×1536)/1080P(1920×1080)/1.3M(1280x960)/

720P(1280×720)/D1(704×576/704×480)/

VGA(640×480)/CIF(352×288/352×240)

Frame Rate

Main Stream: 3M(1~25fps)

Sub Stream 1: D1(1~25fps)

Sub Stream 2: 1080P(1~7fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 32~10240Kbps

H.265: 12~8960Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / DWDR

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization (EIS)

N/A

Smart IR

Support

Defog

N/A

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

G.711a/G.711Mu/AAC/ G.726

Network

Ethernet

M12 Connector (10/100Base-T)

Protocol

HTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;

FTP;DHCP;DNS;DDNS;PPPoE;IPV4/V6;QoS;UPnP;

NTP;Bonjour;IEEE 802.1X;Multicast;ICMP;IGMP;TLS;

Interoperability

ONVIF Profile S&G, API

Streaming Method

Unicast / Multicast

Max. User Access

10 Users /20 Users

Edge Storage

NAS

Local PC for instant recording

Mirco SD card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

E-mark(ECE-Regulation No.10)

EN50155(Environment)

Interface

Video Interface

N/A

Audio Interface

1 Built-in Mic

RS485

N/A

Alarm

N/A

Electrical

Power Supply

DC 12V (M12 Connector)

Power Consumption

< 4W

Environmental

Operating Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Stroage Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection

N/A

Vandal Resistance

N/A

Construction

Casing

Metal

Dimensions

Φ77.16mm×72.27mm (Φ3.03”×2.84”)

Net Weight

0.25Kg (0.55lb)

Gross Weight

0.37Kg (0.81lb)

****

***
