IPC-HFW8630E-ZE – DAHUA DH-IPC-HFW8630E-ZE 6MP IR Bullet Network Camera with 1/1.8” 6Megapixel progressive scan STARVIS™ CMOS 4.1mm ~16.4mm zoom lens IPC-HFW8630E-ZE

In stock
SKU
IPC-HFW8630E-ZE
$429.56

IPC-HFW8630E-ZE

6MP IR Bullet Network Camera

> 1/1.8” 6Megapixel progressive scan STARVIS™ CMOS
> H.265&H.264 triple-stream encoding
> 25/30fps@6M(3072×2048)
> DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 4.1mm ~16.4mm zoom lens
> Max. IR LEDs Length 50m
> Micro SD memory,IP67,IK10,PoE+
> without Logo,English firmware
> 100% original products manufactured by DAHUA

DAHUA IPC-HFW8630E-ZE

The delivery time is 25 working days usually,

some times can complete early, only 10-15days.

Special Note:
Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee

IPC-HFW8630E-ZE – DAHUA DH-IPC-HFW8630E-ZE 6MP IR Bullet Network Camera with 1/1.8” 6Megapixel progressive scan STARVIS™ CMOS 4.1mm ~16.4mm zoom lens IPC-HFW8630E-ZE without logo

IPC-HFW8630E-ZE

6MP IR Bullet Network Camera

> 1/1.8” 6Megapixel progressive scan STARVIS™ CMOS
> H.265&H.264 triple-stream encoding
> 25/30fps@6M(3072×2048)
> DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 4.1mm ~16.4mm zoom lens
> Max. IR LEDs Length 50m
> Micro SD memory,IP67,IK10,PoE+

> without Logo,English firmware
> 100% original products manufactured by DAHUA

DAHUA IPC-HFW8630E-ZE



IPC-HFW8630E-ZE – DAHUA DH-IPC-HFW8630E-ZE 6MP IR Bullet Network Camera with 1/1.8” 6Megapixel progressive scan STARVIS™ CMOS 4.1mm ~16.4mm zoom lens IPC-HFW8630E-ZE without logo System Overview

Ultra series adopts high performance DSP and Sony advanced image sensor technology, which can provide excellent image effects for users. With Dahua advanced software algorithm, the series is able to support people counting and heat map which brings extra business analysis value for customers. In addition, IP67, IK10 and heater compliance ensure the series can be applied in a harsher environment.

IPC-HFW8630E-ZE – DAHUA DH-IPC-HFW8630E-ZE 6MP IR Bullet Network Camera with 1/1.8” 6Megapixel progressive scan STARVIS™ CMOS 4.1mm ~16.4mm zoom lens IPC-HFW8630E-ZE without logo Functions

ePoE technology

The ePoE technology  , designed internally, adopts advanced 2D-PAM3 coding modulation from physical layer, and realizes full duplex transmission over 800 meters at the speed of 10Mbps, or 300 meters at the speed of 100Mbps via Cat 5 or coaxial cable media. Besides, it supports PoE and PoC power supply technology which has greatly simplified construction and wiring. Dahua ePoE technology offer a new way to accomplish long distance transmission between IP camera and network switch. It allows more flexible surveillance system design, improves reliability and saves construction and wiring cost.

ePoE technology  The ePoE technology  , designed internally, adopts advanced 2D-PAM3 coding modulation from physical layer,Business intelligent analysis (People counting, Heatmap)

Camera also supports more advanced intelligent features such as people counting and heat map besides basic IVS functions. These two functions can be applied to business intelligence and bring extra values to customers. It is available to acquire daily, weekly, monthly and yearly people flow via people counting and output data report. Heat map can be based on a moving object in time of space movement for analysis, find the most active area and output the report, which is to provide valuable data support for commercial applications.

Smart Codec (H.265+ & H.264+)

Smart Codec is the optimized implementation of standard video compression (H.265 & H.264) that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart Codec technology reduces bit rate

Environmental & Protection

With a temperature range of -40 °C to +60 °C (-40 °F to +140 °F), the camera is designed for extreme temperature environments. Supporting ±25% input voltage tolerance, this camera suits even the most unstable conditions for outdoor applications. Its 6KV lightning rating provides effective protection for both the camera and its structure against lightning. Subjected and certified to rigorous dust and immersion tests (IP67) and impact tests (IK10), The camera complies with an IK10 impact rating making it capable of withstanding the equivalent of 5 kg (11.02 lbs) of force dropped from a height of 40 cm (15.75 in.)

IPC-HFW8630E-ZE – DAHUA DH-IPC-HFW8630E-ZE 6MP IR Bullet Network Camera with 1/1.8” 6Megapixel progressive scan STARVIS™ CMOS 4.1mm ~16.4mm zoom lens IPC-HFW8630E-ZE without logo Picture

 DAHUA DH-IPC-HFW8630E-ZE

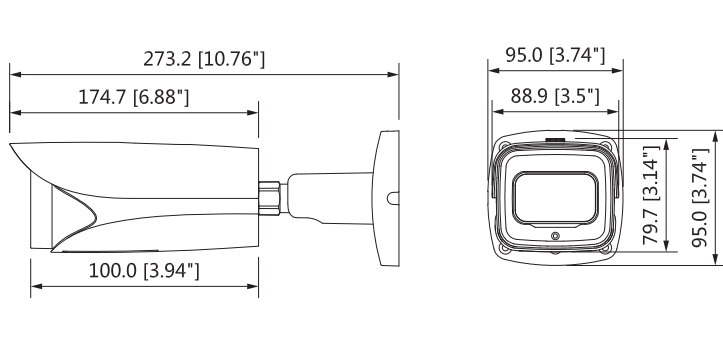

IPC-HFW8630E-ZE – DAHUA DH-IPC-HFW8630E-ZE 6MP IR Bullet Network Camera with 1/1.8” 6Megapixel progressive scan STARVIS™ CMOS 4.1mm ~16.4mm zoom lens IPC-HFW8630E-ZE without logo Dimension

IPC-HFW8630E-ZE

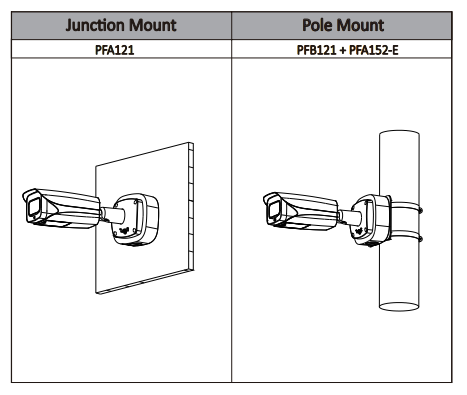

IPC-HFW8630E-ZE – DAHUA DH-IPC-HFW8630E-ZE 6MP IR Bullet Network Camera with 1/1.8” 6Megapixel progressive scan STARVIS™ CMOS 4.1mm ~16.4mm zoom lens IPC-HFW8630E-ZE without logo Installation



IPC-HFW8630E-ZE


IPC-HFW8630E-ZE

IPC-HFW8630E-ZE – DAHUA DH-IPC-HFW8630E-ZE 6MP IR Bullet Network Camera with 1/1.8” 6Megapixel progressive scan STARVIS™ CMOS 4.1mm ~16.4mm zoom lens IPC-HFW8630E-ZE without logo Specification



Technical Specifications

****

Camera

Image Sensor

1/1.8” 6Megapixel progressive scan CMOS

Effective Pixels

3072(H)x2048(V)

RAM/ROM

1024MB/128MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.01Lux/F1.53(Color,1/3s,30IRE)

0.1Lux/F1.53(Color,1/30s,30IRE)

0Lux/F1.53(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 50m(164ft)

IR On/Off Control

Auto/ Manual

IR LEDs

4

Lens

Lens Type

Motorized /Auto Iris(HALL)

Mount Type

Board-in

Focal Length

4.1~16.4mm motorized

Max. Aperture

F1.53

Angle of View

H: 105°~34°, V:68°~23°

Optical Zoom

4x

Focus Control

Motorized

Predictive Focus Algorithm (PFA)

Support

Close Focus Distance

0.5m(1.64ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

88m(289ft)

35m(115ft)

18m(59ft)

9m(30ft)

T

213m(699ft)

85m(279ft)

43m(141ft)

21m(69ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚

Intelligence

Event Trigger

Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access,Storage anomaly

IVS

Tripwire, Intrusion, Object Abandoned/Missing

Advanced Intelligent Functions

Face Detection, People Counting, Heat Map

Video

Compression

H.265/H.264/H.264B/H.264H/MJPEG(Sub Stream)

Smart Codec

Support H.265+/H.264+

Streaming Capability

3 Streams

Resolution

6M(3072x2048)/ 5M(2560x1920)/ 3M(2048x1536)/ 3M(2304x1296)/ 1080P(1920×1080)/

1.3M(1280x960)/ 720P(1280x720D1(704×576/ 704x480) / VGA(640x480)/ CIF(352×288/342x240)

Frame Rate

Main Stream: 6M(1~25/30fps)

Sub Stream: D1 (1 ~ 25/30fps)

Third Stream: 1080P(1~25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 24~ 16384Kbps H.265: 14~ 9984Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / DWDR/ SSA

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization (EIS)

Support

Smart IR

Support

Defog

Support

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

G.711a/G.711Mu/AAC/ G.726

Network

Ethernet

RJ-45 (100/1000Base-T)

Protocol

HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;

FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;

NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;SNMP;TLS

Interoperability

ONVIF Profile S&G, API

Streaming Method

Unicast / Multicast

Max. User Access

10 Users/20 Users

Edge Storage

NAS

Local PC for instant recording

Mirco SD card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Certifications

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

1 Port(For adjustment only)

Audio Interface

1/1 channel In/Out

RS485

N/A

Alarm

2 channel In: 5mA 5VDC

1 channel Out: 1A 30VDC / 0.5A 50VAC

Electrical

Power Supply

DC12V, PoE+(802.3at)(Class 4)

Power Consumption

<13W

Environmental

Operating Conditions

-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH

Storage Conditions

-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

IK10

Construction

Casing

Metal

Dimensions

273.2mm×95.0mm×95.0mm (10.76×3.74×3.74)

Net Weight

1.12Kg (2.47lb)

Gross Weight

1.52Kg (3.35lb)

**

***********

****

**

**

Icctvzone-wholesales DAHUA IP Cameras
Icctvzone IP surveillance
Icctvzone-wholesales DAHUA NVR

best price of DAHUA camera

*

*

More Information
Wired/Wireless Wired
Outdoor use Outdoor use
Focal Type Motorized Zoom
Day/Night Low light
Factor Bullet
Max Resolution 6 MP
