IPC-HFW5842E-ZE-S2- DAHUA DH-IPC-HFW5842E-ZE-S2 8 MP IR Vari-focal Bullet WizMind Network Camera IPC-HFW5842E-ZE-S2

In stock

SKU

IPC-HFW5842E-ZE-S2

Be the first to review this product

$286.00

IPC-HFW5842E-ZE-S2

8 MP IR Vari-focal Bullet WizMind Network Camera

> 8-MP 1/1.8" CMOS image sensor, low illuminance, and high definition image.

> Outputs max. 8 MP (3840× 2160) @30 fps.

> Max. IR distance: 60 m.

> ROI, SVC, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.

> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

> Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card.

> 12 VDC/PoE power supply.

> ePoE, IP67, IK10 protection.

> SMD 3.0

The delivery time is 15-25 working days

Special Note:

Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee

Enough stock, welcome to order

Skip to the end of the images gallery

Skip to the beginning of the images gallery

IPC-HFW5842E-ZE-S2- DAHUA DH-IPC-HFW5842E-ZE-S2 8 MP IR Vari-focal Bullet WizMind Network Camera IPC-HFW5842E-ZE-S2

IPC-HFW5842E-ZE-S2

8 MP IR Vari-focal Bullet WizMind Network Camera

> 8-MP 1/1.8" CMOS image sensor, low illuminance, and high definition image.

> Outputs max. 8 MP (3840× 2160) @30 fps.

> Max. IR distance: 60 m.

> ROI, SVC, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.

> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

> Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card.

> 12 VDC/PoE power supply.

> ePoE, IP67, IK10 protection.

> SMD 3.0

WizMind Series

WizMind is a wide range of project-oriented products that adopt industry-leading deep learning algorithms, such as IPC, NVR, PTZ, XVR, thermal camera and software platform. Focusing on customers’ needs, WizMind provides precise and reliable and comprehensive AI products for verticals.
Precise: Powered by AI chip and deep learning algorithms, WizMind delivers accurate detection and recognition of human and vehicle, enabling users to rapidly and precisely act on what really matters. In addition, it provides accurate and effective AI search to locate targets, and various human-based data for business analysis.
Reliable: Strict component selection to ensure the high product reliability. With thorough testing of front-end cameras, back-end device and platform, WizMind injects reliability into all of its solutions.
Comprehensive: Focusing on human and vehicle, WizMind provides various applications solutions such as face recognition, privacy protection, video metadata, stereo analysis, ANPR, illegal parking, etc. Moreover, WizMind combines deep learning algorithm with thermal imaging technology to help users achieve ultra-long distance monitoring in harsh environments, highly accurate non-contact temperature measurement with only ±0.3℃ temperature difference, and early detection of fire. wizmind AI

IPC-HFW5842E-ZE-S2- DAHUA DH-IPC-HFW5842E-ZE-S2 8 MP IR Vari-focal Bullet WizMind Network Camera IPC-HFW5842E-ZE-S2 System Overview

WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

DAHUA Smart Shop solution

With advanced deep learning algorithm, Dahua WizMind 7 Series network camera supports various intelligent functions and satisfies the requirements in different scenes. The camera can accurately recognize person, vehicle, and non-motor vehicle, face, ANPR, and liveness. This series camera has ultra starlight night version effect, and works with ultra-low stream. It supports dust-proof function, waterproof function and vandal-proof function, complying with the standards of IP67 and IK10 (Supported by some select models).

IPC-HFW5842E-ZE-S2- DAHUA DH-IPC-HFW5842E-ZE-S2 8 MP IR Vari-focal Bullet WizMind Network Camera IPC-HFW5842E-ZE-S2 Datasheets

IPC-HFW5842E-ZE-S2 Datasheets

IPC-HFW5842E-ZE-S2- DAHUA DH-IPC-HFW5842E-ZE-S2 8 MP IR Vari-focal Bullet WizMind Network Camera IPC-HFW5842E-ZE-S2 Picture

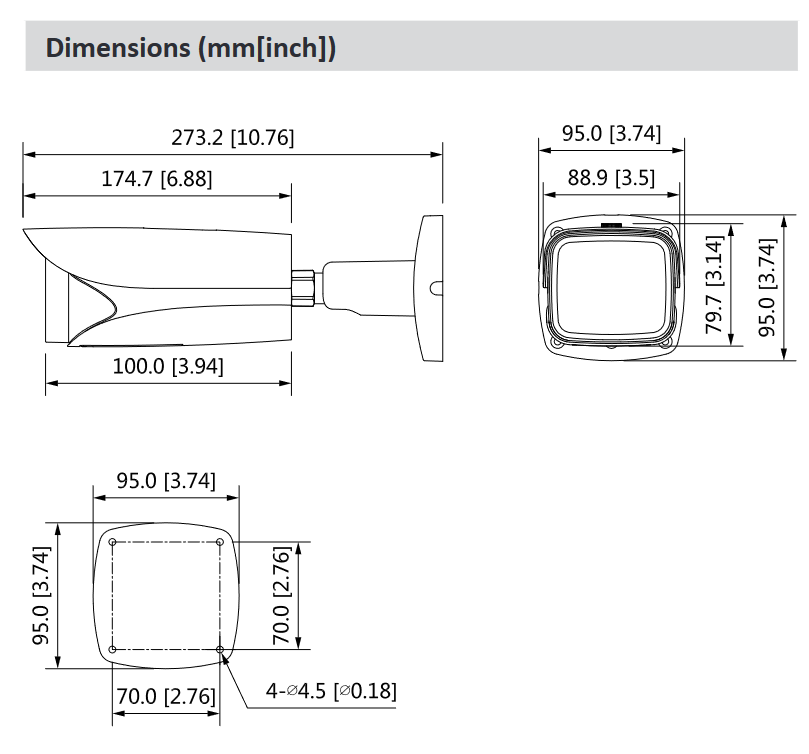

IPC-HFW5842E-ZE-S2- DAHUA DH-IPC-HFW5842E-ZE-S2 8 MP IR Vari-focal Bullet WizMind Network Camera IPC-HFW5842E-ZE-S2 Dimensions

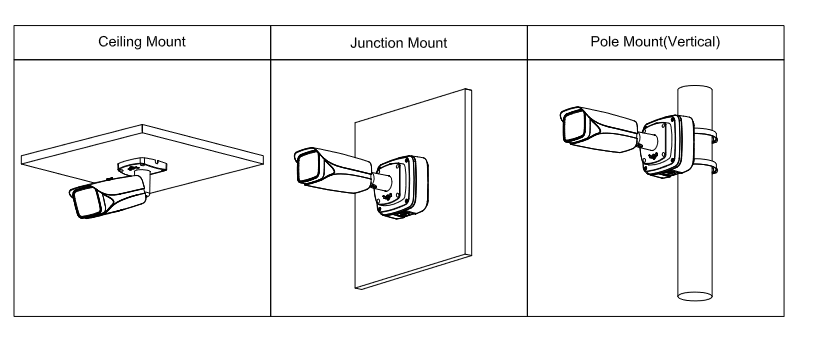

IPC-HFW5842E-ZE-S2- DAHUA DH-IPC-HFW5842E-ZE-S2 8 MP IR Vari-focal Bullet WizMind Network Camera IPC-HFW5842E-ZE-S2 Installation

IPC-HFW5842E-ZE-S2- DAHUA DH-IPC-HFW5842E-ZE-S2 8 MP IR Vari-focal Bullet WizMind Network Camera IPC-HFW5842E-ZE-S2 Technical Specifications

******

Camera
Image Sensor	1/1.8” CMOS
Max. Resolution	3840 (H) × 2160 (V)
ROM	128 MB
RAM	1 GB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Min. Illumination	0.004 lux@F1.4 (Color, 30 IRE) 0.0004 lux@F1.4 (B/W, 30 IRE) 0 lux (Illuminator on)
S/N Ratio	> 56 dB
Illumination Distance	60 m (196.9 ft)
Illuminator On/Off Control	Auto; Manual
Illuminator Number	4 (IR)
Lens
Lens Type	Motorized vari-focal
Lens Mount	φ14
Focal Length	2.7 mm–12.0 mm
Max. Aperture	F1.4
Field of View	Horizontal: 110.4°–45° Vertical: 57.8°–25.2° Diagonal: 133.8°–51.8°
Iris Control	Auto
Close Focus Distance	W/T:1.0 m (3.3 ft)
DORI Distance	Lens	Detect	Observe	Recognize	Identify
	W	86 m (282.2 ft)	34.4 m (112.9 ft)	17.2 m (56.4 ft)	8.6 m (28.2 ft)
	T	196 m (643.0 ft)	78.4 m (257.2 ft)	39.2 m (128.6 ft)	19.6 m (64.3 ft)
Smart Event
IVS	Abandoned object; missing object
Heat Map	Yes
Professional, intelligent
IVS (Perimeter Protection)	Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection
Face Detection	Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
People Counting	Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/monthly/daily reports. Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm. Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm.
Intelligent Search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec	Smart H.265+/H.264+
AI Coding	AI H.265; AI H.264
Video Frame Rate	Main stream: 3840× 2160 (1 fps–25/30 fps) Sub stream: D1 (1 fps–25/30 fps) Third stream: 1080p (1 fps–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability	3 streams
Resolution	3840 x 2160; 2592 x 1944; 2688 × 1520; 2560 × 1440; 2304 × 1296; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control	CBR/VBR
Video Bit Rate	H.264: 32 kbps–8192 kbps H.265: 32 kbps–8192 kbps
Day/Night	Auto (ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	120 dB
White Balance	Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control	Auto; manual
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Image Stabilization	Electronic Image Stabilization (EIS)
Defog	Yes
Image Rotation	0°/90°/180°/270°(Support 90°/270° with 4M resolution and lower)
Mirror	Yes
Privacy Masking	8 areas
Audio
Audio Compression	PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm Event	No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; defocus detection; scene changing; intrusion; tripwire; abandoned object; missing object; fast moving; parking detection; loitering detection; people gathering; input abnormal detection; intensity change detection; people counting; face detection; people counting in area; stay alarm; people No. exception detection; queue management
Network
Network Port	RJ-45 (10/100 Base-T)
SDK and API	Yes
Cyber Security	Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
Network Protocol	IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
Interoperability	ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P
User/Host	20 (Total bandwidth: 80 M)
Storage	FTP; SFTP; Micro SD card (Support max. 256 G); NAS
Browser	IE: IE8 and later Chrome Firefox
Management Software	Smart PSS; DSS; DMSS
Mobile Client	iOS; Android
Certification
Certifications	CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
Audio Input	1 channel (RCA port)
Audio Output	1 channel (RCA port)
Alarm Input	2 channels in: 5 mA 3V–5 VDC
Alarm Output	1 channels out: 300 mA 12 VDC
Power
Power Supply	12 VDC (±30%)/PoE (802.3af)/ePoE
Power Consumption	Basic power consumption: 6.4W (12V DC); 6.9W (PoE) Max. power consumption (H.265 + max. stream + intelligent function + IR LED + focus): 7.1W (12V DC); 7.9W (PoE)
Environment
Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)/Less than 95% RH
Storage Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Protection	IP67, IK10
Structure
Casing	Metal, plastic
Product Dimensions	273.2 mm × 95.0 mm × 95.0 mm (10.76” × 3.74” × 3.74”)
Net Weight	1.11 kg (2.44 lb)
Gross Weight	1.51 kg (3.33 lb)

********************************************

More Information
Wired/Wireless	Wired
Outdoor use	Intdoor use, Outdoor use
Focal Type	Motorized Zoom
Day/Night	Low light
Factor	Dome
Max Resolution	12 MP
