IPC-HFW5541T-AS-PV - DAHUA IPC-HFW5541T-AS-PV 5MP WDR IR Bullet AI Network Camera with People Counting Active Deterrence IR LEDs Length 60 m IPC-HFW5541T-AS-PV without logo

DH-IPC-HDBW44A1FN-AS 4MP IR Mini Dome Network Camera

IPC-HFW5541T-AS-PV

5MP WDR IR Bullet AI Network Camera

> 1/3” 4Megapixel progressive scan CMOS
> H.265&H.264 triple-stream encoding
> 25/30fps@4M(2688×1520)
> Smart Detection supported
> WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC,
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 3.6mm fixed lens (2.8mm, 6mm optional)
> Max. IR LEDs Length 20m
> Micro SD memory, IP67, IK10, PoE
> without Logo,English firmware
> 100% original products manufactured by DAHUA

IPC-HFW5541T-AS-PV - DAHUA IPC-HFW5541T-AS-PV 5MP WDR IR Bullet AI Network Camera with People Counting Active Deterrence IR LEDs Length 60 m IPC-HFW5541T-AS-PV without logo System Overview

Pro AI series contains Face Detection, Perimeter Protection and People Counting functions.Powered by deep-learning Artificial Intelligence algorithms, significantly improved accuracy. Meanwhile, the series features starlight and smart IR technology. This series fully protected from dust and water, certified to IP67 standard.

IPC-HFW5541T-AS-PV - DAHUA IPC-HFW5541T-AS-PV 5MP WDR IR Bullet AI Network Camera with People Counting Active Deterrence IR LEDs Length 60 m IPC-HFW5541T-AS-PV without logo Functions

Perimeter Protection

Perimeter Protection functions significantly improved accuracy. Perimeter Protection reduces false alarms and decreases pixel count requirements for object detection. Perimeter Protection features custom tripwires based on object type for automation in limited access areas such as pedestrian or vehicle-only zones. This combination of advanced AI analytics and real-time alerts to a desktop or to a mobile client reduces system requirements and resources resulting in greater surveillance system efficiency.

People Counting

People Counting function uses advanced image processing technology to capture depth information from within images. The camera pairs this information with deep learning algorithms to analyze and detect human bodies and track target objects in real time. The camera provides statistics for separate individuals’ entrance and exit with up to 95% counting accuracy.

Active Deterrence

Active deterrence is to warn off intruders actively with white light and siren even before users are aware of the incidence. Once an intursion is detected, the white light will turn on and the siren will buzzer to alert the intruder. The white light can be set to Normally on or Flash, the content of siren is configurable.

Protection(IP67, wide voltage)

The camera allows for ±30% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 6KV lightning rating provides effective protection for both the camera and its structure against lightning. Subjected and certified to rigorous dust and immersion tests (IP67) , the camera is the choice for installation in even the most unforgiving environments.

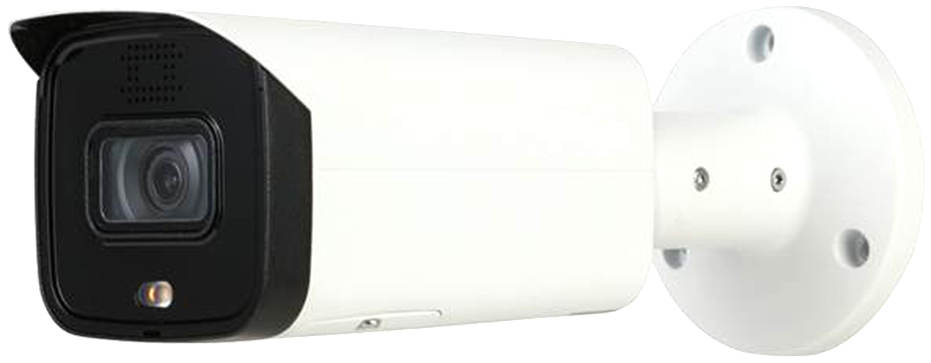

IPC-HFW5541T-AS-PV - DAHUA IPC-HFW5541T-AS-PV 5MP WDR IR Bullet AI Network Camera with People Counting Active Deterrence IR LEDs Length 60 m IPC-HFW5541T-AS-PV without logo IPC-HDBW4431F-AS Picture

IPC-HFW5541T-AS-PV - DAHUA IPC-HFW5541T-AS-PV 5MP WDR IR Bullet AI Network Camera with People Counting Active Deterrence IR LEDs Length 60 m IPC-HFW5541T-AS-PV without logo IPC-HDBW4431F-AS Dimension

IPC-HFW5541T-AS-PV - DAHUA IPC-HFW5541T-AS-PV 5MP WDR IR Bullet AI Network Camera with People Counting Active Deterrence IR LEDs Length 60 m IPC-HFW5541T-AS-PV without logo IPC-HDBW4431F-AS Installation

IPC-HFW5541T-AS-PV - DAHUA IPC-HFW5541T-AS-PV 5MP WDR IR Bullet AI Network Camera with People Counting Active Deterrence IR LEDs Length 60 m IPC-HFW5541T-AS-PV without logo Specification

DH-IPC-HDBW44A1FN-AS 4MP IR Mini Dome Network Camera Specification

Specification

****

***

**

**

**
