IPC-HFW5442E-ZHE – DAHUA DH-IPC-HFW5442E-ZHE 4MP Pro AI IR Vari-focal Bullet Network Camera with H.265 Micro SD memory, IP67, IK10, PoE+, Heater IPC-HFW5442E-ZHE

IPC-HFW5442E-ZHE

4MP Pro AI IR Vari-focal Bullet Network Camera

IPC-HDBW5541R-S – DAHUA DH- IPC-HDBW5541R-S 5MP WDR IR Dome AI Network Camera with deep-learning Artificial Intelligence algorithms IPC-HDBW5541R-S System Overview

Pro AI series contains Face Detection, Perimeter Protection and People Counting functions.Powered by deep-learning Artificial Intelligence algorithms, significantly improved accuracy. Meanwhile, the series features starlight and smart IR technology. This series fully protected from dust and water, certified to IP67 and vandal resistant to IK10 standard.

IPC-HDBW5541R-S – DAHUA DH- IPC-HDBW5541R-S 5MP WDR IR Dome AI Network Camera with deep-learning Artificial Intelligence algorithms IPC-HDBW5541R-S Functions

Face Detection

Face Detection is a software application that automatically captures faces from within a digital image or a video frame from a video source. Dahua cameras use advanced deep learning algorithms and are trained by a large number of face data sources, enabling the camera to locate faces quickly and accurately from the video source and capture facial images.

Face Attributes

Through the use of deep learning algorithms to analyze facial images, Dahua cameras can extract six facial attributes from each frame, including Age, Gender,Expression(Jolly/Surprise/Normal/Rage/Sad/Disgusted/ Confused/Frightened), Glasses,Mouth Mask, Moustache & Beard. Customers can acquire data of interest via face attributes statistics.

Perimeter Protection

Perimeter Protection functions significantly improved accuracy. Perimeter Protection reduces false alarms and decreases pixel count requirements for object detection. Perimeter Protection features custom tripwires based on object type for automation in limited access areas such as pedestrian or vehicle-only zones. This combination of advanced AI analytics and real-time alerts to a desktop or to a mobile client reduces system requirements and resources resulting in greater surveillance system efficiency.

People Counting

People Counting function uses advanced image processing technology to capture depth information from within images. The camera pairs this information with deep learning algorithms to analyze and detect human bodies and track target objects in real time. The camera provides statistics for separate individuals’ entrance and exit with up to 95% counting accuracy.

Metadata

Metadata is feature attribute information extracted from a target object which can be used for data retrieval.  face detection camera can extract six facial attributes and output the metadata for analysis.

ePoE technology

The ePoE technology , designed internally, adopts advanced 2D-PAM3 coding modulation from physical layer, and realizes full duplex transmission over 800 meters at the speed of 10Mbps, or 300 meters at the speed of 100Mbps via Cat 5 or coaxial cable media. Besides, it supports PoE and PoC power supply technology which has greatly simplified construction and wiring. Dahua ePoE technology offer a new way to accomplish long distance transmission between IP camera and network switch. It allows more flexible surveillance system design, improves reliability and saves construction and wiring cost.

Protection(IP67, wide voltage)

The camera allows for ±30% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 6KV lightning rating provides effective protection for both the camera and its structure against lightning. Subjected and certified to rigorous dust and immersion tests (IP67) , the camera is the choice for installation in even the most unforgiving environments.

IPC-HFW5442E-ZHE – DAHUA DH-IPC-HFW5442E-ZHE 4MP Pro AI IR Vari-focal Bullet Network Camera with H.265 Micro SD memory, IP67, IK10, PoE+, Heater IPC-HFW5442E-ZHE  Picture

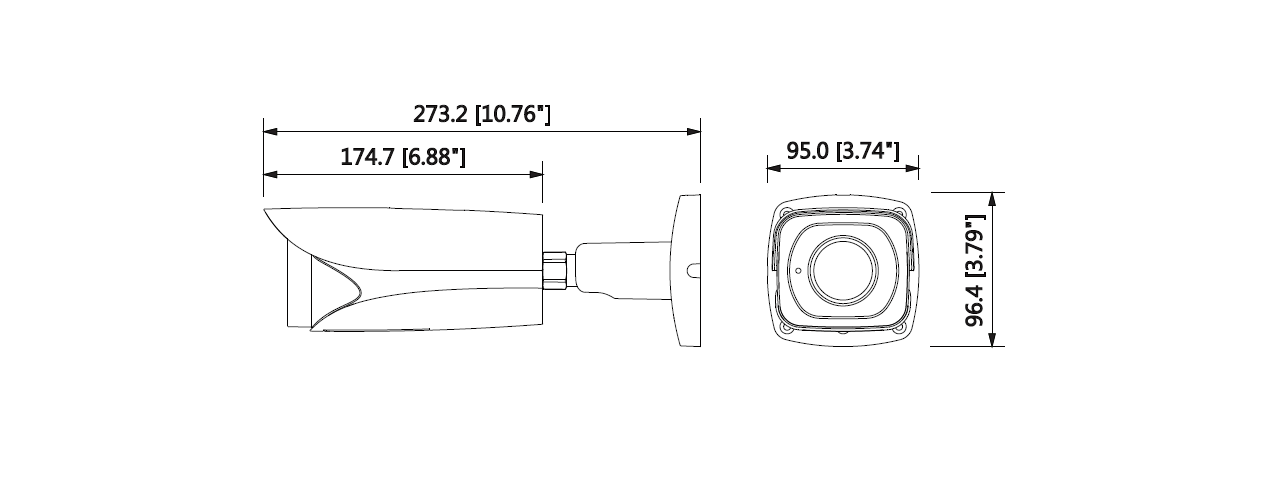

IPC-HFW5442E-ZHE – DAHUA DH-IPC-HFW5442E-ZHE 4MP Pro AI IR Vari-focal Bullet Network Camera with H.265 Micro SD memory, IP67, IK10, PoE+, Heater IPC-HFW5442E-ZHE  Dimension

IPC-HFW5442E-ZHE – DAHUA DH-IPC-HFW5442E-ZHE 4MP Pro AI IR Vari-focal Bullet Network Camera with H.265 Micro SD memory, IP67, IK10, PoE+, Heater IPC-HFW5442E-ZHE  Installation

*******************

*********

**

**

******

***************
