IPC-HFW5242H-Z6E-MF- DAHUA DH-IPC-HFW5242H-Z6E-MF 2MP Vari-focal Bullet WizMind Network Camera With People Counting Face Attributes Face Detection Perimeter Protection IPC-HFW5242H-Z6E-MF

In stock

SKU

IPC-HFW5242H-Z6E-MF

Rating:

100% of 100

1 Review Add Your Review

$337.00

IPC-HFW5242H-Z6E-MF

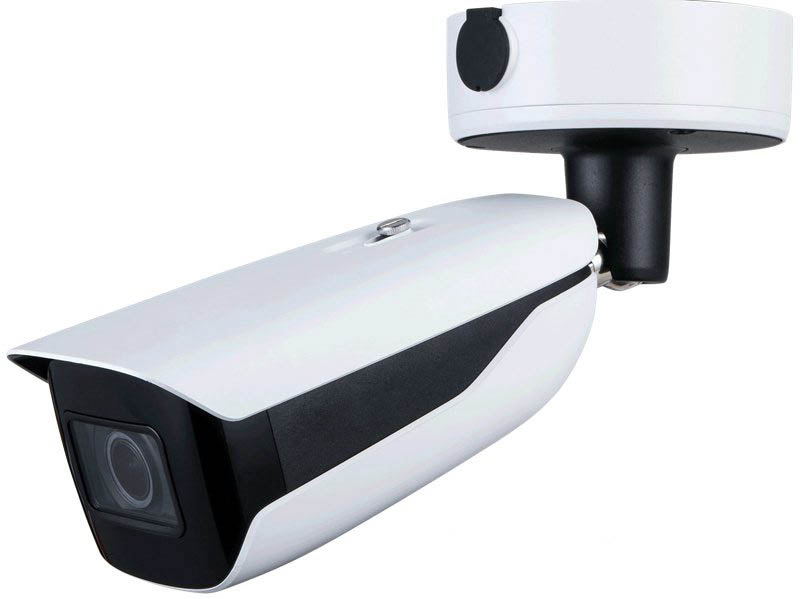

2MP Vari-focal Bullet WizMind Network Camera

> 2MP, 1/1.8” CMOS image sensor, low illuminance, high image definition

> Outputs max. 2MP (1920 × 1080) @60 fps

> Max. IR distance: 140 m

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments

> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes

> Alarm: 3 in, 2 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card

> 12V DC/PoE power supply

> ePoE, IP67, IK10 protection

> Supports junction box mount

>without Logo,English upgradeable origianl firmware,

>100% original products manufactured by DAHUA

The delivery time is 15-25 working days

Special Note:

Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee

Skip to the end of the images gallery

Skip to the beginning of the images gallery

IPC-HFW5242H-Z6E-MF- DAHUA DH-IPC-HFW5242H-Z6E-MF 2MP Vari-focal Bullet WizMind Network Camera With People Counting Face Attributes Face Detection Perimeter Protection IPC-HFW5242H-Z6E-MF

IPC-HFW5242H-Z6E-MF

2MP Vari-focal Bullet WizMind Network Camera

> 2MP, 1/1.8” CMOS image sensor, low illuminance, high image definition

> Outputs max. 2MP (1920 × 1080) @60 fps

> Max. IR distance: 140 m

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments

> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes

> Alarm: 3 in, 2 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card

> 12V DC/PoE power supply

> ePoE, IP67, IK10 protection

> Supports junction box mount

>,English upgradeable origianl firmware,

>100% original products manufactured by DAHUA

WizMind Series

WizMind is a wide range of project-oriented products that adopt industry-leading deep learning algorithms, such as IPC, NVR, PTZ, XVR, thermal camera and software platform. Focusing on customers’ needs, WizMind provides precise and reliable and comprehensive AI products for verticals.
Precise: Powered by AI chip and deep learning algorithms, WizMind delivers accurate detection and recognition of human and vehicle, enabling users to rapidly and precisely act on what really matters. In addition, it provides accurate and effective AI search to locate targets, and various human-based data for business analysis.
Reliable: Strict component selection to ensure the high product reliability. With thorough testing of front-end cameras, back-end device and platform, WizMind injects reliability into all of its solutions.
Comprehensive: Focusing on human and vehicle, WizMind provides various applications solutions such as face recognition, privacy protection, video metadata, stereo analysis, ANPR, illegal parking, etc. Moreover, WizMind combines deep learning algorithm with thermal imaging technology to help users achieve ultra-long distance monitoring in harsh environments, highly accurate non-contact temperature measurement with only ±0.3℃ temperature difference, and early detection of fire. wizmind AI

IPC-HFW5242H-Z6E-MF- DAHUA DH-IPC-HFW5242H-Z6E-MF 2MP Vari-focal Bullet WizMind Network Camera With People Counting Face Attributes Face Detection Perimeter Protection IPC-HFW5242H-Z6E-MF System Overview

WizMind is a full portfolio of solutions composed of project-oriented products including IPC, NVR, PTZ, XVR, Thermal and software platform which adopts industry-leading deep learning algorithms. Focusing on customer’s requirements, WizMind provides precise, reliable and comprehensive AI solutions for verticals.

DAHUA Smart Shop solution

With starlight solution and deep learning algorithm, Dahua WizMind 5 Series network camera has various intelligent functions, including face capture, perimeter protection and people counting, which greatly improve the accuracy of video analysis. The series camera supports dust-proof function, waterproof function and vandal-proof function, complying with the standards of IP67 and IK10 (Supported by some select models).

IPC-HFW5242H-Z6E-MF- DAHUA DH-IPC-HFW5242H-Z6E-MF 2MP Vari-focal Bullet WizMind Network Camera With People Counting Face Attributes Face Detection Perimeter Protection IPC-HFW5242H-Z6E-MF Functions

ePoE

ePoE technology provides a new way to accomplish long distance transmission between IP camera and network switch. It allows more flexible surveillance system design, improves reliability and saves construction and wiring cost.

Face Detection

Face Detection technology can detect the face in the image. With deep learning algorithm, the technology supports detecting, tracking, capturing and selecting the best face image, and then outputs face snapshot.

Face Attributes

With deep learning algorithm, the network camera can recognize face attributes, such as gender, age, expression, glasses, mouth mask, and beard.

People Counting

With deep learning algorithm, Dahua People Counting technology can track and process moving human body targets to realize the accurate statistics of enter No., leave No., and In Area No. Working with management platform, it outputs yearly/monthly/weekly/daily reports to meet your requirements..

Smart H.265+ & Smart H.264+

With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Perimeter Protection

With deep learning algorithm, Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.

Detect tripwire and intrusion violations Processing Flow

Protection (IP67, wide voltage)

IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 cm (Impact energy is 20J). Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

IPC-HFW5242H-Z6E-MF- DAHUA DH-IPC-HFW5242H-Z6E-MF 2MP Vari-focal Bullet WizMind Network Camera With People Counting Face Attributes Face Detection Perimeter Protection IPC-HFW5242H-Z6E-MF Picture

IPC-HFW5242H-Z6E-MF- DAHUA DH-IPC-HFW5242H-Z6E-MF 2MP Vari-focal Bullet WizMind Network Camera With People Counting Face Attributes Face Detection Perimeter Protection IPC-HFW5242H-Z6E-MF Dimensions

IPC-HFW5242H-Z6E-MF- DAHUA DH-IPC-HFW5242H-Z6E-MF 2MP Vari-focal Bullet WizMind Network Camera With People Counting Face Attributes Face Detection Perimeter Protection IPC-HFW5242H-Z6E-MF Installation

IPC-HFW5242H-Z6E-MF- DAHUA DH-IPC-HFW5242H-Z6E-MF 2MP Vari-focal Bullet WizMind Network Camera With People Counting Face Attributes Face Detection Perimeter Protection IPC-HFW5242H-Z6E-MF Technical Specifications

*******

Camera
Image Sensor	1/1.8”2Megapixel progressive CMOS
Max. Resolution	1920 (H) × 1080 (V)
ROM	128 MB
RAM	1 GB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Min. Illumination	0.002 Lux @F1.6
S/N Ratio	>56 dB
Illumination Distance	140 m (459.3 ft) (IR LED)
Illuminator On/Off Control	Auto/Manual
Illuminator Number	4 (IR LED)
Pan/Tilt/Rotation Range	Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°
Lens
Lens Type	Motorized vari-focal
Mount Type	Module
Focal Length	8 mm–48 mm
Max. Aperture	F1.6
Field of View	Horizontal: 42°–10.9° Vertical: 23°–6° Diagonal: 49°–12°
Iris Type	Auto
Close Focus Distance	2.5 m–6 m (8.2 ft–19.7 ft)
DORI Distance	Lens	Detect	Observe	Recognize	Identify
	W	107.0 m (351.0 ft)	40.0 m (131.2 ft)	21.0 m (68.9 ft)	10.0 m (32.8 ft)
	T	400.0 m (1312.3 ft)	160 m (524.9 ft)	80.0 m (262.5 ft)	40.0 m (131.2 ft)
Smart Event
IVS	Abandoned object; missing object
Heat Map	Yes
Professional, intelligent
IVS (Perimeter Protection)	Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection
Face Detection	Face detection; track; optimization; snapshot; report high quality picture; face enhancement; face exposure; face attribute extract, 6 attributes and 8 expressions: Gender, age, glasses, expressions (anger, calm, happiness, sadness, disgust, surprise, confusion and fear), mask, beard; face matting setting: face, single inch photo; three snapshot methods: real-time snapshot, optimization snapshot, quality priority; face angle filter; optimization time setting
People Counting	Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/ monthly/weekly/daily reports Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm
Intelligent Search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec	Smart H.265+/H.264+
Video Frame Rate	Main stream: 1920 × 1080 (1 fps–50/60 fps) Sub stream: D1 (1 fps–50/60 fps) Third stream: 1080p (1 fps–25/30 fps)
Stream Capability	3 streams
Resolution	1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (354 × 288/354 × 240)
Bit Rate Control	CBR/VBR
Video Bit Rate	H.264: 32 kbps–8192 kbps H.265: 19 kbps–8192 kbps
Day/Night	Auto (ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	140 dB
White Balance	Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control	Auto/Manual
Noise Reduction	3D DNR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Electronic Image Stabilization (EIS)	Yes
Smart Illumination	Yes
Defog	Yes
Image Rotation	0°/90°/180°/270°
Mirror	Yes
Privacy Masking	4 areas
Audio
Audio Compression	PCM; G.711a; G.711Mu; G.726; AAC; G.723
Alarm
Alarm Event	No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; defocus detection; scene changing; intrusion; tripwire; abandoned object; missing object; fast moving; parking detection; loitering detection; people gathering; input abnormal detection; intensity change detection; people counting; face detection; voltage detection; people counting in area; stay alarm; people No. exception detection, queue management
Network
Network	RJ-45 (10/100 Base-T)
SDK and API	Yes
Protocol	IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
Interoperability	ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P
User/Host	20 (Total bandwidth: 88 M)
Storage	FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS
Browser	IE: IE8 and later Chrome Firefox Safari: Safari 12 and later
Management Software	Smart PSS; DSS; DMSS
Mobile Phone	IOS; Android
Certification
Certification	CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
Audio Input	1 channel (3.5mm JACK port)
Audio Output	1 channel (3.5mm JACK port)
Alarm Input	3 channels in: 5mA 3V–5V DC
Alarm Output	2 channels out: 300mA 12V DC
Power
Power Supply	12V DC (±30%)/PoE (802.3af)
Power Consumption	<11.6W
Environment
Operating Conditions	–30°C to +60°C (–22°F to +140°F)/Less than 95% RH
Storage Conditions	–40°C to +60°C (–40°F to +140°F)
Protection Grade	IP67; IK10
Structure
Casing	Metal + Plastic
Dimensions	340.1 mm × 108.5 mm × 92.9 mm (13.4" × 4.3" × 3.7") (L × W × H)
Net Weight	1.47 kg (3.2 lb)
Gross Weight	2.34 kg (5.2 lb)

********

Icctvzone-wholesales DAHUA IP Cameras
Icctvzone IP surveillance
Icctvzone-wholesales DAHUA NVR

best price of DAHUA camera

********************DAHUA IPC-HFW5242H-Z6E-MF,DAHUA DH-IPC-HFW5242H-Z6E-MF,IPC-HFW5242H-Z6E-MF,DH-IPC-HFW5242H-Z6E-MF,DH-IPC-HFW5242HP-Z6E-MF,DH-IPC-HFW5242HN-Z6E-MF,intelligent ip camera,sectec ip camera,Security camera aliexpress,ip camera honeywell,Face Detection,Video Metadata,ANPR,People Counting,Queue Management****DAHUA IPC-HFW5242H-Z6E-MF,DAHUA DH-IPC-HFW5242H-Z6E-MF,IPC-HFW5242H-Z6E-MF,DH-IPC-HFW5242H-Z6E-MF,DH-IPC-HFW5242HP-Z6E-MF,DH-IPC-HFW5242HN-Z6E-MF,dahua 2mp kamera,dahua 2mp starlight camera,2mp ip bullet camera price,smart pss ip camera,2mp dahua bullet camera,2mp cameras,2 megapixel bullet camera,2mp bullet ip camera,ip bullet camera 2mp,buy dahua camera,intelligent ip camera,sectec ip camera,Security camera aliexpress,ip camera honeywell,Face Detection,Video Metadata,ANPR,People Counting,Queue Management*********************

More Information
Wired/Wireless	Wired
Outdoor use	Intdoor use, Outdoor use
Focal Type	Motorized Zoom
Day/Night	Low light
Factor	Bullet
Max Resolution	2 MP
