IPC-HFW5241E-S – DAHUA DH-IPC-HFW5241E-S 2MP 2MP Pro AI IR Fixed-focal Bullet Network Camera with H.265 & H.264 triple-stream encoding IPC-HFW5241E-S

In stock

SKU

IPC-HFW5241E-S

Be the first to review this product

$94.96

IPC-HFW5241E-S

2MP Pro AI IR Fixed-focal Bullet Network Camera

> 1/2.8” 2Megapixel progressive scan STARVIS™ CMOS

> H.265 & H.264 triple-stream encoding

> 25/30 fps@1080P (1920 × 1080)

> WDR (120 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC

> Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS

> 2.8 mm fixed lens (3.6 mm, 6.0 mm optional)

> Max. IR LEDs Length 50 m

> Micro SD memory, IP67

> without Logo,English firmware

> 100% original products manufactured by DAHUA

The delivery time is 25 working days if no stock.

Special Note:

Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee

Skip to the end of the images gallery

Skip to the beginning of the images gallery

IPC-HFW5241E-S – DAHUA DH-IPC-HFW5241E-S 2MP 2MP Pro AI IR Fixed-focal Bullet Network Camera with H.265 & H.264 triple-stream encoding IPC-HFW5241E-S

IPC-HFW5241E-S

2MP Pro AI IR Fixed-focal Bullet Network Camera

> 1/2.8” 2Megapixel progressive scan STARVIS™ CMOS

> H.265 & H.264 triple-stream encoding

> 25/30 fps@1080P (1920 × 1080)

> WDR (120 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC

> Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS

> 2.8 mm fixed lens (3.6 mm, 6.0 mm optional)

> Max. IR LEDs Length 50 m

> Micro SD memory, IP67

> ,English firmware

> 100% original products manufactured by DAHUA

IPC-HFW5241E-S – DAHUA DH-IPC-HFW5241E-S 2MP 2MP Pro AI IR Fixed-focal Bullet Network Camera with H.265 & H.264 triple-stream encoding IPC-HFW5241E-S System Overview

Pro AI series contains Face Detection, Perimeter Protection and People Counting functions.Powered by deep-learning Artificial Intelligence algorithms, significantly improved accuracy. Meanwhile, the series features starlight and smart IR technology. This series fully protected from dust and water, certified to IP67 standard.

DAHUA Smart Shop solution

IPC-HFW5241E-S – DAHUA DH-IPC-HFW5241E-S 2MP 2MP Pro AI IR Fixed-focal Bullet Network Camera with H.265 & H.264 triple-stream encoding IPC-HFW5241E-S Functions

Perimeter Protection

Perimeter Protection functions significantly improved accuracy. Perimeter Protection reduces false alarms and decreases pixel count requirements for object detection. Perimeter Protection features custom tripwires based on object type for automation in limited access areas such as pedestrian or vehicle-only zones. This combination of advanced AI analytics and real-time alerts to a desktop or to a mobile client reduces system requirements and resources resulting in greater surveillance system efficiency.

People Counting

People Counting function uses advanced image processing technology to capture depth information from within images. The camera pairs this information with deep learning algorithms to analyze and detect human bodies and track target objects in real time. The camera provides statistics for separate individuals’ entrance and exit with up to 95% counting accuracy.

Face Detection

Face Detection is a software application that automatically captures faces from within a digital image or a video frame from a video source. Dahua cameras use advanced deep learning algorithms and are trained by a large number of face data sources, enabling the camera to locate faces quickly and accurately from the video source and capture facial images.

Protection(IP67, wide voltage)

The camera allows for ±30% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 6KV lightning rating provides effective protection for both the camera and its structure against lightning. Subjected and certified to rigorous dust and immersion tests (IP67) , the camera is the choice for installation in even the most unforgiving environments.

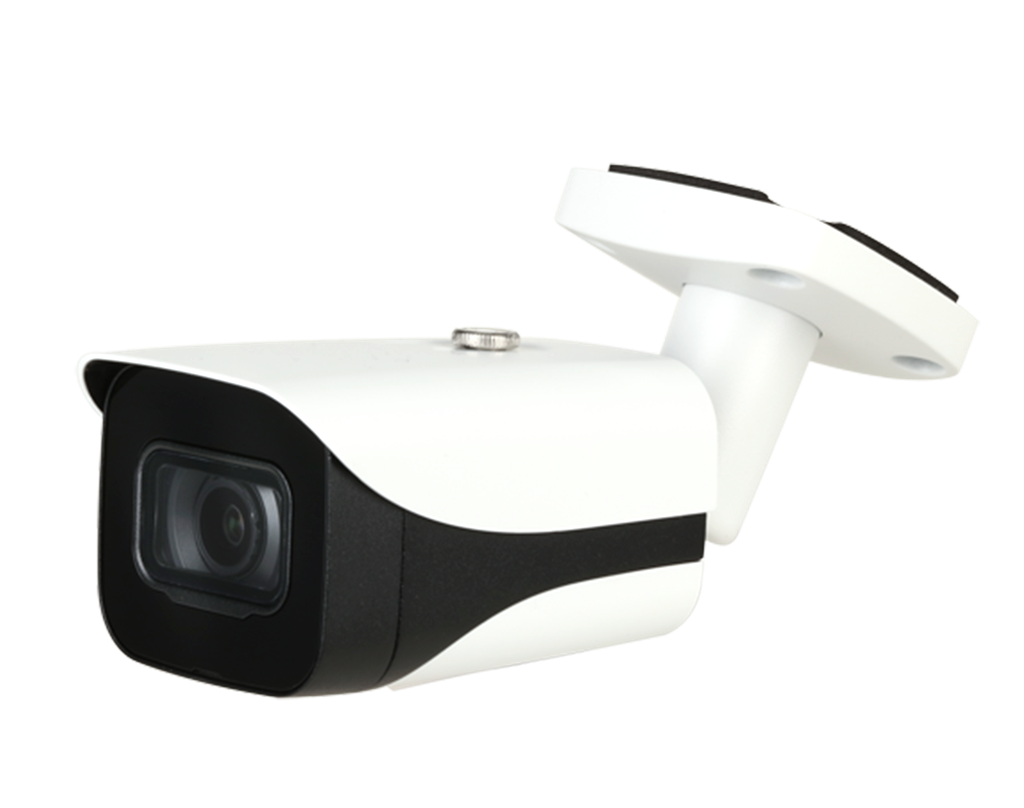

IPC-HFW5241E-S – DAHUA DH-IPC-HFW5241E-S 2MP 2MP Pro AI IR Fixed-focal Bullet Network Camera with H.265 & H.264 triple-stream encoding IPC-HFW5241E-S Picture

IPC-HFW5241E-S – DAHUA DH-IPC-HFW5241E-S 2MP 2MP Pro AI IR Fixed-focal Bullet Network Camera with H.265 & H.264 triple-stream encoding IPC-HFW5241E-S Dimension

IPC-HFW5241E-S – DAHUA DH-IPC-HFW5241E-S 2MP 2MP Pro AI IR Fixed-focal Bullet Network Camera with H.265 & H.264 triple-stream encoding IPC-HFW5241E-S Installation

IPC-HFW5241E-S – DAHUA DH-IPC-HFW5241E-S 2MP 2MP Pro AI IR Fixed-focal Bullet Network Camera with H.265 & H.264 triple-stream encoding IPC-HFW5241E-S Specification

Technical Specifications

***

Camera

Image Sensor

1/2.8” 2Megapixel progressive scan STARVIS™ CMOS

Effective Pixels

1920 (H) × 1080 (V)

RAM/ROM

512 MB/128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3 s–1/100000 s

Minimum Illumination

0.002 Lux@F1.6

IR Distance

Distance up to 50 m (164 ft)

IR On/Off Control

Auto/Manual

IR LEDs

Lens

Lens Type

Fixed-focal

Mount Type

Board-in

Focal Length

2.8 mm, 3.6 mm, 6.0 mm

Max. Aperture

F1.6

Angle of View

H: 106°, V: 57°/H: 87°, V: 46°/H: 53°, V: 30°

Aperture Type

Fixed

Close Focus Distance

0.6 m (1.97 ft)/1.2 m (3.94 ft)/2.5 m (8.20 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8mm

39m(128ft)

15m(49ft)

8m(26ft)

4m(13ft)

3.6mm

55m(180ft)

22m(72ft)

11m(36ft)

6m(20ft)

6.0mm

83m(272ft)

33m(108ft)

17m(56ft)

8m(26ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan: 0˚–360˚; Tilt: 0˚–90˚; Rotation: 0˚–360˚

Artificial Intelligence

Face Detection

Support face image capture

Perimeter Protection

Tripwire, intrusion (Recognition of vehicle and people), fast moving, loitering detection, parking detection and people gathering

People Counting

Support Line crossing/Region/Queueing people counting; Support 4 accesses independent detection, 4 areas independent detection

General Intelligence

Event Trigger

Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access, Storage anomaly

General Intelligence

Object Abandoned/Missing

Heat Map

Yes

Video

Compression

H.265,H.264,H.264B,H.264H,

MJPEG (sub stream)

Smart Codec

Yes

Streaming Capability

3 Streams

Resolution

1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240)

Frame Rate

Main Stream: 1080P (1 fps–25/30 fps)

Sub Stream: D1 (1 fps–25/30 fps)

Third Stream: 1080P (1 fps–6 fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 32 Kbps–8192 Kbps

H.265: 19 Kbps–7424 Kbps

Day/Night

Auto(ICR)/Color/B/W

BLC Mode

BLC/HLC/WDR (120 dB)

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

Off/On (4 Zone, Rectangle)

Region of Interest

Off/On (4 Zone)

Electronic Image Stabilization (EIS)

N/A

Smart IR

Yes

Defog

Yes

Flip

0°/90°/180°/270°

Mirror

Off/On

Privacy Masking

Off/On (4 Area, Rectangle)

Audio

Compression

N/A

Network

Ethernet

RJ-45 (10/100 Base-T)

Protocol

IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP

Interoperability

ONVIF (Profile S/Profile G/Profile T), CGI, Milstone, Genetec, P2P

Streaming Method

Unicast/Multicast

Max. User Access

20 Users

Edge Storage

NAS;FTP;SFTP

Micro SD card 256 GB

Web Viewer

IE (versions newer than IE8), Chrome,

Firefox, Safari (versions newer than Safari 12)

Management Software

Smart PSS, DSS, DMSS

Smart Phone

iOS, Android

Certifications

CE-LVD: EN60950-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B

UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Interface

Audio Interface

N/A

RS485

N/A

Alarm

N/A

Electrical

Power Supply

DC 12V (±30%), PoE (802.3af) (Class 0)

Power Consumption

<6.8W

Environmental

Operating Conditions

-30° C to +60° C (-22° F to +140° F)/Less than 95% RH

Storage Conditions

-30° C to +60° C (-22° F to +140° F)

Ingress Protection

IP67

Vandal Resistance

N/A

Construction

Casing

Metal, plastic

Dimensions

182.3 mm × 70.0 mm × 70.0 mm (7.18” × 2.76” × 2.76”)

Net Weight

0.47 kg (1.04 lb)

Gross Weight

0.59 kg (1.30 lb)

*************

********

****

*********

Icctvzone-wholesales DAHUA IP Cameras Icctvzone IP surveillance Icctvzone-wholesales DAHUA NVR Worldwide shipping DAHUA camera best price of DAHUA camera

***********

More Information
Wired/Wireless	Wired
Outdoor use	Outdoor use
Focal Type	Fixed
Day/Night	Low light
Factor	Bullet
Max Resolution	2 MP
