IPC-HFW4239T-ASE - DAHUA DH-IPC-HFW4239T-ASE 2MP WDR Full-color Starlight Mini Bullet Network Camera Smart Detection supported Intelligent Video System ePoE technology IPC-HFW4239T-ASE

IPC-HFW4239T-ASE

2MP WDR Full-color Starlight Mini Bullet Network Camera

> 1/2.8” 2Megapixel progressive scan STARVISTM CMOS
> H. 265&H.264 triple-stream encoding
> 25/30fps@1080P(1920×1080)
> Smart Detection supported
> WDR(120dB), Day/Night(Electronic), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 3.6mm fixed lens (6mm optional)
> 1/1 Alarm in/out, 1/1 audio in/out
> Micro SD Memory,IP67,IK10, PoE
> ,English firmware
> 100% original products manufactured by DAHUA

IPC-HFW4239T-ASE - DAHUA DH-IPC-HFW4239T-ASE 2MP WDR Full-color Starlight Mini Bullet Network Camera Smart Detection supported Intelligent Video System ePoE technology IPC-HFW4239T-ASE OVERVIEW

With upgraded H.265 encoding technology, Eco-savvy series brings high efficient video compression capability. It can save bandwidth and storage. Meanwhile, the series features starlight, full-color starlight, smart IR technology and intelligent image analysis techniques. This series supports reminder function, meanwhile fully protected from dust and water, certified to IP67 and vandal resistant to IK10 standard

IPC-HDW4231EM-ASE - DAHUA DH-IPC-HDW4231EM-ASE 2MP IR EYEBALL NETWORK CAMERA WITH SMART DETECTION SUPPORTED BUILT-IN MIC STARLIGHT TECHNOLOGY INTELLIGENT VIDEO SYSTEM (IVS) IPC-HDW4231EM-ASE FUNCTIONS

Full-color Starlight

With the adoption of high performance sensor and large-sized aperture lens, the camera is able to provide a more colorful image even under lowlight environment. Full-color starlight cameras are prefect for applications of low-light conditions which is over 1 lux, such as parking lots, urban streets, schools, museums, etc. *Full-color starlight cameras can not work in total darkness environment.

ePoE technology

The ePoE technology of Dahua, designed internally, adopts advanced 2D-PAM3 coding modulation from physical layer, and realizes full duplex transmission over 800 meters at the speed of 10Mbps, or 300 meters at the speed of 100Mbps via Cat 5 or coaxial cable media. Besides, it supports PoE and PoC power supply technology which has greatly simplified construction and wiring. Dahua ePoE technology offer a new way to accomplish long distance transmission between IP camera and network switch. It allows more flexible surveillance system design, improves reliability and saves construction and wiring cost.

Wide Dynamic Range (WDR)

The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, true WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

Intelligent Video analysis (IVS)

IVS is a built-in video analytic algorithm that delivers intelligent functions to monitor a scene for Tripwire violations, intrusion detection, and abandoned or missing objects. A camera with IVS quickly and accurately responds to monitoring events in a specific area. In addition to scene analytics, the camera supports face detection to quickly capture a face and upload the image to a server. The camera also offers tamper detection by recognizing a dramatic scene change and generating a warning message to inspect the camera.

Environmental

cameras operate in extreme temperature environments, rated for use in temperatures from -30° C to +60° C (-22° F to +140° F) with 95% humidity, allowing the camera to operate in the harshest environments.

Protection(IP67, IK10, wide voltage)

The camera allows for ±30% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 4KV lightning rating provides effective protection for both the camera and its structure against lightning. Subjected and certified to rigorous dust and immersion tests (IP67) and impact tests(IK10), the camera is the choice for installation in even the most unforgiving environments.

Smart H.265+

Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.

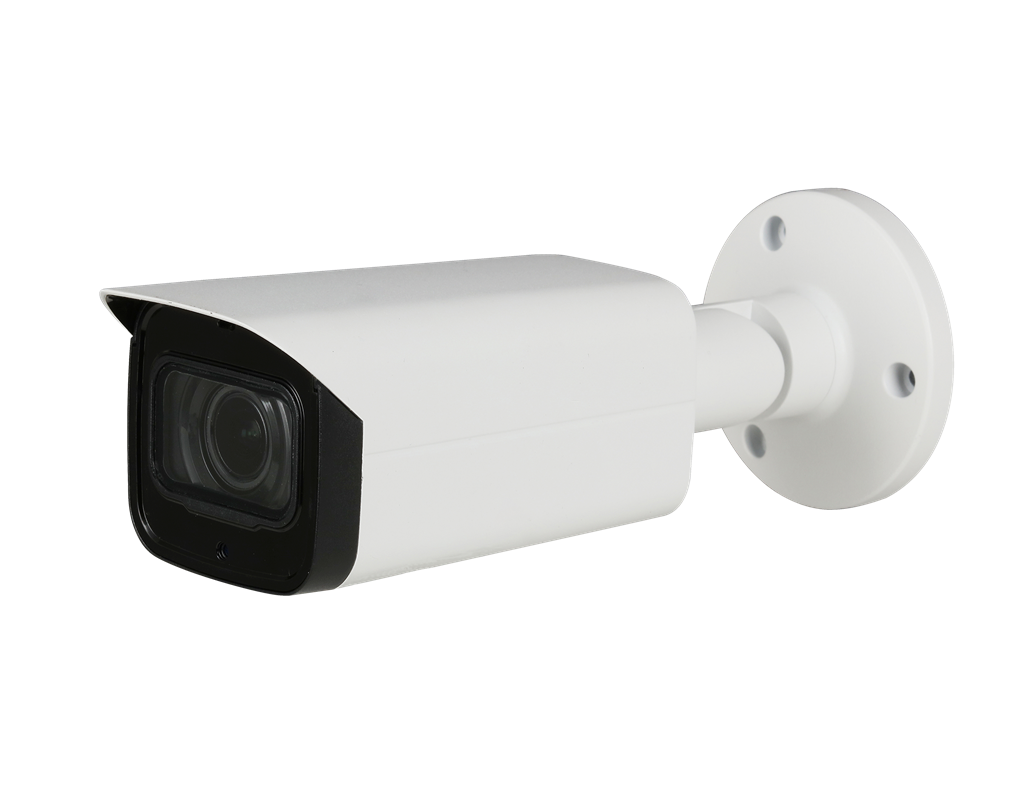

IPC-HFW4239T-ASE - DAHUA DH-IPC-HFW4239T-ASE 2MP WDR Full-color Starlight Mini Bullet Network Camera Smart Detection supported Intelligent Video System ePoE technology IPC-HFW4239T-ASE  Picture

IPC-HFW4239T-ASE - DAHUA DH-IPC-HFW4239T-ASE 2MP WDR Full-color Starlight Mini Bullet Network Camera Smart Detection supported Intelligent Video System ePoE technology IPC-HFW4239T-ASE  Dimension

IPC-HFW4239T-ASE - DAHUA DH-IPC-HFW4239T-ASE 2MP WDR Full-color Starlight Mini Bullet Network Camera Smart Detection supported Intelligent Video System ePoE technology IPC-HFW4239T-ASE  Installation
