IPC-HFW3549E-AS-LED- DAHUA DH-IPC-HFW3549E-AS-LED 5MP Full-color Fixed-focal Warm LED Bullet WizSense Network Camera with SMD Plus IPC-HFW3549E-AS-LED

IPC-HFW3549E-AS-LED

5MP Full-color Fixed-focal Warm LED Bullet WizSense Network Camera

> 5MP, 1/2.7" CMOS image sensor, low illuminance, high image definition

> Outputs max. 5MP (2592 × 1944) @20 fps, and supports 4MP (2688 × 1520) @25/30 fps

> H.265 codec, high compression rate, low bit rate

> Built-in warm light, max. illumination distance: 30 m

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments

> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes

> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)

> Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection

> Alarm: 1 in, 1 out; Audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic

> 12V DC/PoE power supply, easy for installation

> IP67 protection

> SMD Plus

IPC-HFW3549E-AS-LED- DAHUA DH-IPC-HFW3549E-AS-LED 5MP Full-color Fixed-focal Warm LED Bullet WizSense Network Camera with SMD Plus IPC-HFW3549E-AS-LED System Overview

With advanced deep learning algorithm, Dahua Lite AI series network camera supports some intelligent functions, such as perimeter protection and smart motion detection. It adopts starlight solution, which makes a better image effect in low illuminance

IPC-HFW3549E-AS-LED- DAHUA DH-IPC-HFW3549E-AS-LED 5MP Full-color Fixed-focal Warm LED Bullet WizSense Network Camera with SMD Plus IPC-HFW3549E-AS-LED Functions

Smart (H.265+ & H.264+)

Adopting advanced algorithm of auto stream control according to the environment, Dahua smart encoding technology realizes the higher efficiency than (H.265 & H.264 ), providing high-quality video, and reducing the cost of storage and transmission.

Wide dynamic range (WDR)

adopts advanced Wide Dynamic Range (WDR) technology. You can get clear details in the environment of strong brightness contrast. In high brightness and back-light environment, bright region and dark region with strong light source, you can also get clear images.

Starlight

Starlight technology mainly applies to the environment of low illumination, and it can provide clear colorful video. Even in the environment of min. illumination, the technology can guarantee the good image effect

Intelligent Video Analysis (IVS)

With advanced video algorithm, Dahua camera supports intelligent detection, such as tripwire and intrusion and so on.

Smart Motion Detection (SMD)

With intelligent algorithm, Dahua Smart Motion Detection technology can effectively recognize the target types, flitting the motion detection alarm triggered by non-concerned target types. It can realize effective and accurate alarm.

Protection (IP67, IK10, wide voltage)

IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 m (Impact energy is 20J). Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

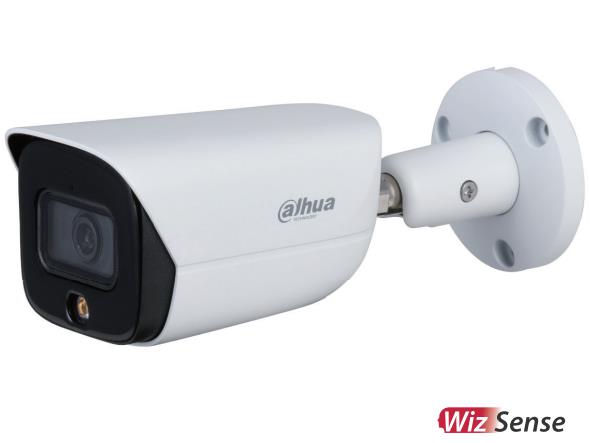

IPC-HFW3549E-AS-LED- DAHUA DH-IPC-HFW3549E-AS-LED 5MP Full-color Fixed-focal Warm LED Bullet WizSense Network Camera with SMD Plus IPC-HFW3549E-AS-LED Picture

IPC-HFW3549E-AS-LED- DAHUA DH-IPC-HFW3549E-AS-LED 5MP Full-color Fixed-focal Warm LED Bullet WizSense Network Camera with SMD Plus IPC-HFW3549E-AS-LED  Dimensions

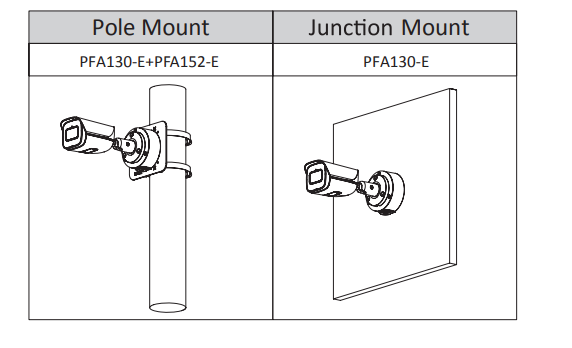

IPC-HFW3549E-AS-LED- DAHUA DH-IPC-HFW3549E-AS-LED 5MP Full-color Fixed-focal Warm LED Bullet WizSense Network Camera with SMD Plus IPC-HFW3549E-AS-LED  Installation
