IPC-HFW3241M-AS-I2 - DAHUA DH-IPC-HFW3241M-AS-I2 2MP Lite AI IR Fixed focal Bullet Network Camera WITH Alarm: 2 in, 2 out; Audio: In, out; Built-in IR LED, max. IR distance: 80 m Starlight technology IPC-HFW3241M-AS-I2

In stock

SKU

IPC-HFW3241M-AS-I2

Rating:

80% of 100

1 Review Add Your Review

$109.95

IPC-HFW3241M-AS-I2

2MP Lite AI IR Fixed focal Bullet Network Camera

> 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
> Outputs max. 2MP (1920 × 1080)@30 fps
> H.265 codec, high compression rate, low bit rate
> Built-in IR LED, max. IR distance: 80 m
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
> Intelligent detection: Intrusion, tripwire
> Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
> Alarm: 2 in, 2 out; Audio: In, out; supports max. 256 G Micro SD card
> 12V DC/PoE power support, 12V power output, max. current 165mA
> IP67 protection
> SMD

>without Logo,English firmware

>100% original products manufactured by DAHUA

The delivery time is 15-25 working days

Special Note:

Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee

Skip to the end of the images gallery

Skip to the beginning of the images gallery

IPC-HFW3241M-AS-I2 - DAHUA DH-IPC-HFW3241M-AS-I2 2MP Lite AI IR Fixed focal Bullet Network Camera WITH Alarm: 2 in, 2 out; Audio: In, out; Built-in IR LED, max. IR distance: 80 m Starlight technology IPC-HFW3241M-AS-I2

IPC-HFW3241M-AS-I2

2MP Lite AI IR Fixed focal Bullet Network Camera

>,English firmware

>100% original products manufactured by DAHUA

IPC-HFW3241M-AS-I2 - DAHUA DH-IPC-HFW3241M-AS-I2 2MP Lite AI IR Fixed focal Bullet Network Camera WITH Alarm: 2 in, 2 out; Audio: In, out; Built-in IR LED, max. IR distance: 80 m Starlight technology IPC-HFW3241M-AS-I2 System Overview

With advanced deep learning algorithm, Dahua Lite AI series network camera supports some intelligent functions, such as perimeter protection and smart motion detection. It adopts starlight solution, which makes a better image effect in low illuminance

DAHUA Smart Shop solution

IPC-HFW3241M-AS-I2 - DAHUA DH-IPC-HFW3241M-AS-I2 2MP Lite AI IR Fixed focal Bullet Network Camera WITH Alarm: 2 in, 2 out; Audio: In, out; Built-in IR LED, max. IR distance: 80 m Starlight technology IPC-HFW3241M-AS-I2 Functions

Smart (H.265+ & H.264+)

Adopting advanced algorithm of auto stream control according to the environment, Dahua smart encoding technology realizes the higher efficiency than (H.265 & H.264 ), providing high-quality video, and reducing the cost of storage and transmission.

Wide dynamic range (WDR)

adopts advanced Wide Dynamic Range (WDR) technology. You can get clear details in the environment of strong brightness contrast. In high brightness and back-light environment, bright region and dark region with strong light source, you can also get clear images.

Starlight

Starlight technology mainly applies to the environment of low illumination, and it can provide clear colorful video. Even in the environment of min. illumination, the technology can guarantee the good image effect

starlight Intelligent Video Analysis (IVS)

With advanced video algorithm, Dahua camera supports intelligent detection, such as tripwire and intrusion and so on.

Smart Motion Detection (SMD)

With intelligent algorithm, Dahua Smart Motion Detection technology can effectively recognize the target types, flitting the motion detection alarm triggered by non-concerned target types. It can realize effective and accurate alarm.

Protection (IP67, IK10, wide voltage)

IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 m (Impact energy is 20J). Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

IPC-HFW3241M-AS-I2 - DAHUA DH-IPC-HFW3241M-AS-I2 2MP Lite AI IR Fixed focal Bullet Network Camera WITH Alarm: 2 in, 2 out; Audio: In, out; Built-in IR LED, max. IR distance: 80 m Starlight technology IPC-HFW3241M-AS-I2 Picture

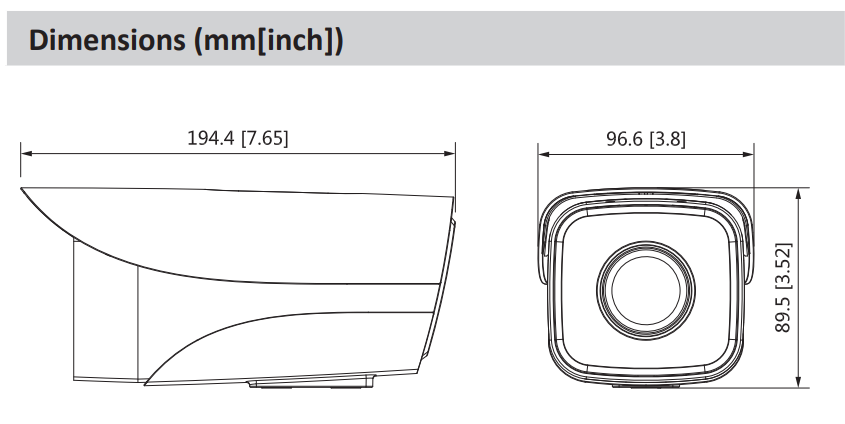

IPC-HFW3241M-AS-I2 - DAHUA DH-IPC-HFW3241M-AS-I2 2MP Lite AI IR Fixed focal Bullet Network Camera WITH Alarm: 2 in, 2 out; Audio: In, out; Built-in IR LED, max. IR distance: 80 m Starlight technology IPC-HFW3241M-AS-I2 Dimensions

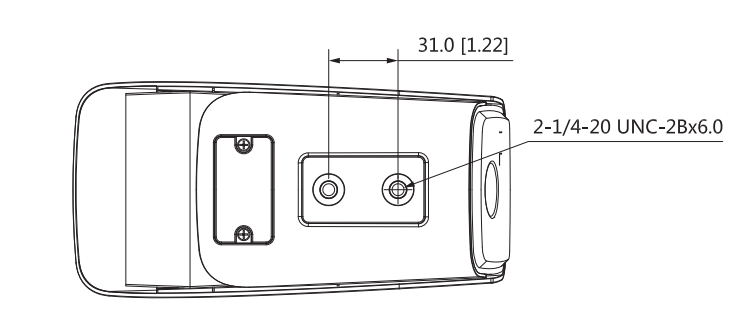

IPC-HFW3241M-AS-I2 - DAHUA DH-IPC-HFW3241M-AS-I2 2MP Lite AI IR Fixed focal Bullet Network Camera WITH Alarm: 2 in, 2 out; Audio: In, out; Built-in IR LED, max. IR distance: 80 m Starlight technology IPC-HFW3241M-AS-I2 Installation

IPC-HFW3241M-AS-I2 - DAHUA DH-IPC-HFW3241M-AS-I2 2MP Lite AI IR Fixed focal Bullet Network Camera WITH Alarm: 2 in, 2 out; Audio: In, out; Built-in IR LED, max. IR distance: 80 m Starlight technology IPC-HFW3241M-AS-I2 Technical Specifications

**

Camera

Image Sensor

1/2.8” 2Megapixel progressive CMOS

Effective Pixels

1920 (H) ×1080 (V)

ROM

128 MB

RAM

256 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100000 s

Min. Illumination

0.002 Lux@F1.6

IR Distance

80 m (262.5 ft)

IR On/Off Control

Auto/Manual

IR LEDs Number

2 (IR LEDs)

Lens

Lens Type

Fixed focal

Mount Type

M12

Focal Length

3.6 mm; 6 mm; 8 mm; 12 mm

Max. Aperture

3.6 mm, 6 mm, 8 mm: F1.6
12 mm: F2.0

Field of View

3.6 mm: Horizontal: 87°; vertical: 46°; diagonal: 104°
6 mm: Horizontal: 54°; vertical: 29°; diagonal: 63°
8 mm: Horizontal: 41°; vertical: 22°; diagonal: 47°
12 mm: Horizontal: 26°; vertical: 14°; diagonal: 30°

Iris Type

Fixed aperture

Close Focus Distance

3.6 mm: 1.2 m (3.9 ft)
6 mm: 2.5 m (8.2 ft)
8 mm: 4 m (13.1 ft)
12 mm: 8.6 m (28.2 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

3.6mm

55.2 m

(181.1 ft)

22.1 m

(72.5 ft)

11.0 m

(36.1 ft)

5.5 m

(18.0 ft)

6mm

82.8 m

(271.7 ft)

33.1 m

(108.6 ft)

16.6 m

(54.5 ft)

8.3 m

(27.2 ft)

8 mm

110.3 m (361.9 ft)

44.1 m

(144.7 ft)

22.1 m

(72.5 ft)

11.0 m

(36.1 ft)

12 mm

172.4 m (565.6 ft)

69.0 m

(226.4 ft)

34.5 m

(116.1 ft)

17.3 m

(56.8 ft)

Professional, Intelligent

Perimeter Protection

Tripwire; intrusion (Recognition of human and vehicle)

Intelligent Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG

Smart Codec

Yes

Video Frame Rate

Main stream (1920 × 1080@1–25/30 fps)
sub stream(704 × 576@1–25 fps/704 × 480@1–30 fps)
third stream(1280 × 720@1–25/30 fps)

Stream Capability

3 streams

Resolution

1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 3 Kbps–8192 Kbps
H.265: 3 Kbps–8192 Kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest(RoI)

Yes (4 areas)

Smart IR

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution.)

Mirror

Yes

Privacy Masking

4 areas

Audio

Audio Compression

G.711a; G.711Mu; G726; AAC

Network

RJ-45 (10/100 Base-T)

Protocol

HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP; QoS; UPnP; NTP

Interoperability

ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec

Scene Self-adaptation

Yes

User/Host

20 (Total bandwidth: 64 M)

Edge Storage

FTP; Micro SD Card (support max. 256 G); Cloud; NAS

Browser

IE: IE8, IE9, IE11

Chrome

Firefox

Management Software

Smart PSS, DSS, DMSS

Mobile Phone

IOS; Android

Certification

Certifications

CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

2 channels in: 5mA 3V–5V DC

Alarm Output

2 channels out: 300mA 12V DC

Power

Power Supply

12V DC/PoE (802.3af)

Power Consumption

<11W

Environment

Operating Conditions

-40°C to +60°C (-40°F to +140°F)/less than≤95%

Strorage Conditions

-40°C to +60°C (-40°F to +140°F)

Ingress Protection

IP67

Structure

Casing

Metal + Plastic

Dimensions

194.4 mm × 96.6 mm × 89.5 mm

(7.7" × 3.8" × 3.5") (L × W × H)

Net Weight

755g (1.7 lb)

Gross Weight

875g (1.9 lb)

*

Icctvzone-wholesales DAHUA IP Cameras
Icctvzone IP surveillance
Icctvzone-wholesales DAHUA NVR

best price of DAHUA camera

More Information
Wired/Wireless	Wired
Outdoor use	Intdoor use, Outdoor use
Focal Type	Fixed
Day/Night	Low light
Factor	Cube
Max Resolution	2 MP
