IPC-HFW1831E - DAHUA DH-IPC-HFW1831E 8MP WDR IR Mini Bullet Network Camera With 4K Technology Intelligent Video Analysis (IVS) Smart Codec (H.265+ & H.264+) DH-IPC-HFW1831E

In stock

SKU

DH-IPC-HFW1831E

Rating:

100% of 100

1 Review Add Your Review

$108.96

PAL/NTSC

Brand

Qty

IPC-HFW1831E

8MP WDR IR Mini Bullet Network Camera

> 1/1.8” 8Megapixel progressive scan CMOS
> H. 265&H.264 dual-stream encoding
> 25/30fps@8MP(3840×2160)
> WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.8mm fixed lens (4mm, 6mm optional)
> Max. IR LEDs Length 50m
>IP67, PoE

> without Logo,English firmware
> 100% original products manufactured by DAHUA

The delivery time is 15-25 working days

Special Note:

Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee

Skip to the end of the images gallery

Skip to the beginning of the images gallery

IPC-HFW1831E - DAHUA DH-IPC-HFW1831E 8MP WDR IR Mini Bullet Network Camera With 4K Technology Intelligent Video Analysis (IVS) Smart Codec (H.265+ & H.264+) DH-IPC-HFW1831E

IPC-HFW1831E

8MP WDR IR Mini Bullet Network Camera

> without Logo,English firmware
> 100% original products manufactured by DAHUA

IPC-HFW1831E - DAHUA DH-IPC-HFW1831E 8MP WDR IR Mini Bullet Network Camera With 4K Technology Intelligent Video Analysis (IVS) Smart Codec (H.265+ & H.264+) DH-IPC-HFW1831E System Overview

The IR Megapixel Fixed camera delivers 8MP resolution with a 2.8/4.0/6.0mm fixed lens.The camera's elegant blend of aesthetics combined with a range of easy mounting solutions provides an excellent choice for a variety of small to mid-size applications at an affordable price.

DAHUA Smart Shop solution

IPC-HFW1831E - DAHUA DH-IPC-HFW1831E 8MP WDR IR Mini Bullet Network Camera With 4K Technology Intelligent Video Analysis (IVS) Smart Codec (H.265+ & H.264+) DH-IPC-HFW1831E Functions

Smart Codec (H.265+ & H.264+)

Smart Codec is the optimized implementation of standard video compression (H.265 & H.264) that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart Codec technology reduces bit rate and storage requirements by up to 70% when compared to the standard video compression.

4K Technology

4K technology as a revolutionary breakthrough in image, which enhance the expressive image of essence, allowing users to experience the best picture quality brought about by the visual feast . For the purposes of 4K surveillance with four times the 1080P resolution, presented to the user with more details . Under the same scenario by raising the pixels , reduce the camera cost.

Intelligent Video Analysis (IVS)

camera is equipped with a built-in intelligent analytic algorithm based on video, which can realize intelligent functions like Tripwire and Intrusion, to quickly and accurately respond to monitoring events in specific area, It can enhance monitoring efficiency. In addition, the camera supports intelligent tamper detection, which is to generate warning message via detecting dramatic scene change and to guarantee effective video surveillance.

Wide Dynamic Range (WDR)

Embeded with industry leading wide dynamic range (WDR) technology, vivid picutures are achieved even in the most intense contrast lighting conditions. For applications with both bright and low lighting conditions that change quickly, True WDR (120dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

Smart IR Technology

With IR illumination, detailed images can be captured in low light or total darkness. The camera's Smart IR technology adjusts the intensity of camera's infrared LEDs to compensate the distance of an object.Smart IR technology prevents IR LEDs from whitening out images as they come closer to the camera. The camera's integrated infrared illumination provides high performance in extreme low-light environments up to 50m (164ft).

Protection (IP67, wide voltage)

The camera allows for ±25% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 2KV lightning rating provides effective protection for both the camera and its structure against lightning. Subjected and certified to rigorous dust and immersion tests (IP67), the camera is the choice for installation in even the most unforgiving environments.

Environmental

cameras operate in extreme temperature environments, rated for use in temperatures from -30° C to +60° C (-22° F to +140° F) with 95% humidity. Interoperability The camera conforms to the ONVIF (Open Network Video Interface Forum) specifications, ensuring interoperability between network video products regardless of manufacturer

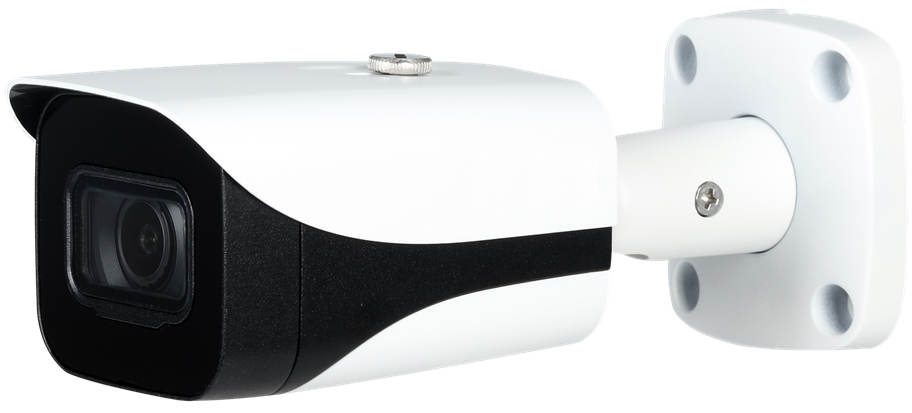

IPC-HFW1831E - DAHUA DH-IPC-HFW1831E 8MP WDR IR Mini Bullet Network Camera With 4K Technology Intelligent Video Analysis (IVS) Smart Codec (H.265+ & H.264+) DH-IPC-HFW1831E Picture

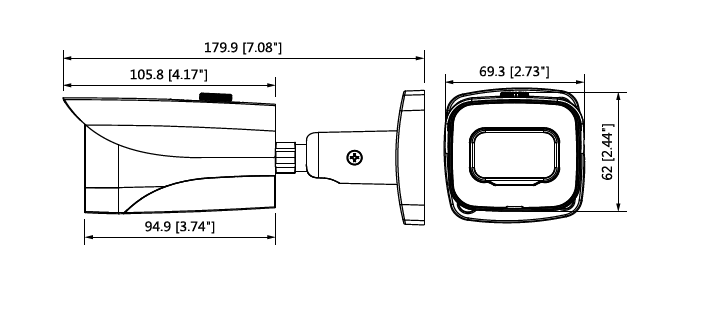

IPC-HFW1831E - DAHUA DH-IPC-HFW1831E 8MP WDR IR Mini Bullet Network Camera With 4K Technology Intelligent Video Analysis (IVS) Smart Codec (H.265+ & H.264+) DH-IPC-HFW1831E Dimension

IPC-HFW1831E - DAHUA DH-IPC-HFW1831E 8MP WDR IR Mini Bullet Network Camera With 4K Technology Intelligent Video Analysis (IVS) Smart Codec (H.265+ & H.264+) DH-IPC-HFW1831E Installation

IPC-HFW1831E - DAHUA DH-IPC-HFW1831E 8MP WDR IR Mini Bullet Network Camera With 4K Technology Intelligent Video Analysis (IVS) Smart Codec (H.265+ & H.264+) DH-IPC-HFW1831E Specification

Technical Specifications

******

Camera

Image Sensor

1/1.8” 8Megapixel progressive scan CMOS

Effective Pixels

3840(H) x 2160(V)

RAM/ROM

512MB/128MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3(4)~1/100000s

Minimum Illumination

0.003Lux/F1.6( Color,1/3s,30IRE)

0.08Lux/F1.6( Color,1/30s,30IRE)

0Lux/F1.6(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 50m (164ft)

IR On/Off Control

Auto/ Manual

IR LEDs

Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

2.8mm (4mm, 6mm optional)

Max. Aperture

F1.6

Angle of View

H:111°/87°/55°, V:59°/47°/30°

Optical Zoom

N/A

Focus Control

Fixed

Close Focus Distance

1.5m (16.4ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8mm

84m(276ft)

34m(112ft)

17m(56ft)

8m(26ft)

4.0 mm

104m(341ft)

42m(138ft)

21m(69ft)

10m(33ft)

6.0 mm

164m(538ft)

66m(217ft)

33m(108ft)

16m(53ft)

PTZ

Pan/Tilt/Rotation Range

Pan:0˚~355˚; Tilt:0˚~90˚; Rotation:0˚~355˚

Intelligence

Event Trigger

Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal access, Storage anomaly

IVS

Tripwire, Intrusion

Video

Compression

H.265/H.264H/MJPEG(Sub Stream)

Smart Codec

Support H.265+/H.264+

Streaming Capability

2 Streams

Resolution

4K(3840×2160)/6M(3072×2048)/5M(2560×1920)/

3M(2048x1536)/3M(2304×1296)/

1080P(1920×1080)/1.3M(1280x960)/

720P(1280×720)/D1(704×576/704×480) /VGA(640×480)/CIF(352×288/352×240)

Frame Rate

Main Stream: 4K (1~25/30fps)

Sub Stream: D1(1~25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264:24K ~ 8192Kbps

H.265:32K~ 8192Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / WDR(120dB)

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization (EIS)

N/A

Smart IR

Support

Defog

N/A

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

N/A

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

HTTP;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;SNMP;QoS;UPnP;NTP

Interoperability

ONVIF Profile S&G, CGI

Streaming Method

Unicast / Multicast

Max. User Access

10 Users /20 Users

Edge Storage

NAS

Local PC for instant recording

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

N/A

Audio Interface

N/A

RS485

N/A

Alarm

N/A

Electrical

Power Supply

DC12V, PoE (IEEE802.3af)(Class 0)

Power Consumption

<7.8W

Environmental

Operating Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Storage Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

N/A

Construction

Casing

Metal

Dimensions

179.9mm×69.3mm×62mm (7.08”×2.73”×2.44”)

Net Weight

0.48kg (1.06lb)

Gross Weight

0.51 kg (1.12lb)

***********

****

Icctvzone-wholesales DAHUA IP Cameras
Icctvzone IP surveillance
Icctvzone-wholesales DAHUA NVR

best price of DAHUA camera

***********

*******************

More Information
Wired/Wireless	Wired
Outdoor use	Intdoor use
Focal Type	Fixed
Day/Night	Low light
Factor	Bullet
Max Resolution	8 MP
