IPC-HFW1120S-W – DAHUA DH-IPC-HFW1120S-W 1.3MP IR Mini-Bullet Wi-Fi Network Camera with H.264 & MJPEG dual-stream encoding IPC-HFW1120S-W

IPC-HFW1120S-W

1.3MP IR Mini-Bullet Wi-Fi Network Camera

> 1/3” 1.3Megapixel progressive CMOS
> H.264 & MJPEG dual-stream encoding
> 25/30fps@1.3M(1280×960)
> DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> Wi-Fi support
> 2.8 mm fixed lens (3.6mm optional)
> Max IR LEDs Length 30m
> IP67

> ,English firmware
> 100% original products manufactured by DAHUA

IPC-HFW1120S-W – DAHUA DH-IPC-HFW1120S-W 1.3MP IR Mini-Bullet Wi-Fi Network Camera with H.264 & MJPEG dual-stream encoding IPC-HFW1120S-W System Overview

The IR Megapixel Fixed MiniDome camera delivers 1.3MP resolution with a choice of 2.8mm or 3.6mm wide angle lens options. The camera's elegant blend of aesthetics combined with a range of easy mounting solutions provides an excellent choice for a variety of small to mid-size applications at an affordable price.

IPC-HFW1120S-W – DAHUA DH-IPC-HFW1120S-W 1.3MP IR Mini-Bullet Wi-Fi Network Camera with H.264 & MJPEG dual-stream encoding IPC-HFW1120S-W Functions

True Day/Night

A day/night mechanical IR cut filter makes this camera ideal for applications with fluctuating lighting conditions, delivering color images during the day and automatically switching to monochrome as the scene darkens

Smart IR

With IR illumination, detailed images can be captured in low light or total darkness. The camera's Smart IR technology adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object. Smart IR technology prevents IR LEDS from whiting out images as they come closer to the camera. The camera's integrated infrared illumination provides high performance in extreme low-light environments up to 30m (98ft).

Image flip

Capturing unnecessary data such as surrounding hallway walls can increase storage requirements without any added value. The image flip feature allows the camera's image to be rotated in 90° increments for better video optimization.

Protection

Supporting ±10% input voltage tolerance, this camera suits even the most unstable conditions for outdoor applications. Its 6KV lightning rating provides protectection against the camera and its structure from the effects of lightning.

IPC-HFW1120S-W – DAHUA DH-IPC-HFW1120S-W 1.3MP IR Mini-Bullet Wi-Fi Network Camera with H.264 & MJPEG dual-stream encoding IPC-HFW1120S-W  Picture

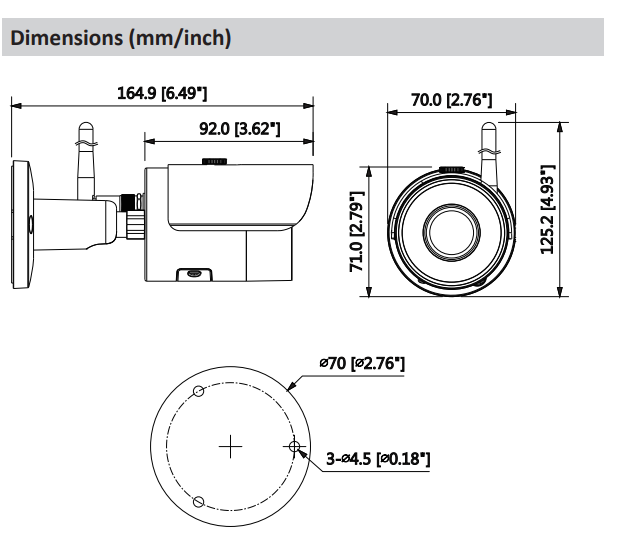

IPC-HFW1120S-W – DAHUA DH-IPC-HFW1120S-W 1.3MP IR Mini-Bullet Wi-Fi Network Camera with H.264 & MJPEG dual-stream encoding IPC-HFW1120S-W  Dimension

IPC-HFW1120S-W – DAHUA DH-IPC-HFW1120S-W 1.3MP IR Mini-Bullet Wi-Fi Network Camera with H.264 & MJPEG dual-stream encoding IPC-HFW1120S-W  Installation
