IPC-HFS7842-Z-5G-LED - DAHUA DH-IPC-HFS7842-Z-5G-LED 8MP 5G Bullet WizMind Network Camera With 5G Face Detection Perimeter Protection DAHUA IPC-HFS7842-Z-5G-LED without logo

IPC-HFS7842-Z-5G-LED

8MP 5G Bullet WizMind Network Camera

> 8MP 1/1.8" CMOS image sensor, low illuminance, high image definition

> Outputs max. 8MP (3840 × 2160) @25/30 fps · H.265 codec, high compression rate, ultra-low bit rate

> Built-in efficient warm light, max. illumination distance: 80 m

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments

> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking

> With deep learning algorithm, it supports people counting, face detection,perimeter protection, video metadata etc · Alarm: 7 in, 3 out; audio: 2 in, 1 out; 485; BNC; supports max. 256 G SD card

> 12V DC power supply; easy for installation

> IP67 protection

> GPS/BDS

> Support 5G module (N41, N78, and N79 frequency range), and NSA and SA network

IPC-HFS7842-Z-5G-LED - DAHUA DH-IPC-HFS7842-Z-5G-LED 8MP 5G Bullet WizMind Network Camera With 5G Face Detection Perimeter Protection DAHUA IPC-HFS7842-Z-5G-LED without logo System Overview

 WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

With advanced deep learning algorithm, Dahua WizMind 7 Series network camera supports various intelligent functions and satisfies the requirements in different scenes. The camera can accurately recognize person, vehicle, and non-motor vehicle, face, ANPR, and liveness. This series camera has ultra starlight night version effect, and works with ultra-low stream. It supports dust-proof function, waterproof function and vandalproof function, complying with the standards of IP67.

IPC-HFS7842-Z-5G-LED - DAHUA DH-IPC-HFS7842-Z-5G-LED 8MP 5G Bullet WizMind Network Camera With 5G Face Detection Perimeter Protection DAHUA IPC-HFS7842-Z-5G-LED without logo Functions

5G

Equipped with built-in high-performance 5G mobile communication module, the network camera supports 5G network connection and two networking methods: Non-Standalone (NSA) and Standalone (SA). It is backward compatible with 4G connection (The module is different for band compatibility). It can be registered on the platform through wireless connection, and can transmit videos, pictures, intelligent feature information, and alarm events. Through the client, you can remotely monitor and operate in real time.

Video Metadata

With deep learning algorithm, Dahua Video Metadata technology can detect, track, capture vehicle, non-motor vehicle and people, and select the best images, and extract attributes.

Face Detection

Face Detection technology can detect the face in the image. With deep learning algorithm, the technology supports detecting, tracking, capturing and selecting the best face image, and then outputs face snapshot.

ANPR

With high-performance GPU chip, deep learning algorithm, and lots of sample training learning, Dahua ANPR technology can automatically collect and recognize the vehicle information, including license plate, logo, vehicle type, and vehicle color

Perimeter Protection

With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.

Smart H.265+ & Smart H.264+

With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Perimeter Protection

With deep learning algorithm, Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.

Protection (IP67, wide voltage)

IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 cm (Impact energy is 20J). Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

IPC-HFS7842-Z-5G-LED - DAHUA DH-IPC-HFS7842-Z-5G-LED 8MP 5G Bullet WizMind Network Camera With 5G Face Detection Perimeter Protection DAHUA IPC-HFS7842-Z-5G-LED without logo Picture

IPC-HFS7842-Z-5G-LED - DAHUA DH-IPC-HFS7842-Z-5G-LED 8MP 5G Bullet WizMind Network Camera With 5G Face Detection Perimeter Protection DAHUA IPC-HFS7842-Z-5G-LED without logo Dimensions

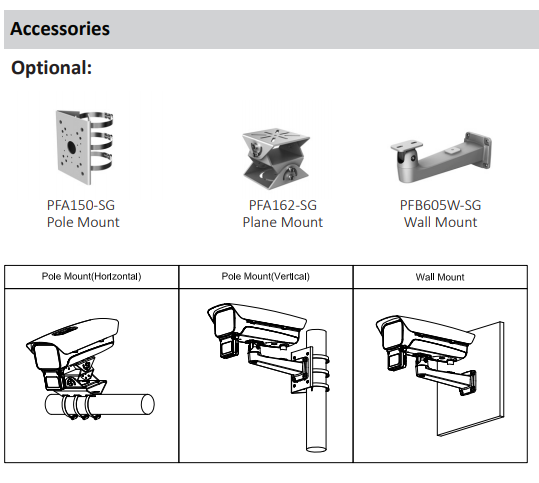

IPC-HFS7842-Z-5G-LED - DAHUA DH-IPC-HFS7842-Z-5G-LED 8MP 5G Bullet WizMind Network Camera With 5G Face Detection Perimeter Protection DAHUA IPC-HFS7842-Z-5G-LED without logo Installation
