IPC-HF8630F - DAHUA DH-IPC-HF8630F 6MP Box Network Camera with Intelligent Video System (IVS) Business intelligent analysis (People counting, Heatmap) H.265 IPC-HF8630F without logo

IPC-HF8630F

6MP Box Network Camera

> 1/1.8” 6Megapixel progressive scan CMOS
> H.265&H.264 triple-stream encoding
> 25/30fps@6M(3072×2048)
> DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> Auto back focus(ABF)
> Micro SD memory, PoE

>Excluding lens
>without Logo,English firmware
>100% original products manufactured by DAHUA

IPC-HF8630F - DAHUA DH-IPC-HF8630F 6MP Box Network Camera with Intelligent Video System (IVS) Business intelligent analysis (People counting, Heatmap) H.265 IPC-HF8630F without logo  System Overview

Ultra series product adopts high performance DSP and Sony advanced image sensor technology, which can provide excellent image effects for users such as UHD resolution, starlight and super WDR etc. The series utilizes Dahua advanced software algorithm, which is able to support people counting and heat map, bringing extra business analysis value for customers; IP67, IK10 and heater compliance enables the product to be applied in a more harsh environment.

IPC-HF8630F - DAHUA DH-IPC-HF8630F 6MP Box Network Camera with Intelligent Video System (IVS) Business intelligent analysis (People counting, Heatmap) H.265 IPC-HF8630F without logo  Functions

Smart Scene Adaptive (SSA)

Smart Scene Adaptive (SSA) is a Dahua self-developed intelligent image technology, the camera automatically evaluates the change in scene, in particular strong lights.In a strong backlight environment, it will automatically regulate exposure parameters to get better image quality. This can effectively address the impact of traffic lights, providing excellent video quality.

Business intelligent analysis (People counting, Heatmap)

Camera also supports more advanced intelligent features such as people counting and heat map besides basic IVS functions. These two functions can be applied to business intelligence and bring extra values to customers. It is available to acquire daily, weekly, monthly and yearly people flow via people counting and output data report. Heat map can be based on a moving object in time of space movement for analysis, find the most active area and output the report, which is to provide valuable data support for commercial applications.

HEVC (H.265)

HEVC (H.265) H.265 ITU-T VCEG is a new video coding standard. H.265 Following standard developed around the existing video coding standard H.264 , some retain the original technology , while some of the relevant technology to improve the new technology uses advanced technology to improve the relationship between the code stream , encoding quality , and the delay between algorithm complexity , optimize settings specific contents include : Improve compression efficiency , improve the robustness and error recovery capabilities, real-time to reduce the delay, reduce channel acquisition time and a random access delay , reduce complexity , etc

IPC-HF8630F - DAHUA DH-IPC-HF8630F 6MP Box Network Camera with Intelligent Video System (IVS) Business intelligent analysis (People counting, Heatmap) H.265 IPC-HF8630F without logo Picture

IPC-HF8630F - DAHUA DH-IPC-HF8630F 6MP Box Network Camera with Intelligent Video System (IVS) Business intelligent analysis (People counting, Heatmap) H.265 IPC-HF8630F without logo Dimension

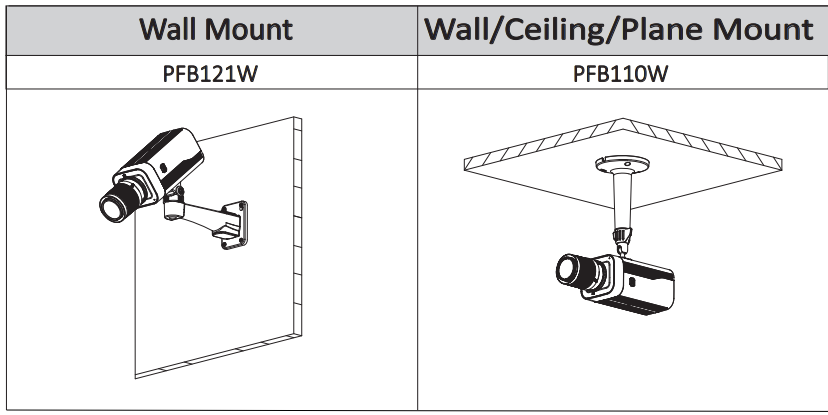

IPC-HF8630F - DAHUA DH-IPC-HF8630F 6MP Box Network Camera with Intelligent Video System (IVS) Business intelligent analysis (People counting, Heatmap) H.265 IPC-HF8630F without logo Installation
