IPC-HF8241F – DAHUA DH-IPC-HF8241F 2MP Starlight AI Box Network Camera with H.265 Perimeter Protection and People counting functions Ultra WDR IPC-HF8241F

In stock
SKU
IPC-HF8241F
$370.98

IPC-HF8241F

2MP AI Box Network Camera

> 1/2.8” 2Megapixel progressive scan CMOS

> H.265&H.264 triple-stream encoding

> 50/60fps@1080P(1920×1080)

> WDR(140dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC

> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

> Auto back focus(ABF)

> Micro SD memory, PoE+

> Excluding lens

> without Logo,English firmware
> 100% original products manufactured by DAHUA

The delivery time is 25 working days

Special Note:
Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee

IPC-HF8241F – DAHUA DH- IPC-HF8241F 2MP Starlight AI Box Network Camera with H.265 Perimeter Protection and People counting functions Ultra WDR IPC-HF8241F without logo

IPC-HF8241F

2MP AI Box Network Camera

> 1/2.8” 2Megapixel progressive scan CMOS

> H.265&H.264 triple-stream encoding

> 50/60fps@1080P(1920×1080)

> WDR(140dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC

> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

> Auto back focus(ABF)

> Micro SD memory, PoE+
> Excluding lens

> without Logo,English firmware
> 100% original products manufactured by DAHUA


AI series products adopt the most advanced AI technologies, including deep learning algorithms that primarily target people and vehicles, which provides higher flexibility and accuracy for end-users. This enables the Dahua AI series to offer various advanced applications such as Face Recognition, ANPR, Metadata, People Counting, traffic data statistics, etc.The complete lineup of Dahua AI includes network (PTZ) cameras, network video recorders, servers, and platform management products. Beyond seeing the world, the power of AI allows devices to perceive the environment and understand the world in a better way.

The Future has Arrived for AI

IPC-HF8241F – DAHUA DH- IPC-HF8241F 2MP Starlight AI Box Network Camera with H.265 Perimeter Protection and People counting functions Ultra WDR IPC-HF8241F without logo  System Overview

DAHUA Smart retail solutionPowered by deep-learning Artificial Intelligence algorithms, Dahua’s Perimeter Protection and People counting functions significantly improved accuracy. Perimeter Protection reduces false alarms and decreases pixel count requirements for object detection. Perimeter Protection features custom tripwires based on object type for automation in limited access areas such as pedestrian or vehicle-only zones. This combination of advanced AI analytics and real-time alerts to a desktop or to a mobile client reduces system requirements and resources resulting in greater surveillance system efficiency. People Counting function uses advanced image processing technology to capture depth information from within images. The camera pairs this information with deep learning algorithms to analyze and detect human bodies and track target objects in real time. The camera provides statistics for separate individuals’ entrance and exit with up to 95% counting accuracy.

IPC-HF8241F – DAHUA DH- IPC-HF8241F 2MP Starlight AI Box Network Camera with H.265 Perimeter Protection and People counting functions Ultra WDR IPC-HF8241F without logo  Functions

Starlight Technology

Featuring Dahua’s Starlight Technology, this camera is ideal for applications with challenging lighting conditions. Its low-light performance delivers usable video with minimal ambient light. Even in extreme low-light conditions, Starlight Technology is capable of delivering color images in near complete darkness.

starlight

Ultra WDR

Standard WDR/HDR camera can provide 120dB dynamic range,However, for some scenes with wider contrast range, 120dB is slightly insufficient. By adopting the latest technology, Dahua Cameras can provide an amazing dynamic range up to140dB.

Smart Codec (H.265+ & H.264+)

Smart Codec is the optimized implementation of standard video compression (H.265 & H.264) that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart Codec technology reduces bit rate and storage requirements by up to 70% when compared to the standard video compression.

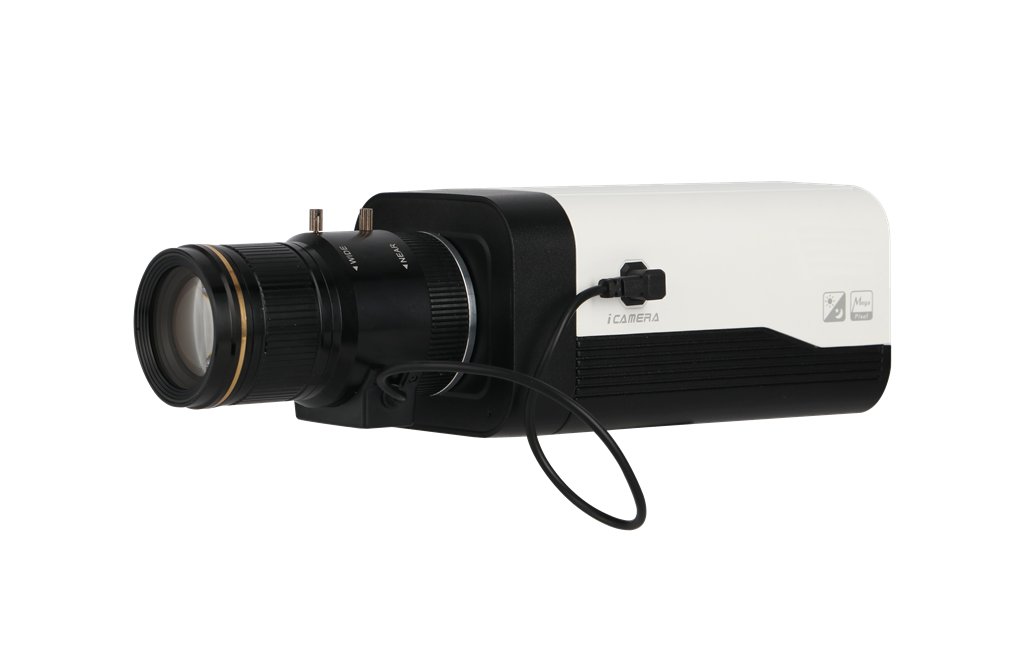

IPC-HF8241F – DAHUA DH- IPC-HF8241F 2MP Starlight AI Box Network Camera with H.265 Perimeter Protection and People counting functions Ultra WDR IPC-HF8241F without logo Picture


IPC-HF8241F

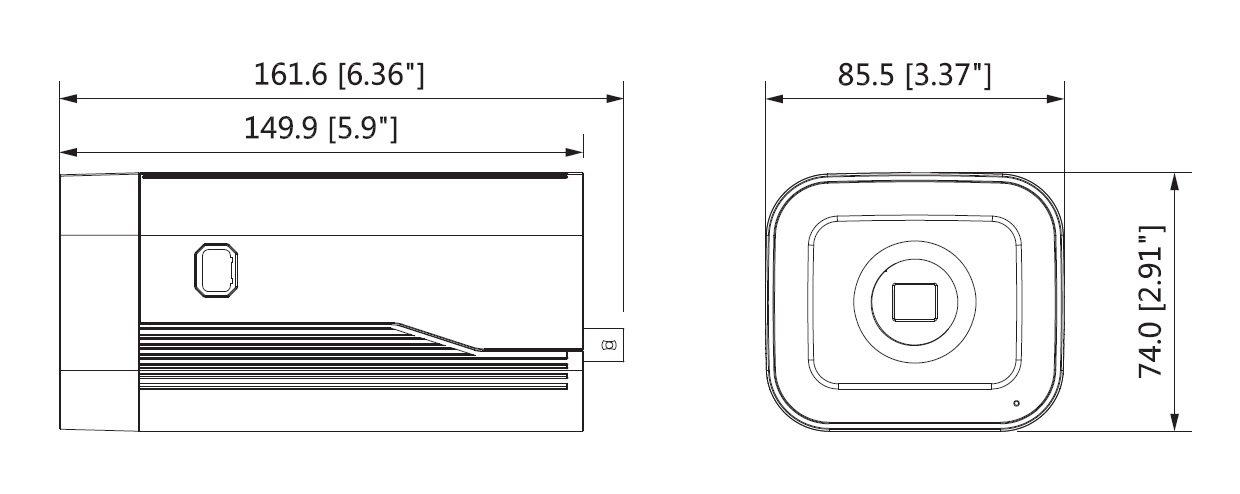

IPC-HF8241F – DAHUA DH- IPC-HF8241F 2MP Starlight AI Box Network Camera with H.265 Perimeter Protection and People counting functions Ultra WDR IPC-HF8241F without logo Dimension

IPC-HF8241F

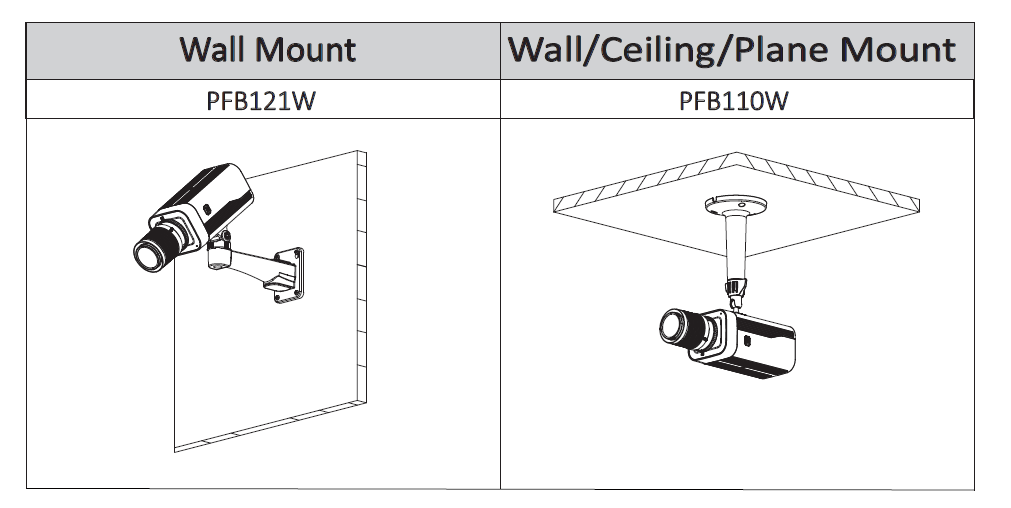

IPC-HF8241F – DAHUA DH- IPC-HF8241F 2MP Starlight AI Box Network Camera with H.265 Perimeter Protection and People counting functions Ultra WDR IPC-HF8241F without logo Installation



IPC-HF8241F

DAHUA DH-IPC-HF3241F

IPC-HF8241F – DAHUA DH- IPC-HF8241F 2MP Starlight AI Box Network Camera with H.265 Perimeter Protection and People counting functions Ultra WDR IPC-HF8241F without logo Specification



Technical Specifications

****

Camera

Image Sensor

1/2.8” 2Megapixel progressive scan CMOS

Effective Pixels

1920(H)x1080(V)

RAM/ROM

1024MB/4096MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.004Lux/F1.2(Color,1/3s,30IRE)

0.04Lux/F1.2(Color,1/30s,30IRE)

0.002Lux/F1.2(B/W,1/3s,30IRE)

0.02Lux/F1.2(B/W,1/30s,30IRE)

S/N Ratio

More than 50dB

IR Distance

N/A

IR On/Off Control

N/A

IR LEDs

N/A

Lens

Lens Type

N/A

Mount Type

C/CS

Focal Length

N/A

Max. Aperture

N/A

Angle of View

N/A

Optical Zoom

N/A

Focus Control

N/A

Close Focus Distance

N/A

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

N/A

Artificial Intelligence

People Counting

Line crossing people counting, Region people counting, Loitering filter

Perimeter Protection

Tripwire, Intrusion(Human&Vehicle classification)

General Intelligence

Event Trigger

Motion detection, Video tampering , Scene changing,

Network disconnection , IP address conflict, Illegal

Access,Storage anomaly

General Intelligence

N/A

Video

Compression

H.265/H.264/H.264B/H.264H/MJPEG(Sub Stream)

Smart Codec

Support H.265+/H.264+

Streaming Capability

3 Streams

Resolution

1080P(1920×1080)/ 1.3M(1280x960)/ 720P(1280x720)/ D1(704×576/704x480)/ VGA(640x480)

Frame Rate

Main Stream: 1080P(1~50/60fps)

Sub Stream: D1 (1 ~ 50/60fps)

Third Stream: 1080P(1~19/29fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 24~ 10240Kbps

H.265: 14~ 6144Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / WDR(140dB)/SSA

White Balance

Auto/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization (EIS)

Support

Smart IR

N/A

Defog

Support

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

G.711a/G.711Mu/AAC/ G.726

Network

Ethernet

RJ-45 (100/1000Base-T)

Protocol

HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;

FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;

NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;SNMP;TLS

Interoperability

ONVIF Profile S&G, API

Streaming Method

Unicast / Multicast

Max. User Access

10 Users/20 Users

Edge Storage

NAS

Local PC for instant recording

Mirco SD card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Certifications

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

1 port(BNC,1Vp-p,75Ω )

Audio Interface

2/1 channel In/Out, 1 Built-in Mic

RS485

1 port

Alarm

2 channel In: 5mA 5VDC

2 channel Out: 1A 30VDC / 0.5A 50VAC

Electrical

Power Supply

DC12V, AC24V, PoE(802.3at)(Class 4)

Power Consumption

DC 12V: 6.4W 13.6W (ICR)

PoE: 5.7W 13.1W (ICR)

Environmental

Operating Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Storage Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection

N/A

Vandal Resistance

N/A

Construction

Casing

Metal

Dimensions

161.6mm×85.5mm×74.0mm (6.36×3.37×2.91)

Net Weight

0.78Kg (1.72lb)

Gross Weight

0.92Kg (2.03lb)

****

**

Icctvzone-wholesales DAHUA IP Cameras
Icctvzone IP surveillance

Icctvzone-wholesales DAHUA NVR

best price of DAHUA camera

**


More Information
Wired/Wireless Wired
Outdoor use Hosing required
Focal Type Lens not included
Day/Night Low light
Factor Box
Max Resolution 2 MP
