IPC-HF81230E-E– DAHUA DH- IPC-HF81230E-E 12MP 4K Box Network Camera with ePoE E-PTZ Business intelligent analysis (People counting, Heatmap) IPC-HF81230E-E

IPC-HF81230E-E

12MP Box Network Camera

> ,English firmware
> 100% original products manufactured by DAHUA

IPC-HF81230E-E– DAHUA DH- IPC-HF81230E-E 12MP 4K Box Network Camera with ePoE E-PTZ Business intelligent analysis (People counting, Heatmap) IPC-HF81230E-E  System Overview

Ultra series adopts high performance DSP and Sony advanced image sensor technology, which can provide excellent image effects for users. With Dahua advanced software algorithm, the series is able to support people counting and heat map which brings extra business analysis value for customers.

IPC-HF81230E-E– DAHUA DH- IPC-HF81230E-E 12MP 4K Box Network Camera with ePoE E-PTZ Business intelligent analysis (People counting, Heatmap) IPC-HF81230E-E  Functions

ePoE technology

The ePoE technology of Dahua, designed internally, adopts advanced 2D-PAM3 coding modulation from physical layer, and realizes full duplex transmission over 800 meters at the speed of 10Mbps, or 300 meters at the speed of 100Mbps via Cat 5 or coaxial cable media. Besides, it supports PoE and PoC power supply technology which has greatly simplified construction and wiring. Dahua ePoE technology offer a new way to accomplish long distance transmission between IP camera and network switch. It allows more flexible surveillance system design, improves reliability and saves construction and wiring cost.

4K technology

4K resolution is a revolutionary breakthrough in image processing technology. 4K delivers four times the resolution of standard HDTV 1080p cameras and offers superior picture quality and image details. 4K resolution improves the clarity of a magnified scene to view or record crisp forensic video from large areas.

E-PTZ function

E- PTZ ( electronic -PTZ ( pan / tilt / zoom function ) . Is a virtual technology . Through E- PTZ function can be achieved on the local area pan, zoom and other functions . Mostly It appeared in Megapixel or more cameras.

Business intelligent analysis (People counting, Heatmap)

Camera also supports more advanced intelligent features such as people counting and heat map besides basic IVS functions. These two functions can be applied to business intelligence and bring extra values to customers. It is available to acquire daily, weekly, monthly and yearly people flow via people counting and output data report. Heat map can be based on a moving object in time of space movement for analysis, find the most active area and output the report, which is to provide valuable data support for commercial applications.

Smart Codec (H.265+ & H.264+)

Smart Codec is the optimized implementation of standard video compression (H.265 & H.264) that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart Codec technology reduces bit rate and storage requirements by up to 70% when compared to the standard video compression.

IPC-HF81230E-E– DAHUA DH- IPC-HF81230E-E 12MP 4K Box Network Camera with ePoE E-PTZ Business intelligent analysis (People counting, Heatmap) IPC-HF81230E-E  Picture

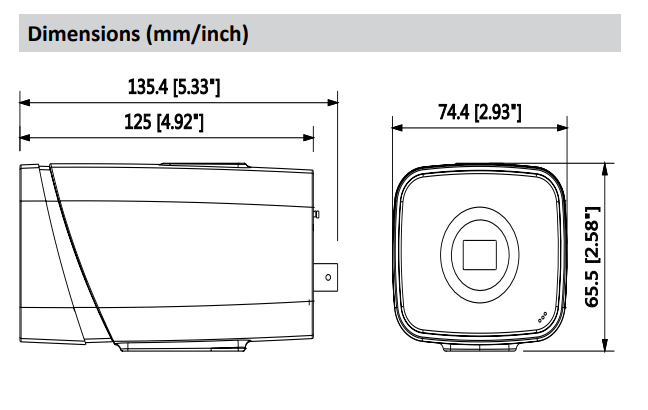

IPC-HF81230E-E– DAHUA DH- IPC-HF81230E-E 12MP 4K Box Network Camera with ePoE E-PTZ Business intelligent analysis (People counting, Heatmap) IPC-HF81230E-E  Dimension

IPC-HF81230E-E– DAHUA DH- IPC-HF81230E-E 12MP 4K Box Network Camera with ePoE E-PTZ Business intelligent analysis (People counting, Heatmap) IPC-HF81230E-E  Installation
