IPC-HDW5541TM-ASE- DAHUA DH-IPC-HDW5541TM-ASE 5MP WDR IR Eyeball WizMind Network Camera With People Counting Face Detection Perimeter Protection IPC-HDW5541TM-ASE

IPC-HDW5541TM-ASE

5MP WDR IR Eyeball WizMind Network Camera

> 1/2.7” 5Megapixel progressive scan CMOS

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments

> 20 fps@2592 × 1944, 50/60 fps@1080P (1920 × 1080)

> WDR (120 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC

> Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS

> 2.8 mm fixed lens (3.6 mm, 6.0 mm optional)

> Built-in MIC

> Max. IR LEDs Length 50 m

> Micro SD memory, IP67

IPC-HDW5541TM-ASE- DAHUA DH-IPC-HDW5541TM-ASE 5MP WDR IR Eyeball WizMind Network Camera With People Counting Face Detection Perimeter Protection IPC-HDW5541TM-ASE System Overview

 WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

With starlight solution and deep learning algorithm, Dahua WizMind 5 Series network camera has various intelligent functions, including face capture, perimeter protection and people counting, which greatly improve the accuracy of video analysis. The series camera supports dust-proof function, waterproof function and vandal-proof function, complying with the standards of IP67 and IK10 (Supported by some select models)..

IPC-HDW5541TM-ASE- DAHUA DH-IPC-HDW5541TM-ASE 5MP WDR IR Eyeball WizMind Network Camera With People Counting Face Detection Perimeter Protection IPC-HDW5541TM-ASE Functions

ePoE

ePoE technology provides a new way to accomplish long distance transmission between IP camera and network switch. It allows more flexible surveillance system design, improves reliability and saves construction and wiring cost.

Face Detection

Face Detection technology can detect the face in the image. With deep learning algorithm, the technology supports detecting, tracking, capturing and selecting the best face image, and then outputs face snapshot.

Face Attributes

With deep learning algorithm, the network camera can recognize face attributes, such as gender, age, expression, glasses, mouth mask, and beard.

People Counting

With deep learning algorithm, Dahua People Counting technology can track and process moving human body targets to realize the accurate statistics of enter No., leave No., and In Area No. Working with management platform, it outputs yearly/monthly/weekly/daily reports to meet your requirements..

Smart H.265+ & Smart H.264+

With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Perimeter Protection

With deep learning algorithm, Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.

Protection (IP67, wide voltage)

IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 cm (Impact energy is 20J). Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

IPC-HDW5541TM-ASE- DAHUA DH-IPC-HDW5541TM-ASE 5MP WDR IR Eyeball WizMind Network Camera With People Counting Face Detection Perimeter Protection IPC-HDW5541TM-ASE Picture

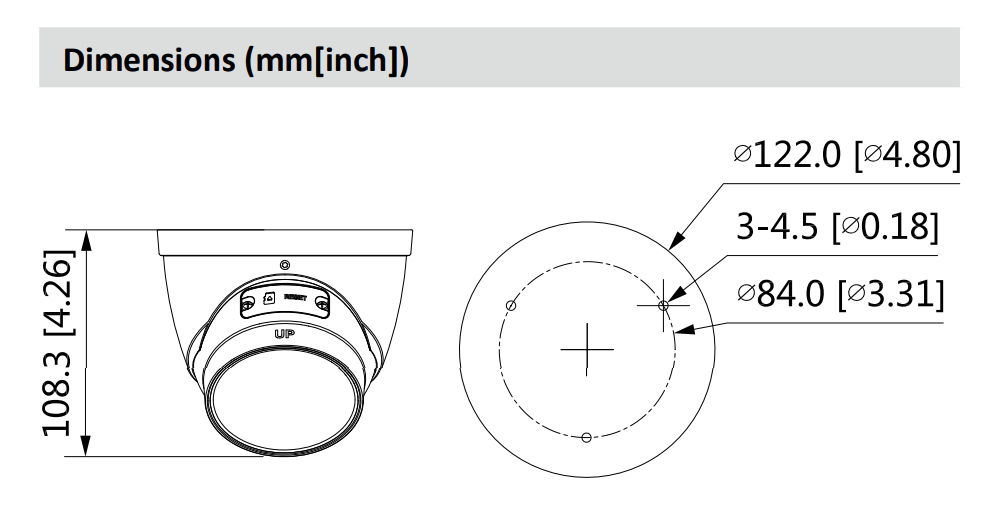

IPC-HDW5541TM-ASE- DAHUA DH-IPC-HDW5541TM-ASE 5MP WDR IR Eyeball WizMind Network Camera With People Counting Face Detection Perimeter Protection IPC-HDW5541TM-ASE  Dimensions

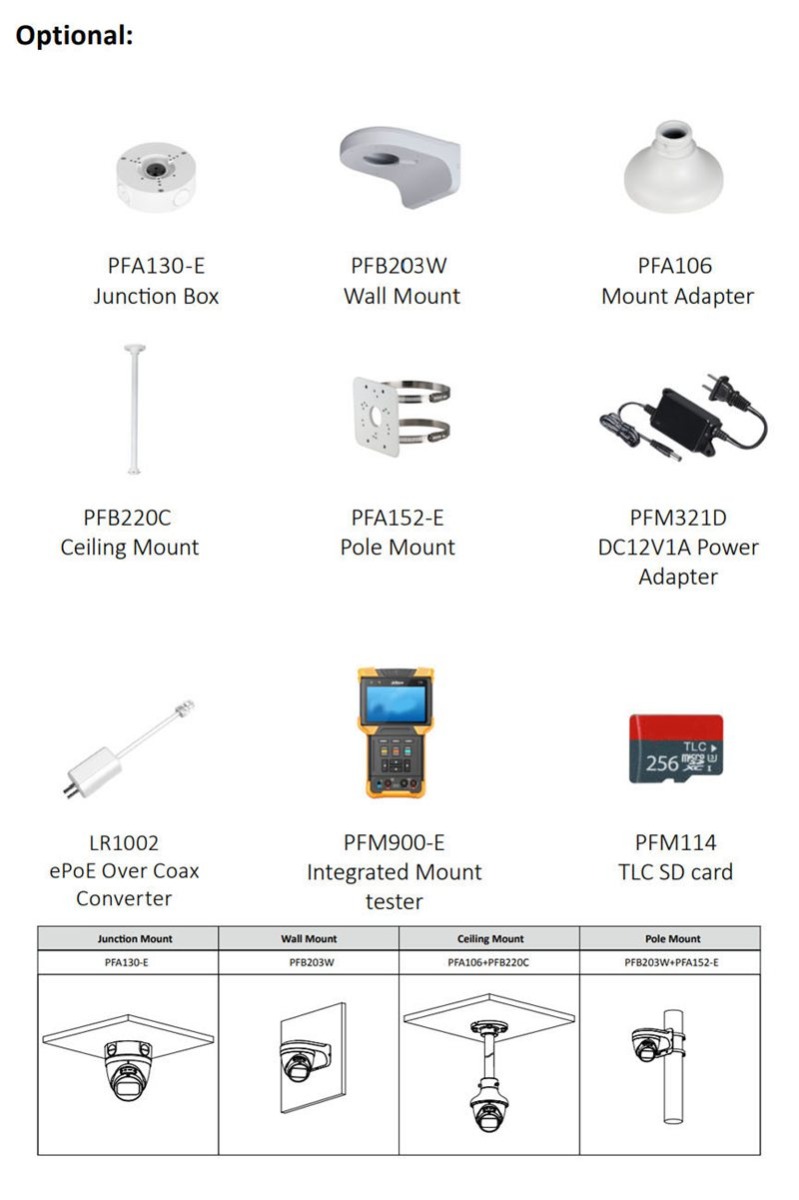

IPC-HDW5541TM-ASE- DAHUA DH-IPC-HDW5541TM-ASE 5MP WDR IR Eyeball WizMind Network Camera With People Counting Face Detection Perimeter Protection IPC-HDW5541TM-ASE  Installation
