IPC-HDW3449TM-AS-NI - DAHUA DH-IPC-HDW3449TM-AS-NI 4MP Full-color Fixed-focal Eyeball WizSense Network Camera With Full-color Perimeter Protection SMD Plus IPC-HDW3449TM-AS-NI
IPC-HDW3449TM-AS-NI
4MP Full-color Fixed-focal Eyeball WizSense Network Camera
> 4MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
> Outputs max. 4MP (2688 × 1520) @ 30 fps
> H.265 codec, high compression rate, low bit rate
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
> Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
> Supports max. 256 G Micro SD card, built-in Mic
> 12V DC/POE power supply
> IP67 protection
> SMD Plus
The delivery time is 15-25 working days
DAHUA original firmware, Upgradable,2 year guarantee
IPC-HDW3449TM-AS-NI - DAHUA DH-IPC-HDW3449TM-AS-NI 4MP Full-color Fixed-focal Eyeball WizSense Network Camera With Full-color Perimeter Protection SMD Plus IPC-HDW3449TM-AS-NI
IPC-HDW3449TM-AS-NI
4MP Full-color Fixed-focal Eyeball WizSense Network Camera
> 4MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
> Outputs max. 4MP (2688 × 1520) @ 30 fps
> H.265 codec, high compression rate, low bit rate
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
> Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
> Supports max. 256 G Micro SD card, built-in Mic
> 12V DC/POE power supply
> IP67 protection
> SMD Plus
IPC-HDW3449TM-AS-NI - DAHUA DH-IPC-HDW3449TM-AS-NI 4MP Full-color Fixed-focal Eyeball WizSense Network Camera With Full-color Perimeter Protection SMD Plus IPC-HDW3449TM-AS-NI System Overview
WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
With advanced deep learning algorithm, WizSense 3 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. In addition, with full-color technology, it provides a better image effect in the condition of low illuminance.
IPC-HDW3449TM-AS-NI - DAHUA DH-IPC-HDW3449TM-AS-NI 4MP Full-color Fixed-focal Eyeball WizSense Network Camera With Full-color Perimeter Protection SMD Plus IPC-HDW3449TM-AS-NI Functions
Full-color
With high-performance sensor and large aperture lens, Dahua Full-color technology can display clear colorful image in the environment of ultralow illuminance. With this photosensitivity technology, the camera can capture more available light, and display more colorful image details.
SMD Plus
With intelligent algorithm, Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.Smart (H.265+ & H.264+)
Adopting advanced algorithm of auto stream control according to the environment, smart encoding technology realizes the higher efficiency than (H.265 & H.264 ), providing high-quality video, and reducing the cost of storage and transmission.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
Perimeter Protection
With deep learning algorithm, Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.
Wide dynamic range (WDR)
adopts advanced Wide Dynamic Range (WDR) technology. You can get clear details in the environment of strong brightness contrast. In high brightness and back-light environment, bright region and dark region with strong light source, you can also get clear images.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

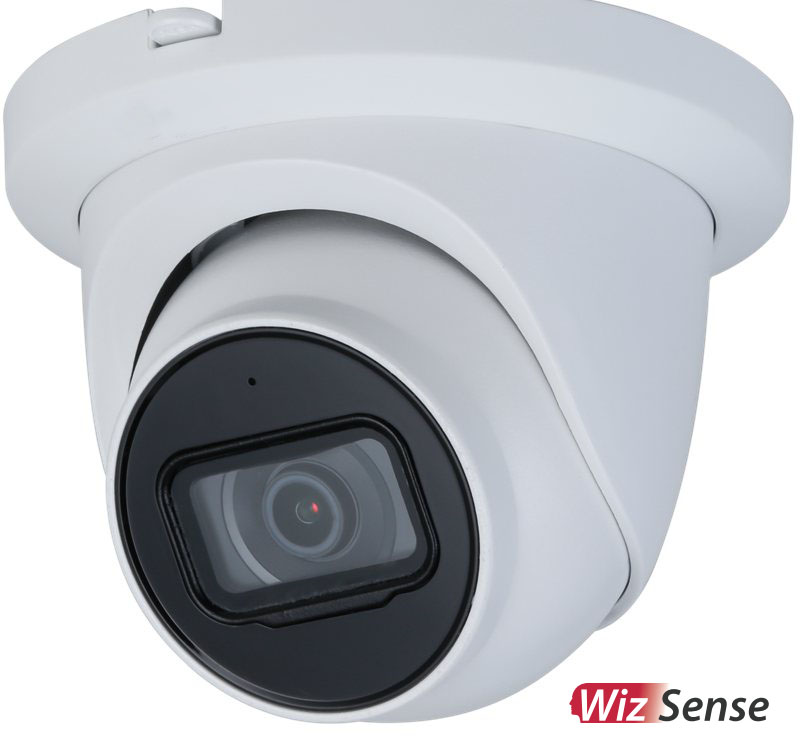

IPC-HDW3449TM-AS-NI - DAHUA DH-IPC-HDW3449TM-AS-NI 4MP Full-color Fixed-focal Eyeball WizSense Network Camera With Full-color Perimeter Protection SMD Plus IPC-HDW3449TM-AS-NI Picture
IPC-HDW3449TM-AS-NI - DAHUA DH-IPC-HDW3449TM-AS-NI 4MP Full-color Fixed-focal Eyeball WizSense Network Camera With Full-color Perimeter Protection SMD Plus IPC-HDW3449TM-AS-NI Dimensions
IPC-HDW3449TM-AS-NI - DAHUA DH-IPC-HDW3449TM-AS-NI 4MP Full-color Fixed-focal Eyeball WizSense Network Camera With Full-color Perimeter Protection SMD Plus IPC-HDW3449TM-AS-NI Installation
IPC-HDW3449TM-AS-NI - DAHUA DH-IPC-HDW3449TM-AS-NI 4MP Full-color Fixed-focal Eyeball WizSense Network Camera With Full-color Perimeter Protection SMD Plus IPC-HDW3449TM-AS-NI Technical Specifications
***
*
Camera |
|||||
Image Sensor |
1/2.8”4Megapixel progressive CMOS |
||||
Max. Resolution |
1920 (H) × 1080 (V) |
||||
ROM |
128 MB |
||||
RAM |
512 MB |
||||
Scanning System |
Progressive |
||||
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
||||
Min. Illumination |
0.0015 Lux @ F1.0 |
||||
S/N Ratio |
> 56 dB |
||||
Pan/Tilt/Rotation Range |
Horizontal: 0°–360°; vertical: 0°–78°; rotation: 0°–360° |
||||
Lens |
|||||
Lens Type |
Fixed-focal |
||||
Mount Type |
M12 |
||||
Focal Length |
2.8 mm; 3.6 mm |
||||
Max. Aperture |
F1.0 |
||||
Field of View |
2.8 mm: Horizontal 107° × vertical 55° × diagonal 127° 3.6 mm: Horizontal 84° × vertical 45° × diagonal 99° |
||||
Iris Type |
Fixed |
||||
Close Focus Distance |
2.8 mm: 0.8 m (2.6 ft) 3.6 mm: 1.7 m (5.6 ft) |
||||
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
2.8mm |
38.6 m (126.6 ft) |
15.4 m (50.5 ft) |
7.7 m (25.3 ft) |
3.9 m (12.8 ft) |
|
3.6mm |
55.2 m (181.1 ft) |
22.1 m (72.5 ft) |
11.0 m (36.1 ft) |
5.5 m (18.0 ft) |
|
Professional, Intelligent |
|||||
Perimeter Protection |
Tripwire, intrusion (Recognition of vehicle and people) |
||||
Intelligent Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
||||
Video |
|||||
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
||||
Smart Codec |
Smart H.265+/ Smart H.264+ |
||||
Video Frame Rate |
Main stream (1920 × 1080 @ 1–25/30 fps) |
||||
Stream Capability |
3 streams |
||||
Resolution |
1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
||||
Bit Rate Control |
CBR; VBR |
||||
Video Bit Rate |
H.264: 3 kbps–8192 kbps |
||||
Day/Night |
Color/B/W |
||||
BLC |
Yes |
||||
WDR |
120 dB |
||||
White Balance |
Auto/natural/street lamp/outdoor/manual/regional custom |
||||
Gain Control |
Auto/Manual |
||||
Noise Reduction |
3D DNR |
||||
Motion Detection |
OFF/ON (4 areas, rectangular) |
||||
Region of Interest (RoI) |
Yes (4 areas) |
||||
Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower.) |
||||
Mirror |
Yes |
||||
Privacy Masking |
4 areas |
||||
Audio |
|||||
Built-in MIC |
Yes |
||||
Audio Compression |
G.711a; G.711Mu; G726; AAC |
||||
Alarm |
|||||
Alarm Event |
No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; intensity change; tripwire; intrusion; SMD |
||||
Network |
|||||
Network |
RJ-45 (10/100 Base-T) |
||||
SDK and API |
Yes |
||||
Protocol |
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP |
||||
Interoperability |
ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec |
||||
Scene self-adaptation |
Yes |
||||
User/Host |
20 (Total bandwidth: 64M.) |
||||
Storage |
FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS |
||||
Browser |
IE: IE8; IE9; IE11 |
||||
Management Software |
Smart PSS; DSS; DMSS |
||||
Mobile Phone |
IOS; Android |
||||
Certification |
|||||
Certifications |
CE-LVD: EN62368-1 |
||||
Power |
|||||
Power Supply |
12V DC/PoE |
||||
Power Consumption |
< 4.1W |
||||
Environment |
|||||
Operating Conditions |
-40°C to +60°C (-40°F to +140°F)/ less than 95% |
||||
Storage Conditions |
-40°C to +60°C (-40°F to +140°F) |
||||
Protection Grade |
IP67 |
||||
Structure |
|||||
Casing |
Inner core: Metal Cover: Metal Decoration ring: Plastic |
||||
Dimensions |
99.1 mm × Φ121.9 mm (3.9" × Φ4.8") |
||||
Net Weight |
480 g (1.05 lb) |
||||
Gross Weight |
660 g (1.45 lb) |
*
*
*****
*******
**
**** DAHUA IPC-HDW3449TM-AS-NI,DAHUA DH-IPC-HDW3449TM-AS-NI,IPC-HDW3449TM-AS-NI,DAHUA DH-IPC-HDW3449TM-AS-NI,nvr poe camera system,dahua 4mp dome camera,dahua 4 megapixel camera,nvr ip kamera,cctv dahua 4mp,megapixel ip camera,ip network camera,Wholesales DAHUA Network Camera,Perimeter Protection***
Wired/Wireless | Wired |
---|---|
Outdoor use | Intdoor use, Outdoor use |
Focal Type | Fixed |
Day/Night | Low light |
Factor | Dome |
Max Resolution | 5 MP |
