IPC-HDBW81230E-ZE– DAHUA DH-IPC-HDBW81230E-ZE 12MP 4K IR Dome Network Camera with E-PTZ Business intelligent analysis (People counting, Heatmap) IPC-HDBW81230E-ZE

IPC-HDBW81230E-ZE

12MP IR Dome Network Camera

> ,English firmware
> 100% original products manufactured by DAHUA

IPC-HDBW81230E-ZE– DAHUA DH-IPC-HDBW81230E-ZE 12MP 4K IR Dome Network Camera with E-PTZ Business intelligent analysis (People counting, Heatmap) IPC-HDBW81230E-ZE System Overview

Ultra series adopts high performance DSP and Sony advanced image sensor technology, which can provide excellent image effects for users. With Dahua advanced software algorithm, the series is able to support people counting and heat map which brings extra business analysis value for customers. In addition, IP67, IK10 and heater compliance ensure the series can be applied in a harsher environment.

IPC-HDBW81230E-ZE– DAHUA DH-IPC-HDBW81230E-ZE 12MP 4K IR Dome Network Camera with E-PTZ Business intelligent analysis (People counting, Heatmap) IPC-HDBW81230E-ZE Functions

4K technology

4K resolution is a revolutionary breakthrough in image processing technology. 4K delivers four times the resolution of standard HDTV 1080p cameras and offers superior picture quality and image details. 4K resolution improves the clarity of a magnified scene to view or record crisp forensic video from large areas.

E-PTZ function

E- PTZ ( electronic -PTZ ( pan / tilt / zoom function ) . Is a virtual technology . Through E- PTZ function can be achieved on the local area pan, zoom and other functions . Mostly It appeared in Megapixel or more cameras.functions can be applied to business intelligence and bring extra values to customers. It is available to acquire daily, weekly, monthly and yearly people flow via people counting and output data report. Heat map can be based on a moving object in time of space movement for analysis, find the most active area and output the report, which is to provide valuable data support for commercial applications.

ePoE technology

The ePoE technology, designed internally, adopts advanced 2D-PAM3 coding modulation from physical layer, and realizes full duplex transmission over 800 meters at the speed of 10Mbps, or 300 meters at the speed of 100Mbps via Cat 5 or coaxial cable media. Besides, it supports PoE and PoC power supply technology which has greatly simplified construction and wiring. Dahua ePoE technology offer a new way to accomplish long distance transmission between IP camera and network switch. It allows more flexible surveillance system design, improves reliability and saves construction and wiring cost.

Smart Codec (H.265+ & H.264+)

Smart Codec is the optimized implementation of standard video compression (H.265 & H.264) that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart Codec technology reduces bit rateand storage requirements by up to 70% when compared to the standard video compression.

Environmental & Protection

With a temperature range of -40 °C to +60 °C (-40 °F to +140 °F), the camera is designed for extreme temperature environments. Supporting ±25% input voltage tolerance, this camera suits even the most unstable conditions for outdoor applications. Its 6KV lightning rating provides effective protection for both the camera and its structure against lightning. Subjected and certified to rigorous dust and immersion tests (IP67) and impact tests (IK10), The camera complies with an IK10 impact rating making it capable of withstanding the equivalent of 5 kg (11.02 lbs) of force dropped from a height of 40 cm (15.75 in.)

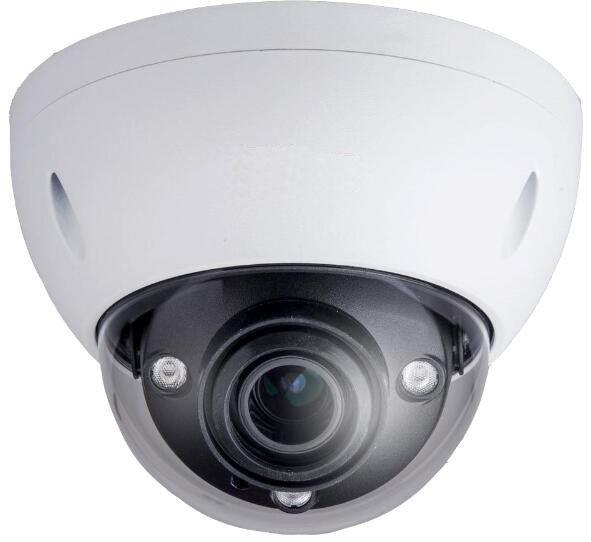

IPC-HDBW81230E-ZE– DAHUA DH-IPC-HDBW81230E-ZE 12MP 4K IR Dome Network Camera with E-PTZ Business intelligent analysis (People counting, Heatmap) IPC-HDBW81230E-ZE  Picture

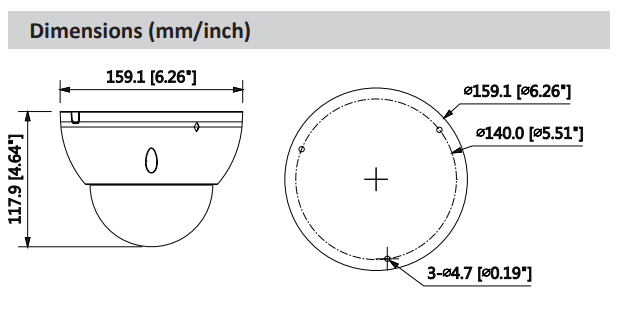

IPC-HDBW81230E-ZE– DAHUA DH-IPC-HDBW81230E-ZE 12MP 4K IR Dome Network Camera with E-PTZ Business intelligent analysis (People counting, Heatmap) IPC-HDBW81230E-ZE  Dimension

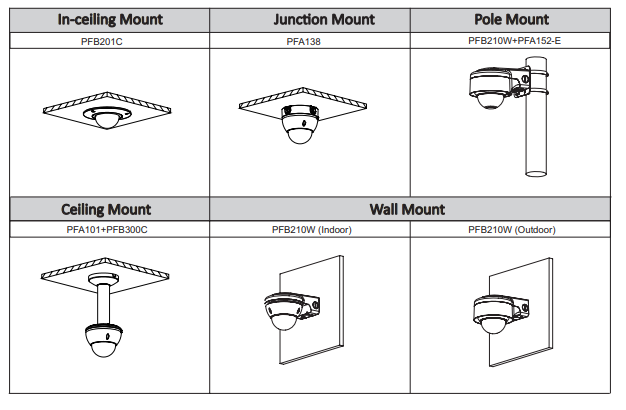

IPC-HDBW81230E-ZE– DAHUA DH-IPC-HDBW81230E-ZE 12MP 4K IR Dome Network Camera with E-PTZ Business intelligent analysis (People counting, Heatmap) IPC-HDBW81230E-ZE  Installation

****************

*

*

***************
