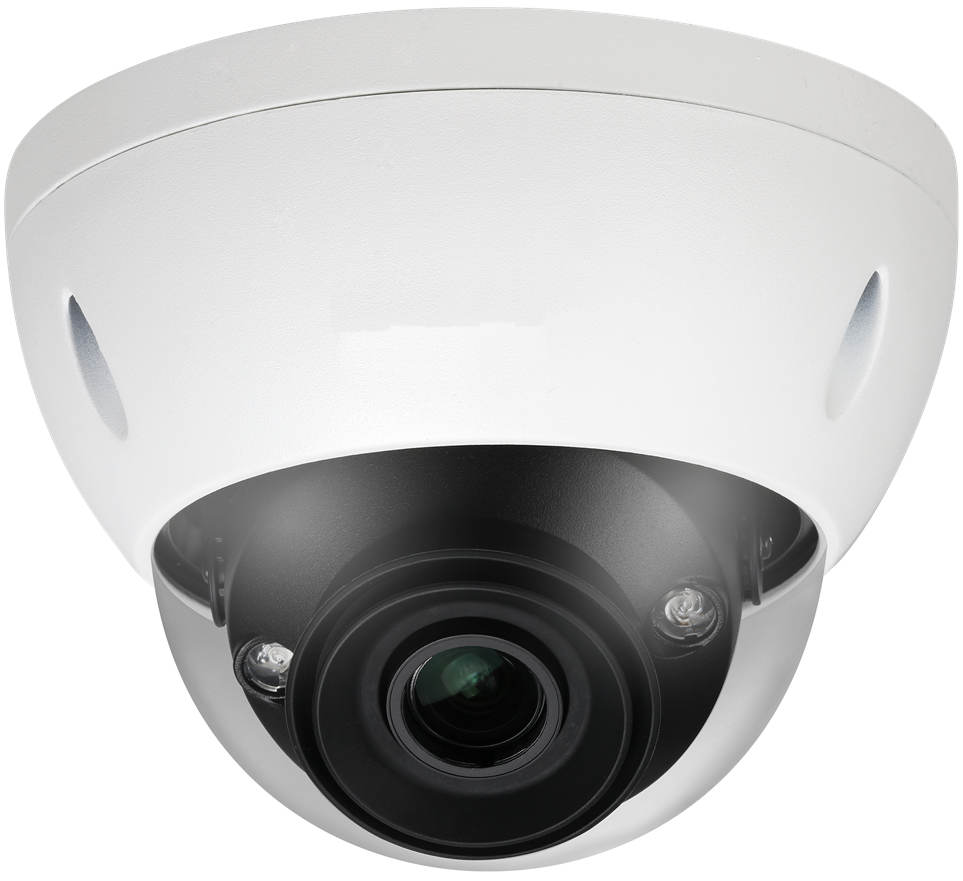

IPC-HDBW5241E-Z5E – DAHUA DH- IPC-HDBW5241E-Z5E 2MP Pro AI IR Vari-focal Dome Network Camera with H.265 ,ePoE technology ,7 mm–35 mm motorized lens IPC-HDBW5241E-Z5E

In stock

SKU

IPC-HDBW5241E-Z5E

Be the first to review this product

$215.86

IPC-HDBW5241E-Z5E

2MP Pro AI IR Vari-focal Dome Network Camera

> 1/2.8” 2Megapixel progressive scan STARVIS™ CMOS

> H.265 & H.264 triple-stream encoding

> 25/30 fps@1080P (1920 × 1080)

> WDR (120 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC

> Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS

> 7 mm–35 mm motorized lens

> 1/1 Alarm in/out, 1/1 audio in/out

> Max. IR LEDs Length 80 m

> Micro SD memory, IP67, IK10

> DAHUA Logo,English firmware

> 100% original products manufactured by DAHUA

Special Note:

Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee

Skip to the end of the images gallery

Skip to the beginning of the images gallery

IPC-HDBW5241E-Z5E – DAHUA DH- IPC-HDBW5241E-Z5E 2MP Pro AI IR Vari-focal Dome Network Camera with H.265 ,ePoE technology ,7 mm–35 mm motorized lens IPC-HDBW5241E-Z5E

IPC-HDBW5241E-Z5E

2MP Pro AI IR Vari-focal Dome Network Camera

> 1/2.8” 2Megapixel progressive scan STARVIS™ CMOS

> H.265 & H.264 triple-stream encoding

> 25/30 fps@1080P (1920 × 1080)

> WDR (120 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC

> Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS

> 7 mm–35 mm motorized lens

> 1/1 Alarm in/out, 1/1 audio in/out

> Max. IR LEDs Length 80 m

> Micro SD memory, IP67, IK10

> ,English firmware

> 100% original products manufactured by DAHUA

IPC-HDBW5241E-Z5E – DAHUA DH- IPC-HDBW5241E-Z5E 2MP Pro AI IR Vari-focal Dome Network Camera with H.265 ,ePoE technology ,7 mm–35 mm motorized lens IPC-HDBW5241E-Z5E System Overview

Pro AI series contains Face Detection, Perimeter Protection and People Counting functions.Powered by deep-learning Artificial Intelligence algorithms, significantly improved accuracy. Meanwhile, the series features starlight and smart IR technology. This series fully protected from dust and water, certified to IP67 and vandal resistant to IK10 standard.

IPC-HDBW5241E-Z5E – DAHUA DH- IPC-HDBW5241E-Z5E 2MP Pro AI IR Vari-focal Dome Network Camera with H.265 ,ePoE technology ,7 mm–35 mm motorized lens IPC-HDBW5241E-Z5E Functions

Face Detection

Face Detection is a software application that automatically captures faces from within a digital image or a video frame from a video source. Dahua cameras use advanced deep learning algorithms and are trained by a large number of face data sources, enabling the camera to locate faces quickly and accurately from the video source and capture facial images.

Face Attributes

Through the use of deep learning algorithms to analyze facial images, Dahua cameras can extract six facial attributes from each frame, including Age, Gender,Expression(Jolly/Surprise/Normal/Rage/Sad/Disgusted/ Confused/Frightened), Glasses,Mouth Mask, Moustache & Beard. Customers can acquire data of interest via face attributes statistics.

Perimeter Protection

Perimeter Protection functions significantly improved accuracy. Perimeter Protection reduces false alarms and decreases pixel count requirements for object detection. Perimeter Protection features custom tripwires based on object type for automation in limited access areas such as pedestrian or vehicle-only zones. This combination of advanced AI analytics and real-time alerts to a desktop or to a mobile client reduces system requirements and resources resulting in greater surveillance system efficiency.

People Counting

People Counting function uses advanced image processing technology to capture depth information from within images. The camera pairs this information with deep learning algorithms to analyze and detect human bodies and track target objects in real time. The camera provides statistics for separate individuals’ entrance and exit with up to 95% counting accuracy.

Metadata

Metadata is feature attribute information extracted from a target object which can be used for data retrieval. face detection camera can extract six facial attributes and output the metadata for analysis.

ePoE technology

The ePoE technology, designed internally, adopts advanced 2D-PAM3 coding modulation from physical layer, and realizes full duplex transmission over 800 meters at the speed of 10Mbps, or 300 meters at the speed of 100Mbps via Cat 5 or coaxial cable media. Besides, it supports PoE and PoC power supply technology which has greatly simplified construction and wiring. Dahua ePoE technology offer a new way to accomplish long distance transmission between IP camera and network switch. It allows more flexible surveillance system design, improves reliability and saves construction and wiring cost.

Protection(IP67, wide voltage)

The camera allows for ±30% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 6KV lightning rating provides effective protection for both the camera and its structure against lightning. Subjected and certified to rigorous dust and immersion tests (IP67) , the camera is the choice for installation in even the most unforgiving environments.

IPC-HDBW5241E-Z5E – DAHUA DH- IPC-HDBW5241E-Z5E 2MP Pro AI IR Vari-focal Dome Network Camera with H.265 ,ePoE technology ,7 mm–35 mm motorized lens IPC-HDBW5241E-Z5E Picture

IPC-HDBW5241E-Z5E – DAHUA DH- IPC-HDBW5241E-Z5E 2MP Pro AI IR Vari-focal Dome Network Camera with H.265 ,ePoE technology ,7 mm–35 mm motorized lens IPC-HDBW5241E-Z5E Dimension

IPC-HDBW5241E-Z5E – DAHUA DH- IPC-HDBW5241E-Z5E 2MP Pro AI IR Vari-focal Dome Network Camera with H.265 ,ePoE technology ,7 mm–35 mm motorized lens IPC-HDBW5241E-Z5E Installation

IPC-HDBW5241E-Z5E – DAHUA DH- IPC-HDBW5241E-Z5E 2MP Pro AI IR Vari-focal Dome Network Camera with H.265 ,ePoE technology ,7 mm–35 mm motorized lens IPC-HDBW5241E-Z5E Specification

Technical Specifications

******************

Camera

Image Sensor

1/2.8” 2Megapixel progressive scan STARVIS™ CMOS

Effective Pixels

1920 (H) × 1080 (V)

RAM/ROM

512 MB/128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3 s–1/100000 s

Minimum Illumination

0.007 Lux@F1.3

IR Distance

Distance up to 80 m (262 ft)

IR On/Off Control

Auto/Manual

IR LEDs

Lens

Lens Type

Motorized

Mount Type

Board-in

Focal Length

7 mm–35 mm

Max. Aperture

F1.3

Angle of View

H: 33°–10°, V: 19°–5°

Optical Zoom

Aperture Type

Auto (HALL)

Close Focus Distance

0.3 m–2.0 m (0.98 ft–6.56 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

131m(430ft)

52m(171ft)

26m(85ft)

13m(43ft)

428m(1404ft)

171m(561ft)

86m(282ft)

43m(141ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan: 0˚–355˚; Tilt: 0˚–65˚; Rotation: 0˚–355˚

Artificial Intelligence

Face Capture

Support face image capture

Face Attributes

Support 6 kinds of face attributes extraction: Age, Gender, Expression (Jolly, Surprise, Normal, Rage, Sad, Disgusted, Confused, Frightened), Glasses, Mouth Mask, Moustache & Beard

Perimeter Protection

Tripwire, Intrusion (Human & Vehicle classification)

People Counting

Support Line crossing/Region/Queueing people counting; Support 4 accesses independent detection, 4 areas independent detection

General Intelligence

Event Trigger

Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access, Storage anomaly

General Intelligence

Object Abandoned/Missing

Video

Compression

H.265+, H.265, H.264+, H.264, H.264B, H.264H,

MJPEG (sub stream)

Streaming Capability

3 Streams

Resolution

1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240)

Frame Rate

Main Stream: 1080P (1 fps–25/30 fps)

Sub Stream: D1 (1 fps–25/30 fps)

Third Stream: 1080P (1 fps–6 fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 32 Kbps–8192 Kbps

H.265: 19 Kbps–7424 Kbps

Day/Night

Auto(ICR)/Color/B/W

BLC Mode

BLC/HLC/WDR (120 dB)

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detetion

Off/On (4 Zone, Rectangle)

Region of Interest

Off/On (4 Zone)

Electronic Image Stabilization (EIS)

Support

Smart IR

Support

Defog

Support

Digital Zoom

N/A

Flip

0°/90°/180°/270°

Mirror

Off/On

Privacy Masking

Off/On (4 Area, Rectangle)

Audio

Compression

G.711a, G.711Mu, G.726, AAC, G.723

Network

Ethernet

RJ-45 (10/100 Base-T)

Protocol

HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP,

FTP, DHCP, DNS, DDNS, PPPoE, IPv4/v6, SNMP, QoS,

UPnP, NTP, ICMP, HTTPS, IGMP, 802.1x

Interoperability

ONVIF (Profile S/Profile G), CGI, Milstone, Genetec, P2P

Streaming Method

Unicast/Multicast

Max. User Access

20 Users

Edge Storage

NAS

FTP

Micro SD card 256 GB

Web Viewer

IE (versions newer than IE8), Chrome,

Firefox, Safari (versions newer than Safari 12)

Management Software

Smart PSS, DSS, P2P

Smart Phone

iOS, Android

Certifications

CE-LVD: EN60950-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B

UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Interface

Video Interface

1 Port (For adjustment only)

Audio Interface

1/1 channel In/Out

RS485

N/A

Alarm

1 channel In: 5mA 5V DC

1 channel Out: 300mA 12V DC

Electrical

Power Supply

DC 12V (±30%), AC 24V (±30%), PoE (802.3af) (Class 0)

Power Consumption

<11.8W

Environmental

Operating Conditions

-30° C to +60° C (-22° F to +140° F)/10%RH–95%RH

Strorage Conditions

-30° C to +60° C (-22° F to +140° F)

Ingress Protection

IP67

Vandal Resistance

IK10

Construction

Casing

Metal

Dimensions

Φ159.0 mm × 117.9 mm (6.26” × 4.64”)

Net Weight

0.95 kg (2.09 lb)

Gross Weight

1.20 kg (2.65 lb)

***

Camera

Image Sensor

1/2.8” 2Megapixel progressive scan STARVIS™ CMOS

Effective Pixels

1920 (H) × 1080 (V)

RAM/ROM

512 MB/128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3 s–1/100000 s

Minimum Illumination

0.0015 Lux@F1.3

IR Distance

Distance up to 80 m (262 ft)

IR On/Off Control

Auto/Manual

IR LEDs

Lens

Lens Type

Motorized vari-focal

Mount Type

Board-in

Focal Length

7 mm–35 mm

Max. Aperture

F1.3

Angle of View

H: 33°–10°, V: 19°–5°

Aperture Type

Auto (HALL)

Close Focus Distance

0.3 m–2.0 m (0.98 ft–6.56 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

131m(430ft)

52m(171ft)

26m(85ft)

13m(43ft)

428m(1404ft)

171m(561ft)

86m(282ft)

43m(141ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan: 0˚–355˚; Tilt: 0˚–65˚; Rotation: 0˚–355˚

Artificial Intelligence

Face Detection

Support face image capture

Face Attributes

Support 6 kinds of face attributes extraction: Age, Gender, Expression (Jolly, Surprise, Normal, Rage, Sad, Disgusted, Confused, Frightened), Glasses, Mouth Mask, Moustache & Beard

Perimeter Protection

Tripwire, intrusion (Recognition of vehicle and people), fast moving, loitering detection, parking detection and people gathering

People Counting

Support Line crossing/Region/Queueing people counting; Support 4 accesses independent detection, 4 areas independent detection

General Intelligence

Event Trigger

Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access, Storage anomaly

General Intelligence

Object Abandoned/Missing

Heat Map

Yes

Video

Compression

H.265,H.264,H.264B,H.264H,

MJPEG (sub stream)

Smart Codec

Yes

Streaming Capability

3 Streams

Resolution

1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240)

Frame Rate

Main Stream: 1080P (1 fps–25/30 fps)

Sub Stream: D1 (1 fps–25/30 fps)

Third Stream: 1080P (1 fps–6 fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 32 Kbps–8192 Kbps

H.265: 19 Kbps–7424 Kbps

Day/Night

Auto(ICR)/Color/B/W

BLC Mode

BLC/HLC/WDR (120 dB)

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

Off/On (4 Zone, Rectangle)

Region of Interest

Off/On (4 Zone)

Electronic Image Stabilization (EIS)

Yes

Smart IR

Yes

Defog

Yes

Flip

0°/90°/180°/270°

Mirror

Off/On

Privacy Masking

Off/On (4 Area, Rectangle)

Audio

Compression

G.711a, G.711Mu, G.726, AAC, G.723

Network

Ethernet

RJ-45 (10/100 Base-T)

Protocol

IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP

Interoperability

ONVIF (Profile S/Profile G/Onvif Profile T), CGI, Milstone, Genetec, P2P

Streaming Method

Unicast/Multicast

Max. User Access

20 Users

Edge Storage

NAS;FTP;SFTP

Micro SD card 256 GB

Web Viewer

IE (versions newer than IE8), Chrome,

Firefox, Safari (versions newer than Safari 12)

Management Software

Smart PSS, DSS, DMSS

Smart Phone

iOS, Android

Certifications

CE-LVD: EN60950-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B

UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Interface

Audio Interface

1/1 channel In/Out

RS485

N/A

Alarm

1 channel In: 5mA 5V DC

1 channel Out: 300mA 12V DC

Electrical

Power Supply

DC 12V (±30%), AC 24V (±30%), PoE (802.3af) (Class 0)

Power Consumption

<11.8W

Environmental

Operating Conditions

-30° C to +60° C (-22° F to +140° F)/1Less than 95% RH

Storage Conditions

-30° C to +60° C (-22° F to +140° F)

Ingress Protection

IP67

Vandal Resistance

IK10

Construction

Casing

Metal

Dimensions

Φ159.0 mm × 117.9 mm (6.26” × 4.64”)

Net Weight

0.95 kg (2.09 lb)

Gross Weight

1.20 kg (2.65 lb)

**********

*******

Icctvzone-wholesales DAHUA IP Cameras Icctvzone IP surveillance Icctvzone-wholesales DAHUA NVR best price of DAHUA camera

*********

More Information
Wired/Wireless	Wired
Outdoor use	Intdoor use, Outdoor use
Focal Type	Motorized Zoom
Day/Night	Low light
Factor	Dome
Max Resolution	2 MP
