IPC-HDBW3241E-Z5 – DAHUA DH-IPC-HDBW3241E-Z5 2MP IR Starlight Dome Network Camera with H.265 IR LEDs Length 100m SD memory,IP67,IK10,PoE+ IPC-HDBW3241E-Z5

In stock

SKU

IPC-HDBW3241E-Z5

Be the first to review this product

$286.80

PAL/NTSC

Brand

Qty

IPC-HDBW3241E-Z5

2MP IR Starlight Dome Network Camera

> 1/2.8” 2Megapixel progressive scan STARVIS™ CMOS
> H.265&H.264 triple-stream encoding
> 25/30fps@1080P(1920×1080)
> WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 7mm ~35mm motorized lens
> Max. IR LEDs Length 100m
> Micro SD memory,IP67,IK10,PoE+

> without Logo,English firmware
> 100% original products manufactured by DAHUA

Special Note:

Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee

Skip to the end of the images gallery

Skip to the beginning of the images gallery

IPC-HDBW3241E-Z5 – DAHUA DH- IPC-HDBW3241E-Z5 2MP IR Starlight Dome Network Camera with H.265 IR LEDs Length 100m SD memory,IP67,IK10,PoE+ IPC-HDBW3241E-Z5 without logo

IPC-HDBW3241E-Z5

2MP IR Starlight Dome Network Camera

> without Logo,English firmware
> 100% original products manufactured by DAHUA

IPC-HDBW3241E-Z5 – DAHUA DH- IPC-HDBW3241E-Z5 2MP IR Starlight Dome Network Camera with H.265 IR LEDs Length 100m SD memory,IP67,IK10,PoE+ IPC-HDBW3241E-Z5 without logo System Overview

Dahua AI series products adopt the most advanced AI technologies, including deep learning algorithms that primarily target people and vehicles, which provides higher flexibility and accuracy for end-users. This enables the Dahua AI series to offer various advanced applications such as Face Recognition, ANPR, Metadata, People Counting, traffic data statistics, etc.The complete lineup of Dahua AI includes network (PTZ) cameras, network video recorders, servers, and platform management products. Beyond seeing the world, the power of AI allows devices to perceive the environment and understand the world in a better way.Powered by deep-learning Artificial Intelligence algorithms, Dahua’s DeepIVS significantly reduces false alarms and decreases pixel count requirements for object detection. DeepIVS features custom tripwires based on object type for automation in limited access areas such as pedestrian or vehicle-only zones. This combination of advanced AI analytics and real-time alerts to a desktop or to a mobile client reduces system requirements and resources resulting in greater surveillance system efficiency.

IPC-HDBW3241E-Z5 – DAHUA DH- IPC-HDBW3241E-Z5 2MP IR Starlight Dome Network Camera with H.265 IR LEDs Length 100m SD memory,IP67,IK10,PoE+ IPC-HDBW3241E-Z5 without logo Functions

Smart Codec (H.265+ & H.264+)

Smart Codec is the optimized implementation of standard video compression (H.265 & H.264) that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart Codec technology reduces bit rate

Starlight Technology

Featuring Dahua’s Starlight Technology, this camera is ideal for applications with challenging lighting conditions. Its low-light performance delivers usable video with minimal ambient light. Even in extreme low-light conditions, Starlight Technology is capable of delivering color images in near complete darkness .

starlight

Wide dynamic range (WDR)

Embeded with industry leading wide dynamic range (WDR) technology, vivid picutures are achieved even in the most intense contrast lighting conditions. For applications with both bright and low lighting conditions that change quickly, True WDR (120dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

IPC-HDBW3241E-Z5 – DAHUA DH- IPC-HDBW3241E-Z5 2MP IR Starlight Dome Network Camera with H.265 IR LEDs Length 100m SD memory,IP67,IK10,PoE+ IPC-HDBW3241E-Z5 without logo Picture

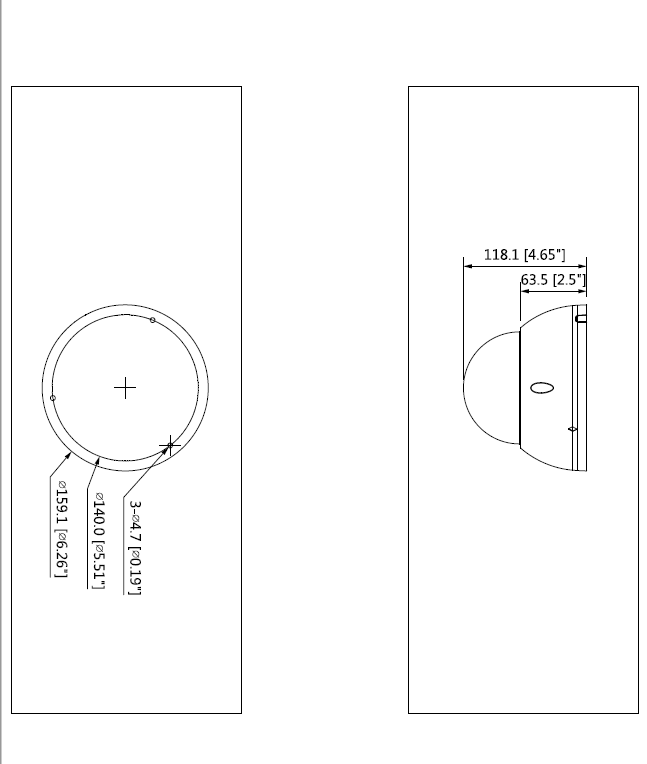

IPC-HDBW3241E-Z5 – DAHUA DH- IPC-HDBW3241E-Z5 2MP IR Starlight Dome Network Camera with H.265 IR LEDs Length 100m SD memory,IP67,IK10,PoE+ IPC-HDBW3241E-Z5 without logo Dimension

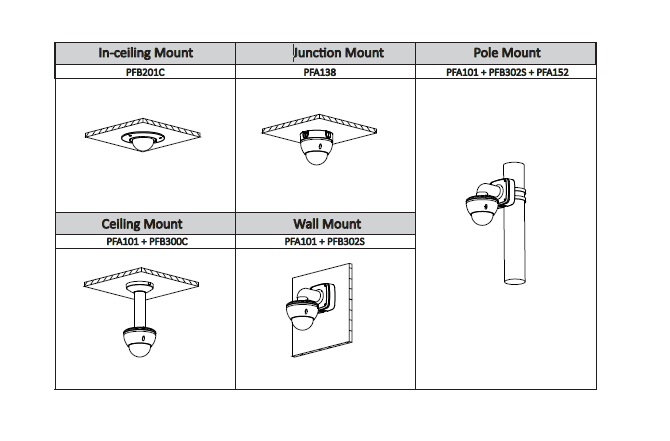

IPC-HDBW3241E-Z5 – DAHUA DH- IPC-HDBW3241E-Z5 2MP IR Starlight Dome Network Camera with H.265 IR LEDs Length 100m SD memory,IP67,IK10,PoE+ IPC-HDBW3241E-Z5 without logo Installation

IPC-HDBW3241E-Z5 – DAHUA DH- IPC-HDBW3241E-Z5 2MP IR Starlight Dome Network Camera with H.265 IR LEDs Length 100m SD memory,IP67,IK10,PoE+ IPC-HDBW3241E-Z5 without logo Specification

Technical Specifications

***

Camera

Image Sensor

1/2.8” 2Megapixel progressive scan CMOS

Effective Pixels

1920(H)x1080(V)

RAM/ROM

1024MB/128MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.005Lux/F1.4 ( Color,1/3s,30IRE)

0.05Lux/F1.4 ( Color,1/30s,30IRE)

0Lux/F1.4(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 100m(328ft)

IR On/Off Control

Auto/ Manual

IR LEDs

Lens

Lens Type

Motorized

Mount Type

Board-in

Focal Length

7mm~35mm

Max. Aperture

F1.4

Angle of View

H:36 ˚ ~ 13 ˚ , V:20 ˚ ~7 ˚

Optical Zoom

Focus Control

Motorized

Close Focus Distance

1.5m(4.9ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

131m(429ft)

52m(170ft)

26m(85ft)

13m(42ft)

428m(1404ft)

171m(561ft)

86m(282ft)

43m(141ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan:0˚~355˚; Tilt:0˚~65˚; Rotation:0˚~355˚

Artificial Intelligence

Deep IVS

Tripwire, Intrusion(Human&Vehicle classification)

Video

Compression

H.265/H.264/H.264B/H.264H/MJPEG(Sub Stream)

Smart Codec

Support H.265+/H.264+

Streaming Capability

3 Streams

Resolution

1080P(1920×1080)/ 1.3M(1280x960)/

720P(1280x720)/ D1(704×576/704x480) /

VGA(640x480)/ CIF(352×288/342x240)

Frame Rate

Main Stream: 1080P(1~25/30fps)

Sub Stream: D1 (1 ~ 25/30fps)

Third Stream: 1080P(1~25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 32~ 8192Kbps

H.265: 16~ 6144Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / WDR(120dB)

White Balance

Auto/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detetion

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization(EIS)

Smart IR

Support

Defog

N/A

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

G.711a/G.711Mu/AAC/ G.726

Network

Ethernet

RJ-45 (10/100/1000Base-T)

Protocol

HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;

FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;

NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;SNMP;TLS

Interoperability

ONVIF Profile S&G, API

Streaming Method

Unicast / Multicast

Max. User Access

10 Users/20 Users

Edge Storage

NAS

Local PC for instant recording

Mirco SD card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

1 Port(For adjustment only)

Audio Interface

1/1 channel In/Out

RS485

N/A

Alarm

1 channel In: 5mA 5VDC

1 channel Out: 300mA 12VDC

Electrical

Power Supply

DC12V(±25%),AC24V(±30%), PoE+ (802.3at)

Power Consumption

DC 12V: 6.9W 14.4W(IR on)

AC 24V: 6.9W 13.5W(IR on)

PoE: 6.4W 13.2W(IR on)

Environmental

Operating Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Strorage Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

IK10

Construction

Casing

Metal

Dimensions

Φ159.1mm×117.9mm(Φ6.26”×4.64”)

Net Weight

0.93kg(2.05lb)

Gross Weight

1.16 kg(2.56lb)

**********

Icctvzone-wholesales DAHUA IP Cameras
Icctvzone IP surveillance
Icctvzone-wholesales DAHUA NVR

best price of DAHUA camera

******

More Information
Wired/Wireless	Wired
Outdoor use	Intdoor use, Outdoor use
Focal Type	Motorized Zoom
Day/Night	D/N IR
Factor	Dome
