IPC-HDBW2831R-ZAS-S2 - DAHUA DH-IPC-HDBW2831R-ZAS-S2 8MP Lite IR Vari-focal Dome Network Camera with 4K Technology Intelligent detection 3.7~11mm motorized lens Intelligent Video Analysis IPC-HDBW2831R-ZAS-S2

In stock

SKU

IPC-HDBW2831R-ZAS-S2

Rating:

100% of 100

1 Review Add Your Review

$173.99

IPC-HDBW2831R-ZAS-S2

8MP Lite IR Vari-focal Dome Network Camera

> 8MP, 1/2.7" CMOS image sensor, low illuminance,

high image definition
> Outputs max. 8MP (3840 × 2160) @15 fps,

and supports 2688×1520 @25/30 fps
> H.265 codec, high compression rate, ultra-low bit rate
> Built-in IR LED, max IR distance: 40 m
> ROI, SMART H.264/H.265, flexible coding,

applicable to various bandwidth and storage environments
> Rotation mode, WDR, 3D DNR, HLC, BLC,

digital watermarking, applicable to various monitoring scenes
> Intelligent detection: Intrusion, tripwire
> Abnormality detection: Motion detection, video tampering,

no SD card, SD card full, SD card error, network disconnection,

IP conflict, illegal ac cess, local alarm,

voltage detection,audio abnormal
> Alarm: 1 in, 1 out; audio: 1 in, 1 out;

supports max. 256 GB Micro SD card
> 12V DC/POE power support
> IP67, IK10 protection

>DAHUA Logo,English firmware
>100% original products manufactured by DAHUA

Special Note:

Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee，Currently in stock, welcome to order.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

IPC-HDBW2831R-ZAS-S2 - DAHUA DH-IPC-HDBW2831R-ZAS-S2 8MP Lite IR Vari-focal Dome Network Camera with 4K Technology Intelligent detection 3.7~11mm motorized lens Intelligent Video Analysis IPC-HDBW2831R-ZAS-S2

IPC-HDBW2831R-ZAS-S2

8MP Lite IR Vari-focal Dome Network Camera

> 8MP, 1/2.7" CMOS image sensor, low illuminance,

high image definition
> Outputs max. 8MP (3840 × 2160) @15 fps,

and supports 2688×1520 @25/30 fps
> H.265 codec, high compression rate, ultra-low bit rate
> Built-in IR LED, max IR distance: 40 m
> ROI, SMART H.264/H.265, flexible coding, applicable to

various bandwidth and storage environments
> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking,

applicable to various monitoring scenes
> Intelligent detection: Intrusion, tripwire
> Abnormality detection: Motion detection, video tampering, no SD card,

SD card full, SD card error, network disconnection, IP conflict,

illegal ac cess, local alarm, voltage detection,audio abnormal
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max.

256 GB Micro SD card
> 12V DC/POE power support
> IP67, IK10 protection

>,English firmware
>100% original products manufactured by DAHUA

IPC-HDBW2831R-ZAS-S2 - DAHUA DH-IPC-HDBW2831R-ZAS-S2 8MP Lite IR Vari-focal Dome Network Camera with 4K Technology Intelligent detection 3.7~11mm motorized lens Intelligent Video Analysis IPC-HDBW2831R-ZAS-S2 System Overview

With upgraded H.265 encoding technology, Dahua Lite series network camera has efficient video encoding capacity, which saves bandwidth and storage space. This camera adopts the latest starlight technology and displays better color image in the condition of low illumination. It supports SD card storage, dust-proof function, waterproof function and vandal-proof function, complying to the standards of IP67 and IK10 (Supported by some select models).

IPC-HDBW2831R-ZAS-S2 - DAHUA DH-IPC-HDBW2831R-ZAS-S2 8MP Lite IR Vari-focal Dome Network Camera with 4K Technology Intelligent detection 3.7~11mm motorized lens Intelligent Video Analysis IPC-HDBW2831R-ZAS-S2 Functions

Smart Codec

With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

WDR

With advanced Wide Dynamic Range (WDR) technology, Dahua network camera provides clear details in the environment of strong brightness contrast. The bright and dark area can get clear video even in high brightness environment or with backlight shadow.

starlight

Starlight

Starlight technology mainly applies to the environment of low illuminance, and it can provide clear colorful video. Even in the environment of ultra-low illuminance, the technology can guarantee the good image effect.

IVS

With advanced video algorithm, Dahua IVS technology supports intelligent functions, such as tripwire and intrusion.

Protection (IP67, IK10, wide voltage)

IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 cm (Impact energy is 20J). Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

IPC-HDBW2831R-ZAS-S2 - DAHUA DH-IPC-HDBW2831R-ZAS-S2 8MP Lite IR Vari-focal Dome Network Camera with 4K Technology Intelligent detection 3.7~11mm motorized lens Intelligent Video Analysis IPC-HDBW2831R-ZAS-S2 Picture

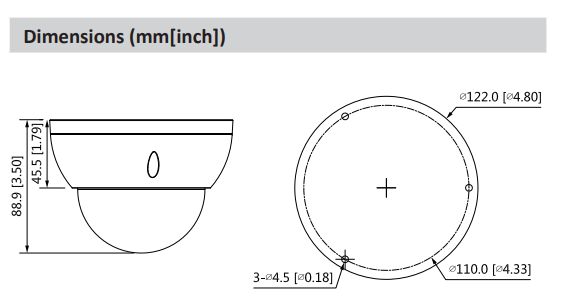

IPC-HDBW2831R-ZAS-S2 - DAHUA DH-IPC-HDBW2831R-ZAS-S2 8MP Lite IR Vari-focal Dome Network Camera with 4K Technology Intelligent detection 3.7~11mm motorized lens Intelligent Video Analysis IPC-HDBW2831R-ZAS-S2 Dimension

>,English firmware
>100% original products manufactured by DAHUA - See more at: http://www.cctv-mall.com/dahua-ipc-hfw81200e-z-dahua-ipc-hfw81200e-z-4k-ultra-hd-12-megapixel-ultra-hd-network-bullet-camera-with-4-1mm-16-4mm-motorized-lens-and-poe-ip67#sthash.PYy4AcYd.dpufIPC-HFW8331E-Z DAHUA IPC-HFW8331E-Z 3Megapixel Full HD WDR Smart Network Motorized IR Camera ApplicationDAHUA IPC-HFW8331E-Z - DAHUA IPC-HFW8331E-Z 3Megapixel Full HD WDR Smart Network Motorized IR Camera DAHUA IPC-B1B40

IPC-HDBW2831R-ZAS-S2 - DAHUA DH-IPC-HDBW2831R-ZAS-S2 8MP Lite IR Vari-focal Dome Network Camera with 4K Technology Intelligent detection 3.7~11mm motorized lens Intelligent Video Analysis IPC-HDBW2831R-ZAS-S2 Installation

DAHUA DH-IPC-HDBW2231R-ZS-S2

IPC-HDBW2831R-ZAS-S2 - DAHUA DH-IPC-HDBW2831R-ZAS-S2 8MP Lite IR Vari-focal Dome Network Camera with 4K Technology Intelligent detection 3.7~11mm motorized lens Intelligent Video Analysis IPC-HDBW2831R-ZAS-S2 Specifications

DH-IPC-HFW83A1EN-Z 3MP Starlight IR Vari-focal Bullet Network Camera Specifications

Technical Specifications

*******

Camera

Image Sensor

1/2.7” 8Megapixel progressive CMOS

Effective Pixels

3840 (H) × 2160 (V)

ROM

128 MB

RAM

256 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.008 Lux@F1.5

IR Distance

40 m (131.2 ft)

IR On/Off Control

Auto/Manual

IR LEDs Number

Pan/Tilt/Rotation Range

Pan: 0°–355°

Tilt: 0°–67°

Rotation: 0°–355°

Lens

Lens Type

Motorized vari-focal

Mount Type

φ14

Focal Length

2.7 mm–13.5 mm

Max. Aperture

F1.5

Field of View

Pan: 113°–31°

Tilt: 58°–17°

Diagonal: 138°–36°

Iris Type

Fixed

Close Focus Distance

0.8m–0.8m (2.62 ft–2.62 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

85.3 m

(279.9 ft)

34.1 m

(111.9 ft)

17 m

(55.8 ft)

8.5 m

(27.9 ft)

280 m

(918.6 ft)

112 m

(367.5 ft)

56 m

(183.7 ft)

28 m

(91.9 ft)

Smart Event

General IVS Analytics

Tripwire; intrusion

Video

Video Compression

H.265; H.264; H.264B; MJPEG

Smart Codec

Yes

Video Frame Rate

Main stream:

3840 × 2160 (1 fps–15 fps)

2688 × 1520 (1 fps–25/30 fps)

Sub stream:

704 × 576 (1 fps–25 fps)

704 × 480 (1 fps–30 fps)

Stream Capability

2 streams

Resolution

3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2592 × 1944 (2592 × 1944); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 Kbps–8192 Kbps

H.265: 12 Kbps–8192 Kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest(RoI)

Yes (4 areas)

Smart IR

Yes

Image Rotation

0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower.)

Mirror

Yes

Privacy Masking

4 areas

Audio

Audio Compression

G.711a; G.711Mu; G.726; AAC

Network

RJ-45 (10/100 Base-T)

Protocol

IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour

Interoperability

ONVIF(Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec

User/Host

Edge Storage

Dahua Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS

Browser

Chrome

Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

IOS; Android

Certification

Certifications

CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Port

Audio Input

1 channel (RAC port)

Audio Output

1 channel (RAC port)

Alarm Input

1 channel In: 5mA 5V DC

Alarm Output

1 channel Out: 300mA 12V DC

Power

Power Supply

12V DC/PoE (802.3af)

Power Consumption

< 7.4W

Environment

Operating Conditions

–30°C to +60°C (–22°F to +140°F)/less than ≤ 95% RH

Storage Temperature

–40°C to +60°C (–40°F to +140°F)

Protection Grade

IP67; IK10

Structure

Casing

Metal

Dimensions

Φ122 mm × 88.9 mm (Φ4.80" × 3.50")

Net Weight

0.47 kg (1.1 lb)

Gross Weight

0.63 kg (1.4 lb)

**********

*****

***********

Icctvzone-wholesales DAHUA IP Cameras
Icctvzone IP surveillance
Icctvzone-wholesales DAHUA NVR

best price of DAHUA camera

***

******************

More Information
Wired/Wireless	Wired
Outdoor use	Intdoor use, Outdoor use
Focal Type	Motorized Zoom, Vari-Focal
Day/Night	Low light, Standard
Factor	Bullet
Max Resolution	8 MP
