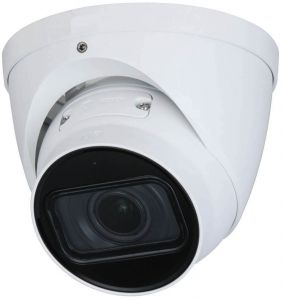

IPC-HDBW2231R-ZAS-S2 – DAHUA DH-IPC-HDBW2231R-ZAS-S2 2MP WDR IR Dome Network Camera with Starlight 12V DC/PoE 2.7mm–13.5mm Motorized vari-focal lens IPC-HDBW2231R-ZAS-S2

In stock

SKU

IPC-HDBW2231R-ZAS-S2

Be the first to review this product

$89.79

PAL/NTSC

Brand

Qty

IPC-HDBW2231R-ZAS-S2

2MP WDR IR Dome Network Camera

> 2MP, 1/2.8” CMOS image sensor, low illuminance,

high image definition

> Outputs 2MP (1920 × 1080)@25/30 fps

> H.265 codec, high compression rate, ultra-low bit rate

> Built-in IR LED, max IR distance: 40 m

> ROI, SMART H.264/H.265, flexible coding, applicable to

various bandwidth and storage environments

> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking,

applicable to various monitoring scenes

> Intelligent detection: Intrusion, tripwire

> Abnormality detection: Motion detection, video tampering,

no SD card, SD card full, SD card error, network disconnected,

IP conflict, illegal access, voltage detection

> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max.

256 GB Micro SD card

> 12V DC/PoE power support

> IP67, IK10 protection grade

> without Logo,English firmware

> 100% original products manufactured by DAHUA

The delivery time is 25 working days if no stock.

Special Note:

Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee

Skip to the end of the images gallery

Skip to the beginning of the images gallery

IPC-HDBW2231R-ZAS-S2 – DAHUA DH-IPC-HDBW2231R-ZAS-S2 2MP WDR IR Dome Network Camera with Starlight 12V DC/PoE 2.7mm–13.5mm Motorized vari-focal lens IPC-HDBW2231R-ZAS-S2

IPC-HDBW2231R-ZAS-S2

2MP WDR IR Dome Network Camera

> 2MP, 1/2.8” CMOS image sensor, low illuminance,

high image definition

> Outputs 2MP (1920 × 1080)@25/30 fps

> H.265 codec, high compression rate, ultra-low bit rate

> Built-in IR LED, max IR distance: 40 m

> ROI, SMART H.264/H.265, flexible coding, applicable

to various bandwidth and storage environments

> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking,

applicable to various monitoring scenes

> Intelligent detection: Intrusion, tripwire

> Abnormality detection: Motion detection, video tampering,

no SD card, SD card full, SD card error, network disconnected,

IP conflict, illegal access, voltage detection

> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 GB

Micro SD card

> 12V DC/PoE power support

> IP67, IK10 protection grade

> ,English firmware

> 100% original products manufactured by DAHUA

IPC-HDBW2531R-ZS – DAHUA DH-IPC-HDBW2531R-ZS 5MP WDR IR Dome Network Camera with IP67, IK10, PoE 2.7~13.5mm varifocal lens IR LEDs Length 30m IPC-HDBW2531R-ZS System Overview

With updraded H.265 encoding technology, Dahua Lite series camera has efficient video encoding capacity, which saves bandwidth and storage space. This camera adopts the latest starlight technology and displays better colorful image in the environment of low illumination. It supports SD card storage, waterproof function, dust-proof function and tamper-proof function, complying to the standards of IP67 and IK10.

DAHUA Smart Shop solution

IPC-HDBW2531R-ZS – DAHUA DH-IPC-HDBW2531R-ZS 5MP WDR IR Dome Network Camera with IP67, IK10, PoE 2.7~13.5mm varifocal lens IR LEDs Length 30m IPC-HDBW2531R-ZS Functions

Smart(H.265+ & H.264+)

Adopting advanced algorithm of auto stream control according to the environment, Dahua smart encoding technology realizes the higher efficiency than (H.265 & H.264 ), providing high-quality video, and reducing the cost of storage and transmission.

Wide dynamic range (WDR)

adopts advanced Wide Dynamic Range (WDR) technology. You can get clear details in the environment of strong brightness contrast. In high brightness and back- light environment, bright region and dark region with strong light source, you can also get clear images. 2Mp IP67 H.265+ Vandal-proof

Starlight

IVS Starlight Dahua Starlight technology mainly applies to the environment of low illumination, and it can provide clear colorful video. Even in the environment of min. illumination, the technology can guarantee the good image effect.

Intelligent Video Analysis (IVS)

With advanced video algorithm, camera supports intelligent detection, such as tripwire and intrusion and so on.

Protection (IP67, IK10, wide voltage) IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 m (Impact energy is 20J). Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

IPC-HDBW2231R-ZAS-S2 – DAHUA DH-IPC-HDBW2231R-ZAS-S2 2MP WDR IR Dome Network Camera with Starlight 12V DC/PoE 2.7mm–13.5mm Motorized vari-focal lens IPC-HDBW2231R-ZAS-S2 Picture

IPC-HDBW2231R-ZAS-S2 – DAHUA DH-IPC-HDBW2231R-ZAS-S2 2MP WDR IR Dome Network Camera with Starlight 12V DC/PoE 2.7mm–13.5mm Motorized vari-focal lens IPC-HDBW2231R-ZAS-S2 Dimension

IPC-HDBW2231R-ZAS-S2 – DAHUA DH-IPC-HDBW2231R-ZAS-S2 2MP WDR IR Dome Network Camera with Starlight 12V DC/PoE 2.7mm–13.5mm Motorized vari-focal lens IPC-HDBW2231R-ZAS-S2 Installation

IPC-HDBW2231R-ZAS-S2 – DAHUA DH-IPC-HDBW2231R-ZAS-S2 2MP WDR IR Dome Network Camera with Starlight 12V DC/PoE 2.7mm–13.5mm Motorized vari-focal lens IPC-HDBW2231R-ZAS-S2 Specification

Technical Specifications

*****

Camera

Image Sensor

1/2.8” 2Megapixel progressive CMOS

Effective Pixels

1920 (H) × 1080 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100000 s

Min. Illumination

0.002Lux @ F1.5

IR Distance

40 m (131.23 ft)

IR On/Off Control

Auto/Manual

IR LEDs Number

Pan/Tilt/Rotation Range

Horizonal: 0°–355°
Vertical: 0°–75°
Rotation: 0°–355°

Lens

Lens Type

Motorized vari-focal

Mount Type

φ14

Focal Length

2.7mm–13.5mm

Max. Aperture

F1.5

Field of View

Horizonal: 109°–28°
Vertical: 57°–16°
Diagonal: 131°–33°

Iris Type

Fixed aperture

Close Focus Distance

0.8 m–0.8 m (2.62 ft–2.62 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

44.1 m
(144.69 ft)

17.6 m
(57.74 ft)

8.8 m
(28.87 ft)

4.4 m
(14.44 ft)

151.7 m
(497.70 ft)

60.6 m
(198.82 ft)

30.3 m
(99.41 ft)

15.1 m
(49.65 ft)

Smart Event

General IVS Analytics

Intrusion; tripwire

Video

Video Compression

H.265; H.264; H.264B; MJPEG

Smart Codec

Yes

Video Frame Rate

Main stream:

1920 × 1080 (1 fps-25/30 fps)

Sub stream:

704 × 576 (1 fps-25 fps)

704 × 480 (1 fps-30 fps)

Stream Capability

2 streams

Resolution

1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 ×720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest(RoI)

Yes (4 areas)

Smart IR

Yes

Image Rotation

0°/90°/180°/270° (Supports 90°/270° with 1080p resolution.)

Mirror

Yes

Privacy Masking

4 areas

Audio

Audio Compression

G.711a; G.711Mu; G.726; AAC

Network

RJ-45 (10/100 Base-T)

Protocol

IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour

Interoperability

ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec

User/Host

Edge Storage

Dahua Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS

Browser

Chrome

Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

IOS; Android

Certification

Certifications

CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Port

Audio Input

1 (RCA port)

Audio Output

1 (RCA port)

Alarm Input

1 channel In: 5mA 3V–5VDC

Alarm Output

1 channel Out: 300mA 12VDC

Power

Power Supply

12V DC/PoE (802.3af)

Power Consumption

< 6.4W

Environment

Operating Conditions

-30°C to +60°C (-22°F to +140°F)/less than ≤ 95%

Storage Temperature

-40°C to +60°C (-40°F to +140°F)

Protection Grade

IP67; IK10

Structure

Casing

Metal

Dimensions

Φ122 mm × 88.9 mm (Φ4.80" × 3.50")

Net Weight

0.47 kg (1.04 lb)

Gross Weight

0.63 kg (1.39 lb)

****

********

***

Icctvzone-wholesales DAHUA IP Cameras
Icctvzone IP surveillance
Icctvzone-wholesales DAHUA NVR

best price of DAHUA camera

******

**********

More Information
Wired/Wireless	Wired
Outdoor use	Intdoor use, Outdoor use
Focal Type	Motorized Zoom
Day/Night	Low light
Factor	Dome
Max Resolution	2 MP
