IPC-HDB4231C-AS - DAHUA DH-IPC-HDB4231C-AS 2MP Mini-Dome Network Camera with Smart detection supported Built-in Mic Starlight Technology Intelligent Video System (IVS) IPC-HDB4231C-AS

IPC-HDB4231C-AS

2MP Mini-Dome Network Camera

IPC-HDB4231C-AS - DAHUA DH-IPC-HDB4231C-AS 2MP Mini-Dome Network Camera with Smart detection supported Built-in Mic Starlight Technology Intelligent Video System (IVS) IPC-HDB4231C-AS SYSTEM OVERVIEW

Eco-savvy products by upgrading H.265 encoding technology, bringing high efficient video compression. It saves bandwidth and storage , energy-saving design to enhance the monitoring system . Meanwhile, the series offers features such as starlight , Smart IR technology , intelligent image analysis techniques. It provides excellent image quality and intelligent and efficient event reminders . This series provides IP67 weatherproof and IK10 vandal-proof protection feature. Give customers more value

IPC-HDB4231C-AS - DAHUA DH-IPC-HDB4231C-AS 2MP Mini-Dome Network Camera with Smart detection supported Built-in Mic Starlight Technology Intelligent Video System (IVS) IPC-HDB4231C-AS FUNCTIONS

Starlight Technology

Featuring Dahua’s Starlight Technology, this camera is ideal for applications with challenging lighting conditions. Its low-light performance delivers usable video with minimal ambient light. Even in extreme low-light conditions, Starlight Technology is capable of delivering color images in near complete darkness (0.009 lux).

Wide Dynamic Range (WDR)

The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, true WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

Intelligent Video analysis (IVS)

IVS is a built-in video analytic algorithm that delivers intelligent functions to monitor a scene for Tripwire violations, intrusion detection, and abandoned or missing objects. A camera with IVS quickly and accurately responds to monitoring events in a specific area. In addition to scene analytics, the camera supports face detection to quickly capture a face and upload the image to a server. The camera also offers tamper detection by recognizing a dramatic scene change and generating a warning message to inspect the camera.

Environmental

With a temperature range of -10 °C to +45 °C (14 °F to +113 °F), the camera is designed for soft indoor temperature environments.

Protection

Supporting ±30% input voltage tolerance, this camera suits even the most unstable conditions for outdoor applications. Its 6KV lightning rating provides protectection against the camera and its structure from the effects of lightning. IK08 compliance enables the camera to sustain the equivalent of 14 kg (30lbs) force.

Smart H.265+

Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.

 HEVC (H.265)

H.265 ITU-T VCEG is a new video coding standard. H.265 Following standard developed around the existing video coding standard H.264 , some retain the original technology , while some of the relevant technology to improve the new technology uses advanced technology to improve the relationship between the code stream , encoding quality , and the delay between algorithm complexity , optimize settings specific contents include : Improve compression efficiency , improve the robustness and error recovery capabilities, real-time to reduce the delay, reduce channel acquisition time and a random access delay , reduce complexity , etc

IPC-HDB4231C-AS - DAHUA DH-IPC-HDB4231C-AS 2MP Mini-Dome Network Camera with Smart detection supported Built-in Mic Starlight Technology Intelligent Video System (IVS) IPC-HDB4231C-AS PICTURE

IPC-HDB4231C-AS - DAHUA DH-IPC-HDB4231C-AS 2MP Mini-Dome Network Camera with Smart detection supported Built-in Mic Starlight Technology Intelligent Video System (IVS) IPC-HDB4231C-AS  DIMENSIONS

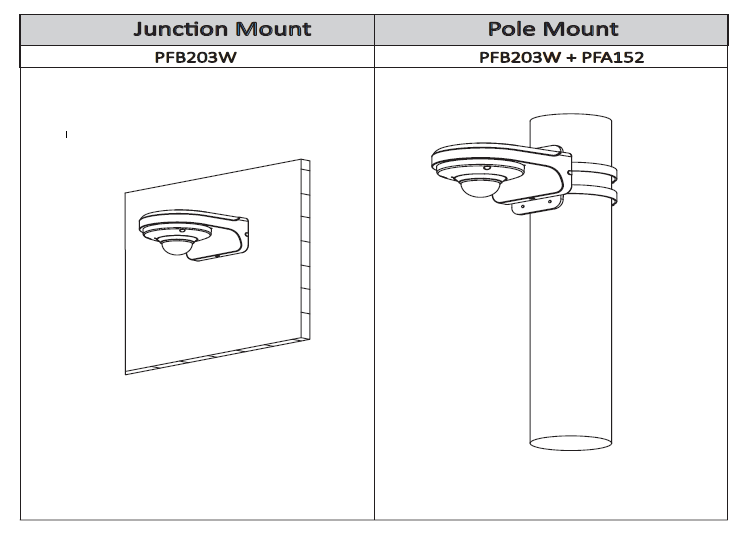

IPC-HDB4231C-AS - DAHUA DH-IPC-HDB4231C-AS 2MP Mini-Dome Network Camera with Smart detection supported Built-in Mic Starlight Technology Intelligent Video System (IVS) IPC-HDB4231C-AS  INSTALLATION
