IPC-HCBW8442 - DAHUA DH-IPC-HCBW8442 4MP WDR IR Corner Network Camera With Distortion Correction Perimeter Protection IPC-HCBW8442

IPC-HCBW8442

4MP WDR IR Corner Network Camera

> 1/1.8” 4Megapixel progressive scan CMOS
> H.265 & H.264 triple-stream encoding
> 25/30 fps@2688 × 1520

> WDR (140 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC

> 2.5 mm fixed lens, distortion correction

> 1/1 Alarm in/out, 1/1 audio in/out
> Max. IR LEDs Length 10 m
> IP67 and IK10+50J protection

IPC-HCBW8442 - DAHUA DH-IPC-HCBW8442 4MP WDR IR Corner Network Camera With Distortion Correction Perimeter Protection IPC-HCBW8442 System Overview

 WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

Equipped with advanced HiSilicon chip and fast lens, Dahua WizMind Dual-Lens series network camera provides excellent image effects. With advanced deep learning algorithm, the camera supports various intelligent functions, such as people counting, queue management, stereo analysis, perimeter protection and face detection, which provides better intelligent apllication solutions based on scenes

IPC-HCBW8442 - DAHUA DH-IPC-HCBW8442 4MP WDR IR Corner Network Camera With Distortion Correction Perimeter Protection IPC-HCBW8442 Functions

Starlight

Starlight technology mainly applies to the environment of low illuminance, and it can provide clear colorful video. Even in the environment of ultra-low illuminance, the technology can guarantee the good image effect.

Invisible IR LED Illuminator

( 940 nm ) With 940 nm IR LED, the IR LED Illuminator of the camera is invisible to naked eyes

Distortion Correction

With advanced distortion correction algorithm, Dahua Distortion Correction corrects the image distortion in both horizontal and vertical directions to be consistent with the actual situation..

Perimeter Protection

With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.

Smart H.265+ & Smart H.264+

With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Perimeter Protection

With deep learning algorithm, Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.

Protection (IP67, wide voltage)

IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 cm (Impact energy is 20J). Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

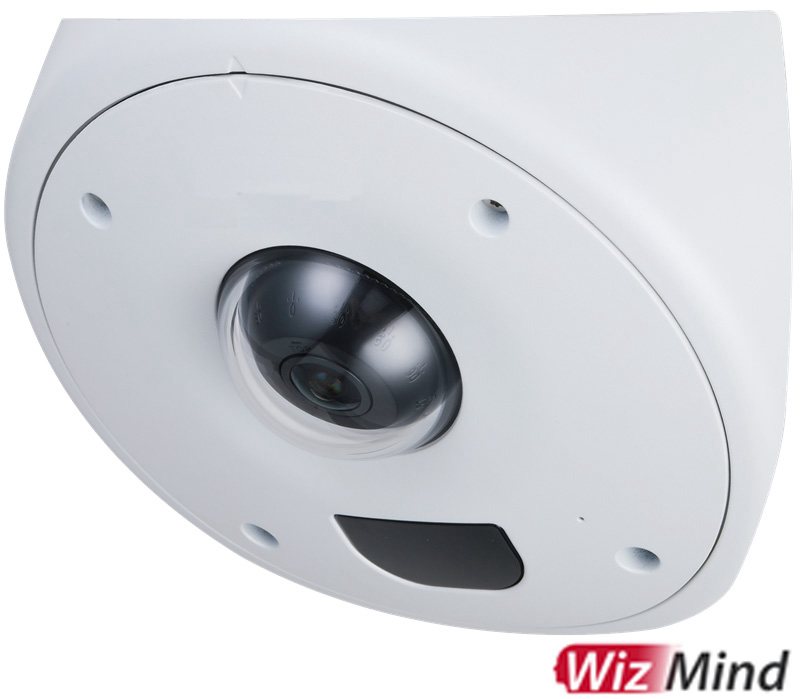

IPC-HCBW8442 - DAHUA DH-IPC-HCBW8442 4MP WDR IR Corner Network Camera With Distortion Correction Perimeter Protection IPC-HCBW8442 Picture

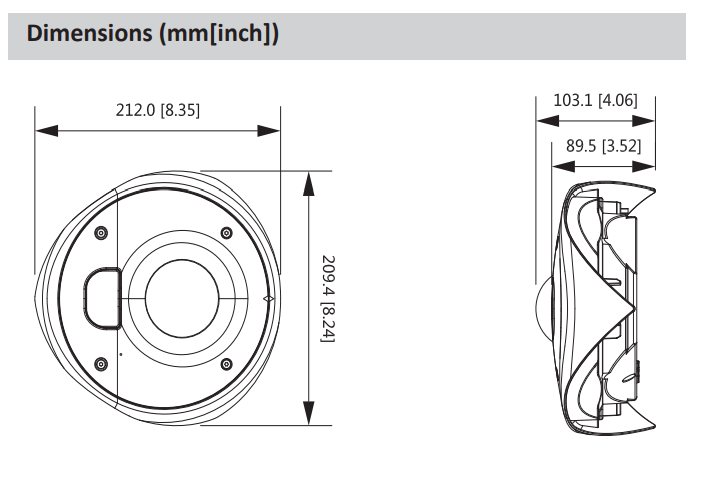

IPC-HCBW8442 - DAHUA DH-IPC-HCBW8442 4MP WDR IR Corner Network Camera With Distortion Correction Perimeter Protection IPC-HCBW8442  Dimensions

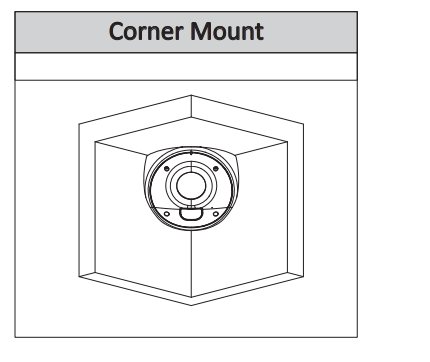

IPC-HCBW8442 - DAHUA DH-IPC-HCBW8442 4MP WDR IR Corner Network Camera With Distortion Correction Perimeter Protection IPC-HCBW8442  Installation
