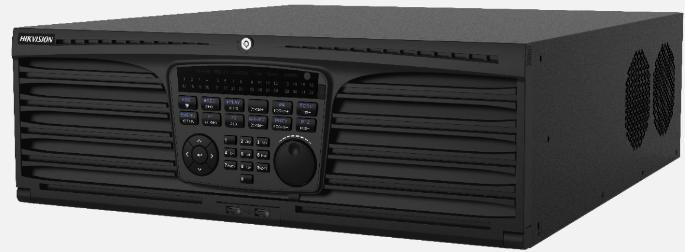

Hikvision DS-9632NI-I16 - Hikvision DS-9632NI-I16 32-ch 3U 4K NVR with 2 HDMI (different source) and 2 VGA (different source) interfaces TECHNICAL SPECIFICATIONS

***********

Video And Audio

IP Video Input32-ch

HDMI 1 OutputVGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,HDMI1: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

HDMI 2 Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA OutputHDMI,VGA

CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Incoming Bandwidth320 Mbps or 200 Mbps (when RAID is enabled),256 Mbps, or 200 Mbps (when RAID is enabled)

Audio Output2-ch, RCA (Linear, 1 KΩ)

Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

Decoding FormatH.265+,H.265,H.264+,H.264

Decoding Capability16-ch @ 1080p

Synchronous Playback16-ch

Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF /2CIF/CIF/QCIF

Network

Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

InterfaceN/A

RAID

RAID TypeYes

Auxiliary Interface

SATA16 SATA interfaces

ESATA1 eSATA interface

CapacityUp to 10TB capacity for each HDD

Serial InterfaceRS-232; RS-485; Keyboard

USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

Alarm In/Out16/8

General

Power Supply100 to 240 VAC, 50 to 60 Hz 300 W

Consumption≤ 45 W

Working Temperature-10 °C to 55 °C (14 °F to 131 °F)

Working Humidity10 to 90 %

Chassis3U

Dimension (W × D × H)445 × 496 × 146 mm (17.5" × 19.5" × 5.7")

Weight≤ 12.5 kg (27.6 lb)

**********

*
