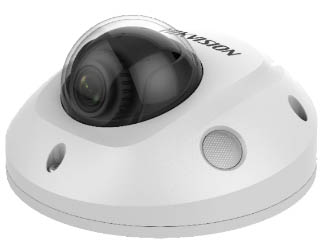

HIKVISION DS-2CD2563G0-I 6 MP Outdoor WDR Fixed Mini Dome Network Camera with Clear imaging against strong back light due to 120 dB true WDR technologyTechnical Specifications

*************

Camera

Image Sensor1/2.9" Progressive Scan CMOS

Min. IlluminationColor: 0.028 lux @(F2.0, AGC ON), 0 lux with IR

Shutter Speed1/3 s to 1/100,000 s

Slow ShutterYes

Wide Dynamic Range120 dB

Day & NightIR Cut Filter

Angle AdjustmentPan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

Lens Type2.8, 4, 6 mm

FOV2.8 mm, horizontal FOV: 97°, vertical FOV: 67°, diagonal fov: 121° 4 mm, horizontal FOV: 78°, vertical FOV: 53°, diagonal FOV: 98° 6 mm, horizontal FOV: 60°, vertical FOV: 41°, diagonal FOV: 76°

ApertureF2.0

Lens MountM12

Illuminator

IR RangeUp to 10 m

Wavelength850 nm

Video

Max. Resolution3072 × 2048

Main Stream50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656) 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656) 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-Stream50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)

Third Stream50Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240)

Video CompressionMain stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264

Video Bit Rate32 Kbps to 16 Mbps

H.264 TypeMain Profile/High Profile

H.265 TypeMain Profile

H.264+Main stream supports

H.265+Main stream supports

Scalable Video Coding (SVC)Support H.264 and H.265 encoding

Audio

Environment Noise FilteringYes

Audio Sampling Rate16 kHz, 32kHz, 44.1kHz, 48kHz

Audio CompressionG722.1/G711ulaw/G711alaw/G726/MP2L2/PCM

Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Network

Simultaneous Live ViewUp to 6 channels

APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome

ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS

User/HostUp to 32 users. 3 levels: administrator, operator and user

SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2

Network StorageSupport Micro SD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR

ClientWired network: Hik-Connect, iVMS-4200, Hik-Central Wi-Fi: iVMS-4200, Hik-Central

Web BrowserPlug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+

Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, illegal login

Wi-Fi

Encryption ModeWPA, WPA2

Wi-Fi ProtocolIEEE 802.11b/g/n

Frequency Range2.412 GHz to 2.4835 GHz

Channel Bandwidth20 MHz/40 MHz

Transfer Rate11b: 11 Mbps 11g: 54 Mbps 11n: up to 150 Mbps

Wireless RangeUp to 50 m (The performance varies based on actual environment)


Day/Night SwitchAuto/Schedule/Day/Night/Triggered by Alarm In (-S)

DNR3D DNR

Image EnhancementBLC/3D DNR/HLC

Image SettingsRotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser

Interface

Audio2 inputs: line in or mic in (built-in microphone) 1 output: line out, mono sound, terminal block

Alarm1 Input: Alarm in 1 Output: Alarm out (max. 12 VDC, 30 mA), terminal block

On-Board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128G

Hardware ResetYes

Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

Event

Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Smart EventLine crossing detection, intrusion detection, face detection

Face DetectionYes

General

Linkage MethodTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email

Firmware VersionV5.6.5

Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening

Startup And Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)

Power Supply12 VDC ± 25%, PoE (802.3af, class 3)

Power Consumption And Current12 VDC, 0.7 A, max. 8.5 W, Φ 5.5mm coaxial plug power,PoE (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 10 W

Camera MaterialFront cover: plastic , Bottom base: metal

Camera DimensionØ120 mm × 67.4 mm (Ø4.7" × 2.7")

Camera WeightCamera: Approx. 400 g (0.9 lb.)

Approval

ProtectionIngress protection: IP66 (IEC 60529-2013), IK08 (IEC 60529-2013)

******************

*

**

****
